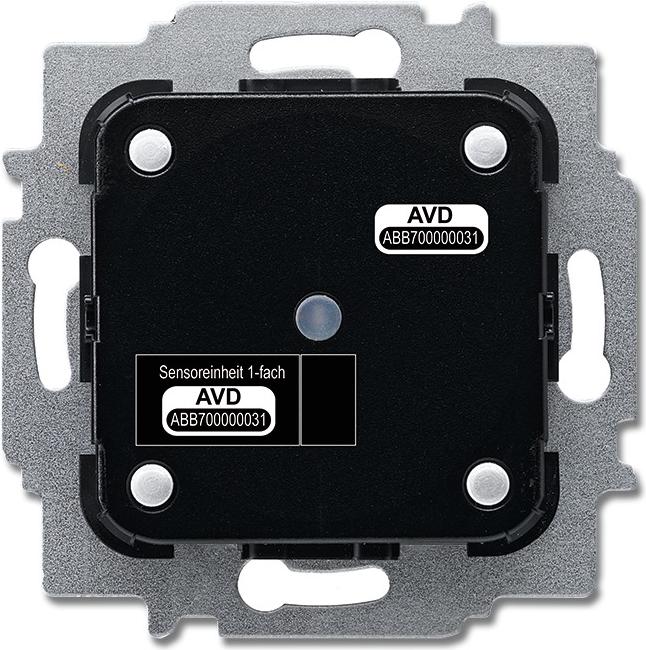

Busch-Jaeger sensor unit 1-fold 6221/1.0

Manufacturer: Busch-Jaeger
Designation: Sensor unit 1-fold
Type: 6221/1.0
Bus system KNX: No
Bus system KNX radio: Yes
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: free@home
Radio bidirectional: Yes
Mounting type: Flush-mounted
With bus coupling: Yes
Number of actuating points: 2
Number of push-buttons: 1
With LED display: Yes
Protection type (IP): IP20
Min. depth of device box: 20 mm

Busch-Jaeger sensor unit 1-gang 6221/1.0: Further details for sending switching, push-button, dimming, and blind commands to a Busch-free@home® actuator. For contacting rocker 1-fold 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx, and 6234-10-xxx. The bus connection is made via the enclosed bus terminal. Programming only with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalogue. EAN: 4011395179956.
