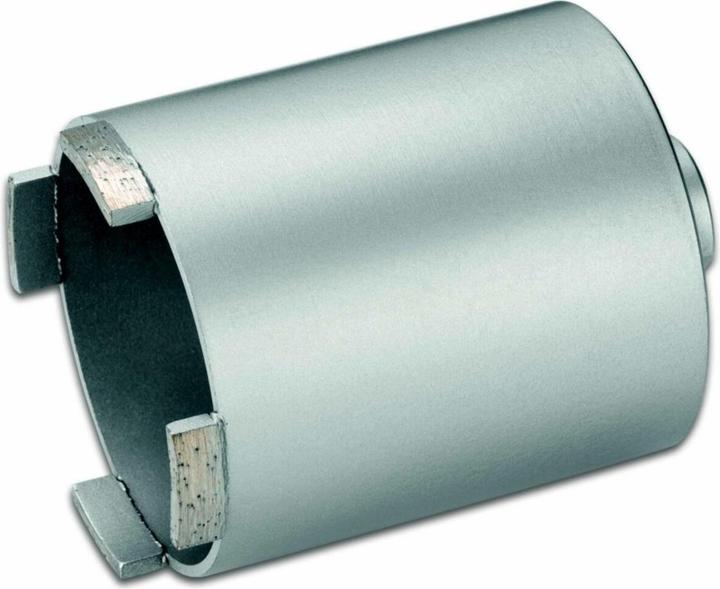

Cimco diamond core bit 208796

Manufacturer: Cimco
Designation: Diamond core bit
Type: 208796
Nominal size: 82 mm
With center drill: No
Mounting system: Other
Thread type: Other
Size mounting system: M16
Working depth: 90 mm
Coating: Diamond
Suitable for wet use: Yes
Suitable for impact use: No
With wax cooling: No
Suitable for dust extraction: No
With adapter for dust extraction: No

Cimco diamond core bit 208796 is designed for dry and wet cutting, compatible with all commercially available diamond dry drilling machines (M16 receptacle). Speed recommendation is approximately 2000 rpm, featuring a design with sintered or lasered diamond studs. The diamond segments are made of diamond grain bond (chrome bronze/cobalt bronze). The drill bits include a head slot for cooling, with a base body hardness of 38 HRC. The design with lasered diamond studs is made of diamond grain bond (cobalt bronze), with a working length of 90 mm. Suitable for roof tiles (medium hard), masonry stone, and sand-lime stone (soft/high density/hard). Diameter: 82 mm.
