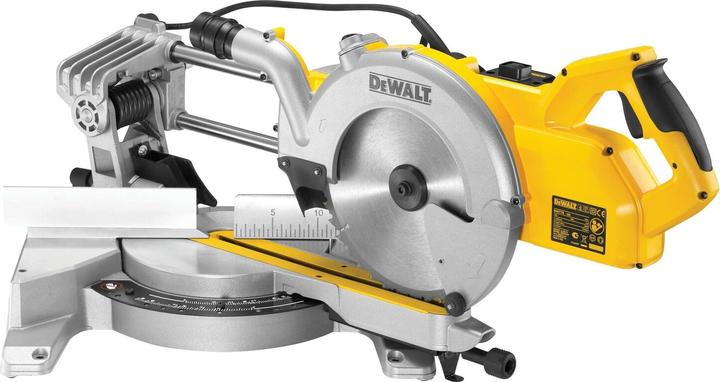

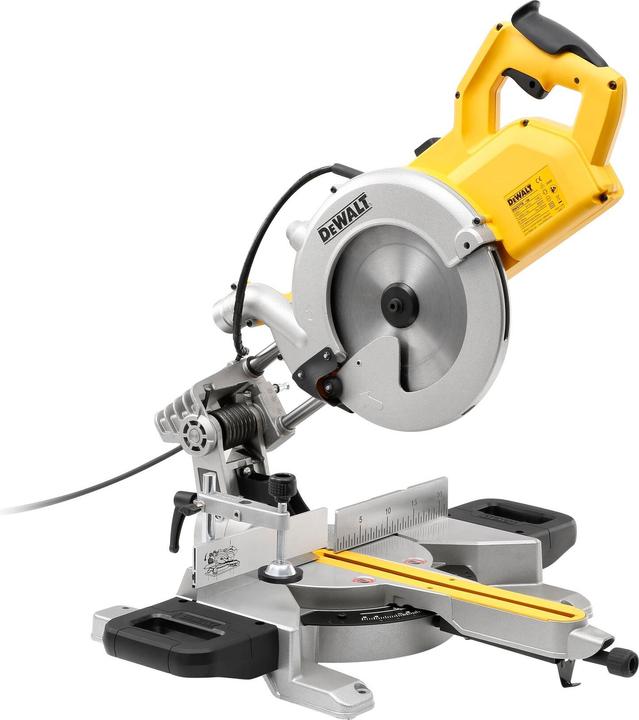

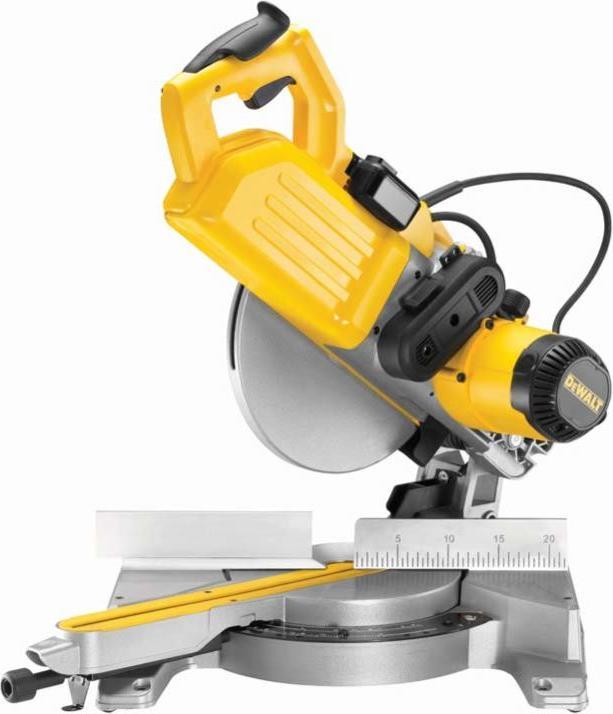

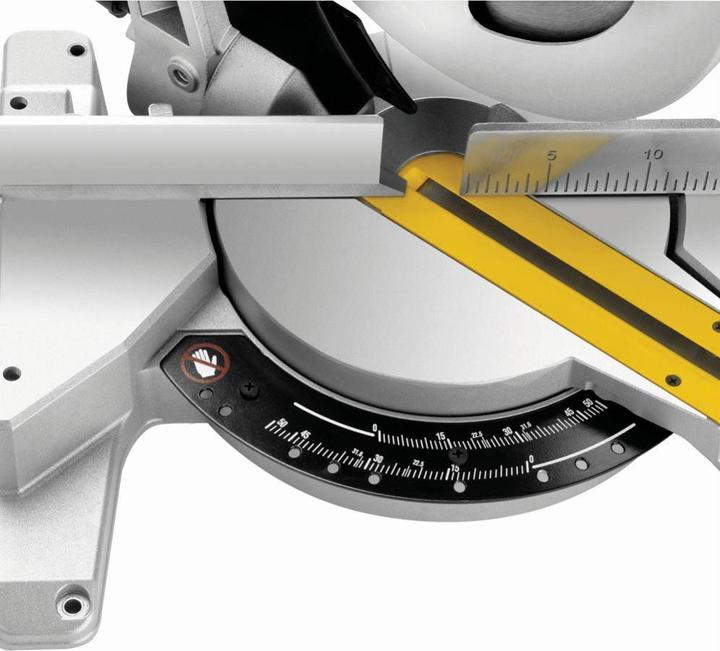

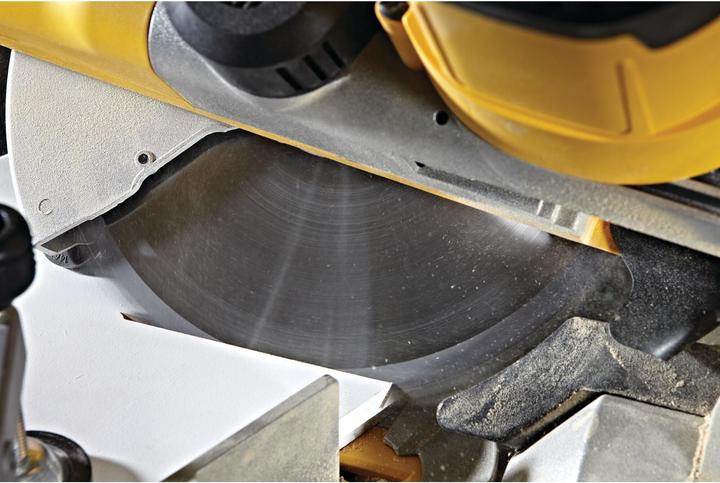

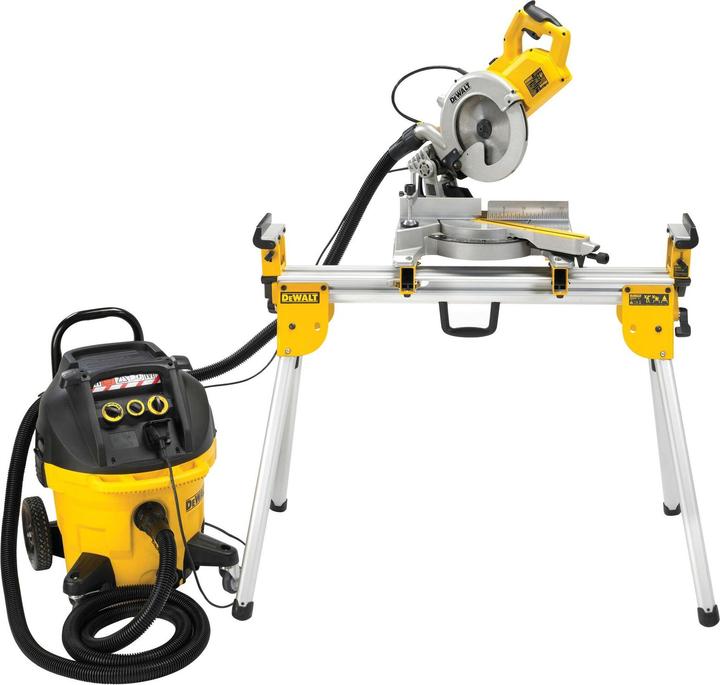

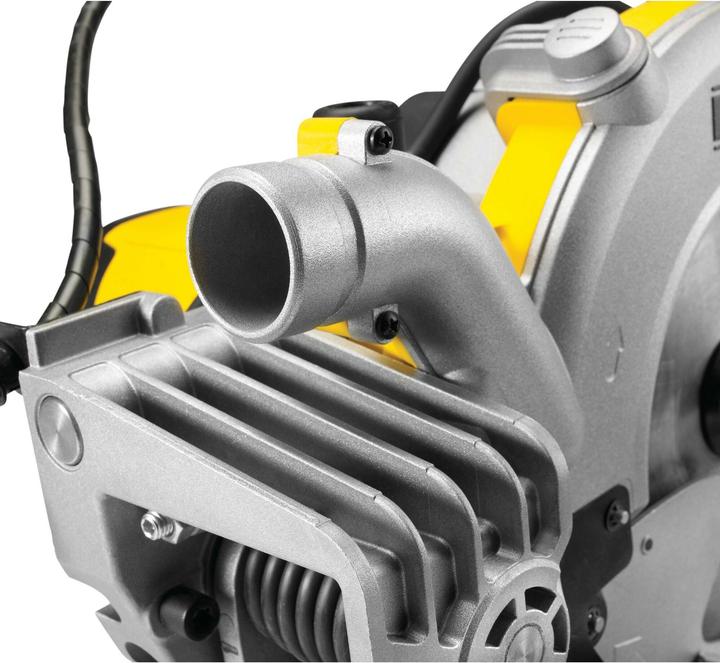

Simple processing of large workpieces with maximum precision thanks to the internal trombone extension with high-quality SKF sliding and ball bearings. Flat milled base plate and stop made of high-quality die-cast aluminum. Efficient dust extraction for an almost dust-free working environment. Compact dimensions make it ideal for use in assembly. Fixed stop points for standard miters at 0°, 15°, 22.5°, 30°, and 45°, as well as easy quick adjustment up to 50°. The movable left workpiece stop allows for the safe processing of small workpieces and simple angle adjustments. Lightweight and precise panel saw with a powerful motor. High cutting accuracy thanks to the LED cutting line indicator, which casts a shadow from the saw blade onto the workpiece, enabling precise alignment with the contour. Easy transport thanks to the secure locking function of the extension and the saw head.

Scope of delivery:

• 42-tooth HMS saw blade
• Socket wrench

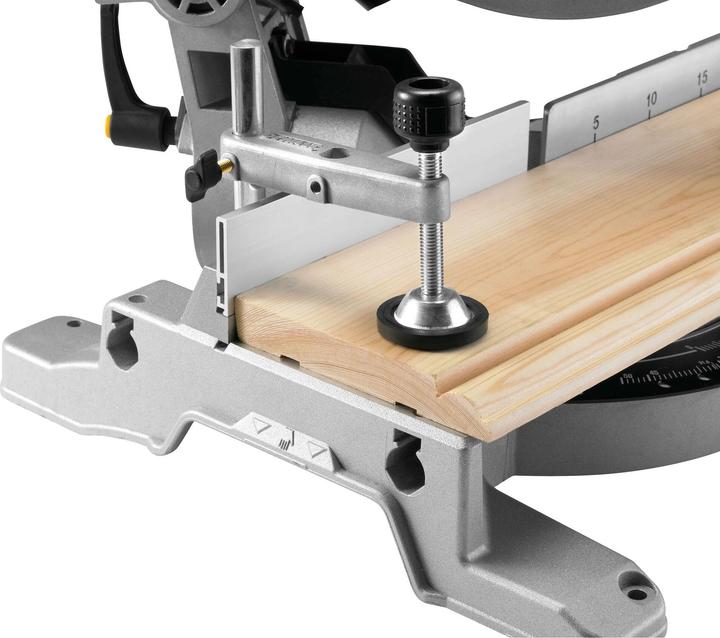

• Workpiece clamp

Technical data:

• Input power (Watts): 1,850 Watts
• No-load speed (rpm): 4,300
• Miter adjustment: 50° right / 50° left

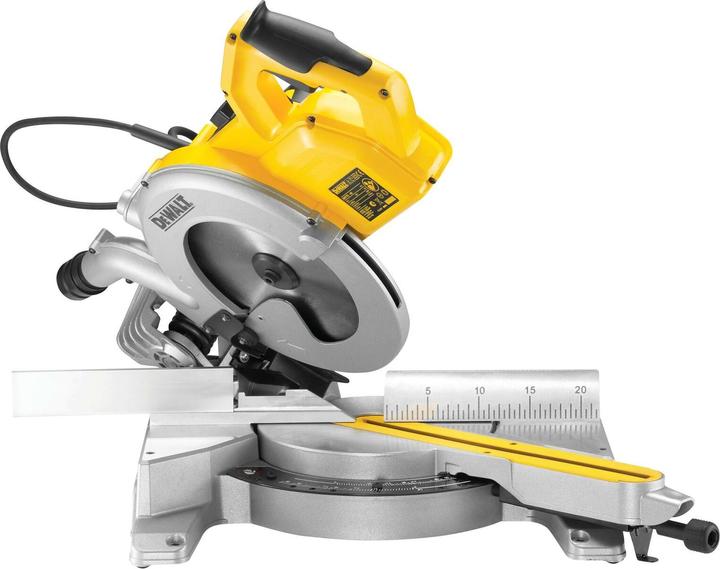

• Tilt adjustment (left): up to 48°
• Saw blade dimensions (mm): 250 x 30
• Cutting range at:
• 90° / 90° (mm): 305 x 85
• 90° / 45° (mm): 305 x 58
• 45° / 90° (mm): 215 x 85
• 45° / 45° (mm): 215 x 58
• Weight (kg): 17.2
• Sound pressure level LPA dB(A): 94.2
• Sound power level LWA dB(A): 107.2
• Uncertainty factor K dB(A): 3.0
• Vibration (m/s²): 2.4
• Uncertainty factor K (m/s²): 1.5.
