DeWalt Panel saw

Price in EUR including VAT, free shipping
21Ratings
Delivered between Thu, 15.5. and Fri, 16.5.
Only 2 items in stock at supplier

Features

Product details

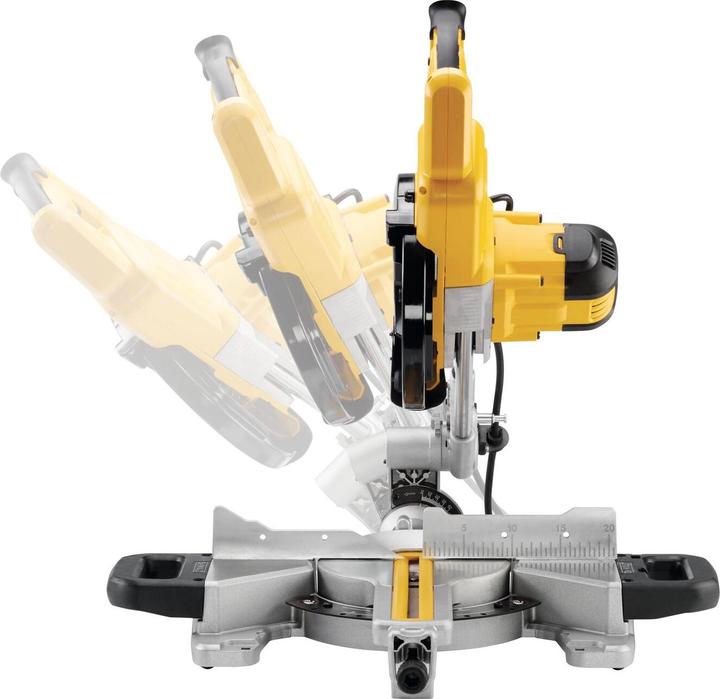

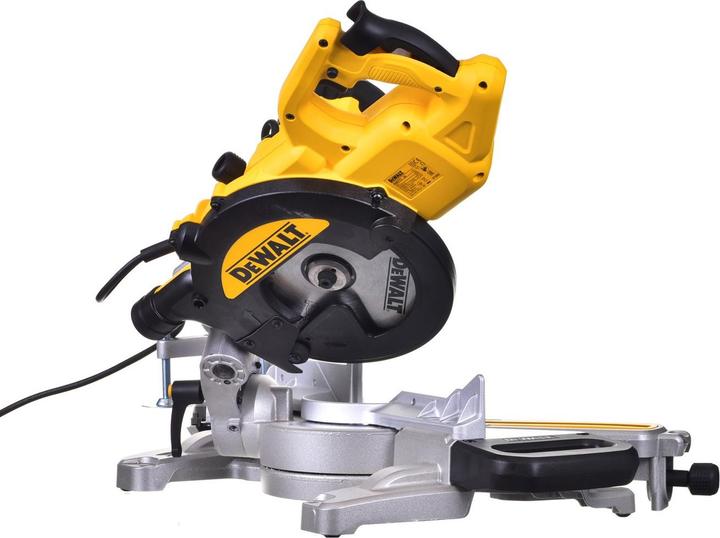

Extremely light and compact panel saw, ideal for assembly. It features a 1,300 watt motor with sufficient power reserves for most applications. Improved extraction is AirLock compatible. The face-milled base plate and fence are made of high-quality die-cast aluminium. For safe transport and pure cross-cut applications, the pull-out can be fixed. It has fixed detents for standard mitres at 0°, 15°, 22.5°, 30°, and 45°, as well as easy quick adjustment up to 50°. The stop design is also ideal for inclined cuts in smaller workpieces. Easy machining of large workpieces is possible with the highest precision due to the internal trombone extension. It has an extremely low weight of only 12 kg and offers a large cutting capacity due to the internal trombone slide with SKF slide and ball bearings.

Key specifications

Nominal diameter
216 mm
Max. depth of cut at 90°
70 mm
Mains voltage
230 V
Power
1300 W
Item number
14030456

General information

Manufacturer
DeWalt
Category
Chop saw + mitre saw
Manufacturer no.
DWS773-QS
Release date
21.4.2022

Colour

Colour
Silver, Yellow
Exact colour description
black / yellow

Chop saw + mitre saw Features

Suitable for
Wood
Max. tilt adjustment
48°
Mounting hole
30 mm

Saw blade properties

Nominal diameter
216 mm
Number of teeth
24

Depth of cut

Max. depth of cut at 90°
70 mm
Max. Depth of cut at 45
190 mm

Energy supply

Power supply
Electrical connection

Battery / accumulator features

Battery type
Li-ion
Battery equipment
No batteries supplied
Charger equipment
No charger supplied

Mains operation Features

Mains voltage
230 V
Cable length
0.22 m

Power

Power
1300 W
Max. Idle speed
4500 rpm
Max. noise level
93 dB
Sound power level (LWA)
104 dB
Sound pressure level (LpA)
104 dB

Material

Material group
Metal
Material
Metal / plastic

Origin

Country of origin
Italy

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
24 tooth carbide saw blade, Panel saw, Workpiece clamp

Product dimensions

Length
490 mm
Width
550 mm
Height
590 mm
Weight
12 kg

Package dimensions

Length
52.50 cm
Width
45.80 cm
Height
40.30 cm
Weight
14.02 kg
