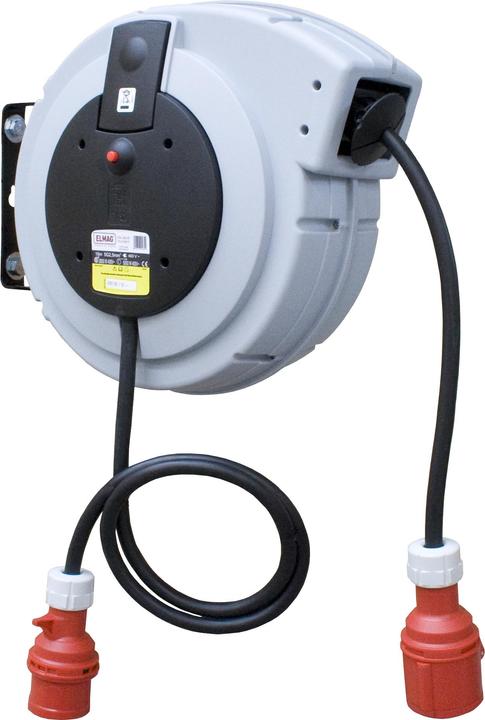

Elmag Automatic Cable Reel 'H07RN-F', Item No.: 42285

Product Description
ROLL ELECTRIC MEGA / MAJOR PLUS are automatic cable reels with extra cable length and extra power up to 5000 watts. Ideal, robust devices with a top design for factories and workshops.

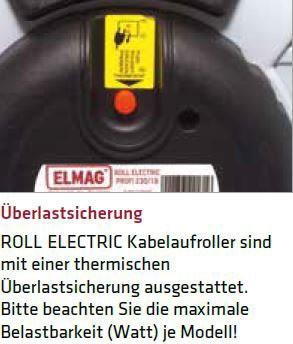

Overload Protection
ROLL ELECTRIC cable reels are equipped with thermal overload protection. Please note the maximum load capacities (watts) for each model!

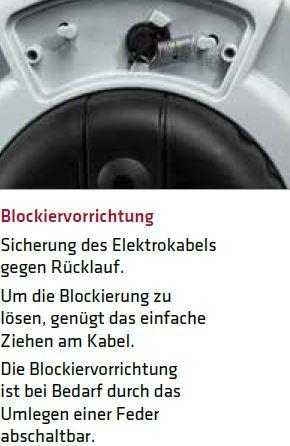

Locking Mechanism
Secures the electric cable against retraction. To release the lock, simply pull on the cable. The locking mechanism can be deactivated if necessary by flipping a spring.

• TÜV and GS certified
• With 5 x 16 A Euro standard plug and socket
• Modern, functional design

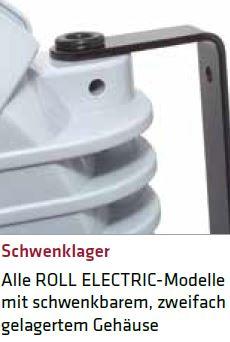

• Impact-resistant housing with stable steel wall mounting
• Precise, easy-to-handle, and switchable locking mechanism
• Strong return springs made of special steel
• Smooth and complete retraction of the electric cable
• Voltage: 400 volts
• Cable quality: H07RN-F
• Cable dimension: 5 x 2.5 mm²
• Load capacity when retracted: 2800 watts
• Load capacity when unrolled: 5000 watts
• Protection class: IP 24
• Includes overload protection

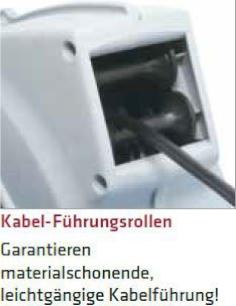

• Includes cable guiding rollers
• EN 61316:1999

Technical Data
Load capacity when unrolled: 5000 watts
Load capacity when retracted: 2800 watts
Weight: 11 kg
Cable length: 15 m
Supply cable length: 1.3 m
Cable cross-section: 5 x 2.5 mm²
Cable type: H07RN-F
Parcel service compatible: Yes
Protection class: IP 24
Slow motion usable (optional): Yes
Voltage: 400 volts
Country of origin: Italy
Customs tariff number: 85444290
Overload protection: Yes.
