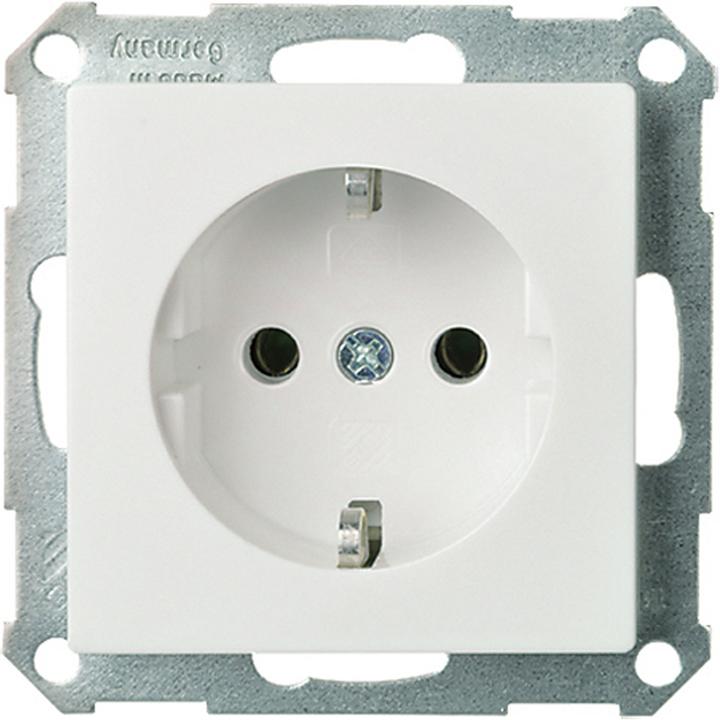

Elso socket outlet 515014
Manufacturer: Elso
Designation: Socket outlet UP20 for device carrier
Type: 515014
Design: SCHUKO
Protective contact: Yes
Protective conductor contact round: No
Number of active contacts (round): 1
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Screw terminal
With hinged cover: No
With increased touch protection: No
Text field/inscription area: No
Color: Pure white
RAL number (similar): 9010
Metallic color: No
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: No
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Rotated central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP20
Impact resistance: IK03
Device width: 80 mm
Device height: 80 mm
Device depth: 30 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Min. device socket depth: 40 mm
Compatible with Amazon Alexa: No
IFTTT support available: No
Cover: Complete housing
For "difficult conditions" (according to VDE): No

Elso socket outlet 515014: More details
Energy contact sockets for installation in equipment racks
16 A 250V AC screw terminals
Clamping range for copper conductors 1.5 mm² and 2.5 mm², for the safe connection of aluminum conductors 2.5 mm² without pretreatment
Socket outlet 1-fold.
Color: Pure white for screw mounting (1-fold support plate, 2-fold support bracket).
EAN: 4013984116076.
