ELSO Socket
More than 10 pieces in stock at supplier
Socket type3
Product details

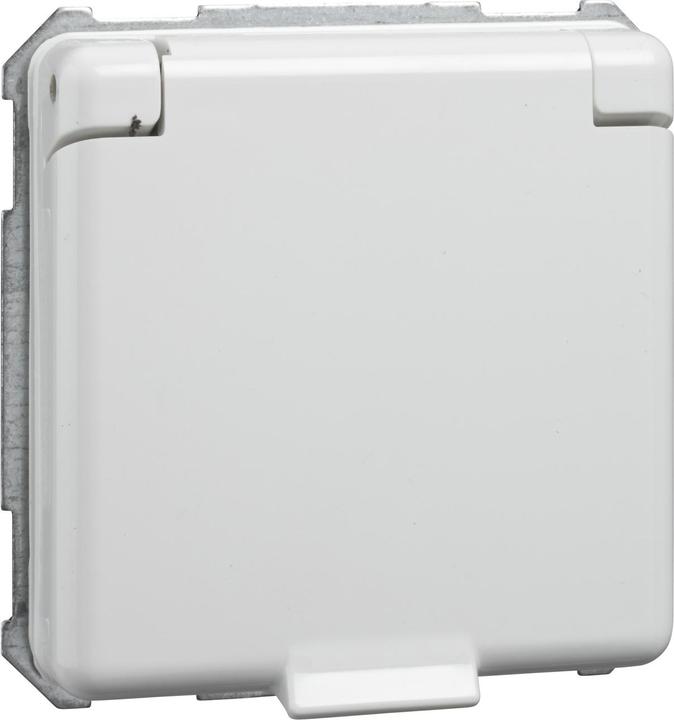

Elso socket rw 225034
Manufacturer: Elso
Designation: Socket rw with hinged cover
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Number of active contacts: 1
Connection type: Plug-in terminal
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface finish: Glossy
Impact resistance: IK03
Protection class: IP20
Device width: 100 mm
Device height: 88 mm
Device depth: 45 mm
Min. device socket depth: 40 mm
This socket outlet insert features a hinged cover and is designed for protective contact socket outlets rated at 16 A and 250 V AC. It can be retrofitted with a surge protection module for fine device protection and is suitable for flush mounting. The plug-in terminals have a clamping range for copper conductors of 1.5 mm² and 2.5 mm², with connection terminals according to VDE 0620. EAN: 4013984142112.
Exact colour description | White |
Socket type | CEE 7/16 |
Number of cans | 1x |
Area of use | Inside |
Mounting type | Flush-mounted |
Item number | 20022247 |
Manufacturer | ELSO |
Category | Sockets |
Manufacturer No. | 225034 |
Release date | 16.3.2022 |
External links |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Socket type | Built-in socket |
Socket type | CEE 7/16 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
connector type | Plug terminal |
Smart home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 66,23 kg |
Climate contribution | EUR 0,62 |
Stack depth | 4 cm |
Length | 2.50 cm |
Width | 10 cm |
Height | 8.80 cm |
Weight | 1000 g |
Product Safety |
Length | 7 cm |
Width | 7 cm |
Height | 5 cm |
Weight | 80 g |
