Etherma Dipol Thin Bed Heating Mat 162-DS5-1800

Manufacturer: Etherma
Description: Dipol Thin Bed Heating Mat 50x1800 cm, 1460 W, 230 V
Type: 162-DS5-1800
Version: other
With carrier mat: yes
Fixation of heating conductor: glued
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 1440 W
Power: 160 W/m²
Heating conductor load: 12 W/m
Resistance: 36.7 Ohm
Number of cold leads: 1
Length of cold leads: 3000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 9 m²
Length: 18000 mm
Width: 500 mm
Thickness: 2.7 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

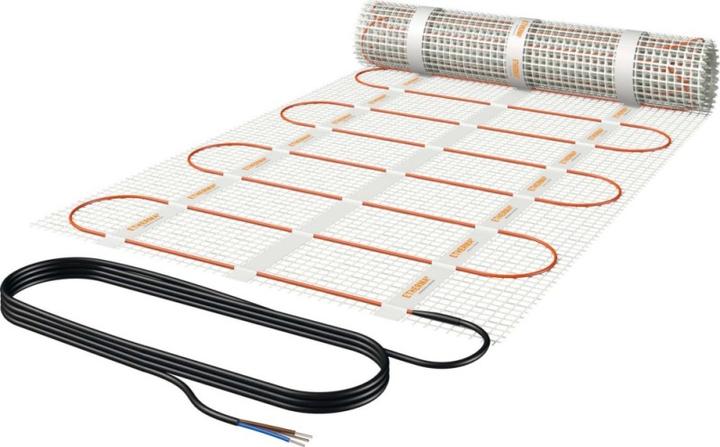

The DS heating mat is a factory-prepared heating mat for tempering floors, heating rooms, or providing thermal insulation on walls. With a thickness of only 2.7 mm, the heating mat allows for a low floor build-up height. The heating mat is self-adhesive, and the dipole design ensures easy installation in a tile adhesive bed and nearly magnetic field-free operation. The special processing guarantees 100% reliable, easy installation and high stability of the heating mat. Upon request, we can also manufacture DS heating mats in custom sizes, voltages, power ratings, and shapes.

Dipole heating conductor, low magnetic field, nominal temperature: up to 90 °C, system construction: according to VDE 0700, heating conductor thickness: 2.7 mm, protection class: IP X7, grid spacing: 12x12 mm, self-adhesive, CE compliant, test mark: VDE, protective measure: RCD protection circuit 30 mA, standard connection cable: 4 m, 2x1.0 mm² protective sheath.
