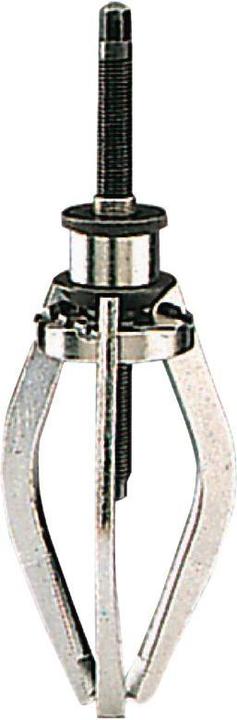

Product strengths:
Versatile: Assembly with 2 or 3 pull arms.
Convertible to internal puller with pull arms U.306G2, spindle U.306-4 or pull arms U.306G20, spindle U.306-2.
Comfort: Puller with self-clamping pull arms via return spring. The puller stays on the bearing even when not tensioned.
Safety: Locking of the pull arms on the bearing with a knurled wheel. The puller cannot slip off the bearing.
Spindle with safety head: a pin shears off if the permissible tightening torque is exceeded. Delivered with 2 replacement pins.
Compatible pulling aids: Slide hammer U.306M (direct mounting) and pulling device U.40 (mounting with ring and nut U.306A1, available separately).
The puller U.306-260 is supplied with spindle U.306-3 and its extension.

Technical data:
min.- max. C [mm]: 7 - 140
L x W x H [mm]: 130 x 225 x 262
max. T [mm]: 147
Hexagon [mm]: 18
Pull arms: U.306G1
Tons [t]: 3
Screws: U.306-4
Screws [mm]: 18
T [kN]: 30
[kg]: 1,600

Warranty coverage: E.
