The Fischer bolt anchor FBN II is a steel anchor designed for economical fixings in uncracked concrete. Thanks to its long thread and two anchoring depths, the Fischer bolt anchor FBN II is particularly versatile. In addition to pre-insertion and through-insertion mounting, the bolt anchor is also suitable for spacing installation. In its version made of galvanized steel, the bolt anchor is suitable for railings, cable trays, and brackets in indoor areas.

Advantages: The standard anchoring depth achieves the highest load capacities. This reduces the number of fixing points and the size of anchor plates needed. The reduced anchoring depth decreases the drill hole depth, which reduces installation effort and increases flexibility. The long thread allows for compensation of component tolerances and spacing installations, thereby enhancing flexibility. A few hammer strikes and minimal tightening slip ensure noticeably easy installation. The impact pin protects the thread from damage, facilitating time-saving assembly and disassembly of the attachment.

Applications: Steel constructions, railings, brackets, ladders, cable trays, machines, stairs, gates, facades.

Approved for: Concrete C20/25 to C50/60, uncracked. Also suitable for: Concrete C12/15, natural stone with dense structure.

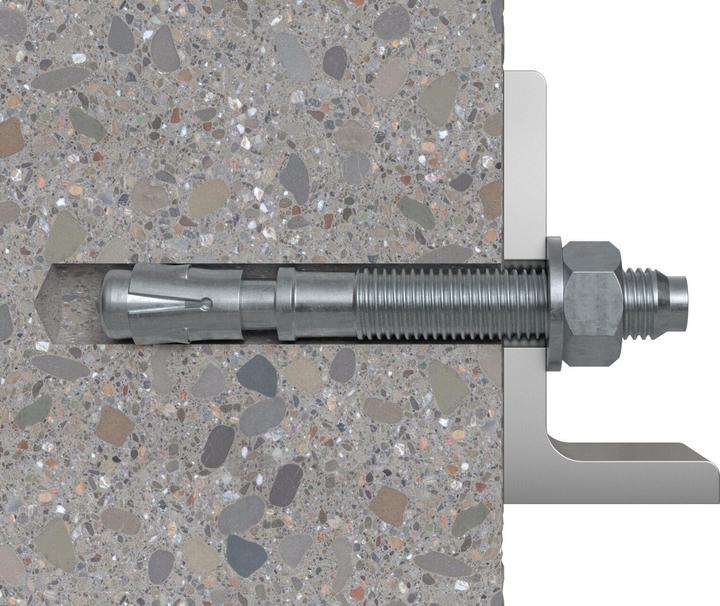

Functionality: The FBN II is suitable for pre-insertion and through-insertion mounting and conditionally for spacing installation. Before installation, position the hex nut optimally (the impact pin protrudes about 3 mm from the hex nut). When applying the torque, the cone bolt is pulled into the expansion clip and tensions it against the borehole wall. The head marking allows for easy control of the anchoring. For series installation, we recommend using the bolt anchor setting tool FABS.
