Certification: European Technical Assessment Option 7 for non-cracked concrete (ETA-07/0211). Suitable for pressure zones, approved by building authorities.

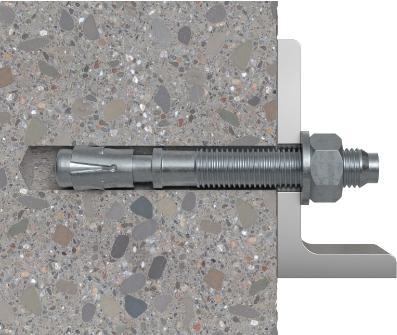

Application: For fixing steel structures, railings, brackets, ladders, cable ladders, machines, stairs, gates, facades, window elements, timber structures, etc. The value td refers to push-through installation with standard clamping thickness.

Drill diameter (mm): 16
d1 (mm): 16

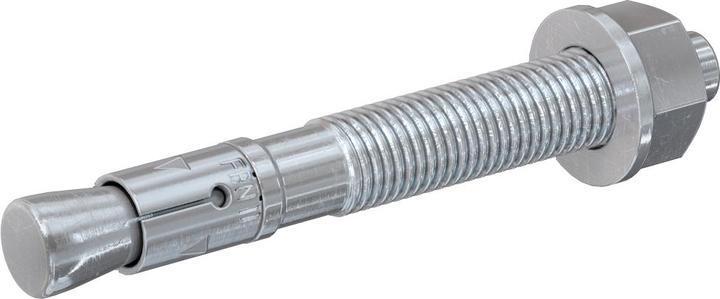

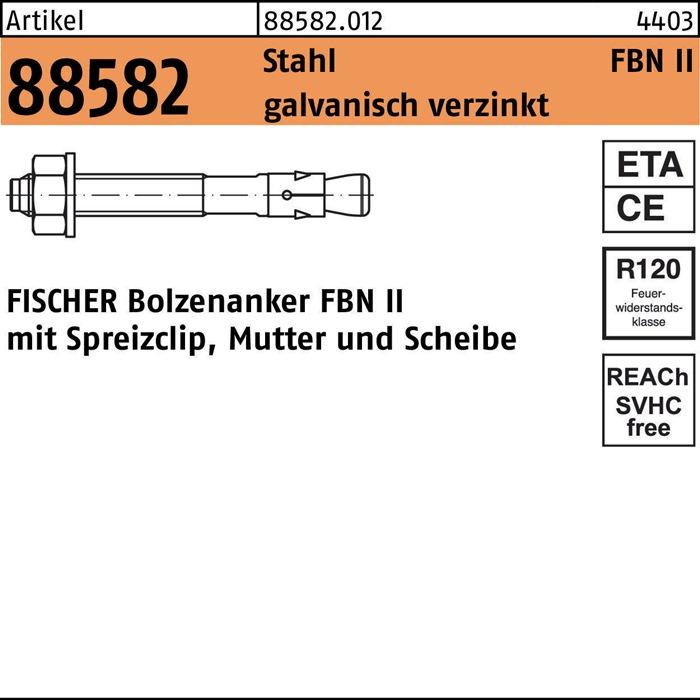

Shape: FBN II
Thread: M16
hef min. anchoring (mm): 80
L (mm): 145
Material: Steel
Surface: Galvanised
d min. drill hole depth (mm): 129
t fix max. usable length (mm): 25
Brand: Fischer
Size (mm): 16/25/145
Contents (pcs): 10.
