Fischer Bolt anchor FBN-II

100 pcs.
Price in EUR including VAT
EUR0,66/1pcs.
Ratings
Delivered between Wed, 2.7. and Thu, 3.7.
Only 3 items in stock at third-party supplier
Supplied by
free shipping

Product details

Certification: European Technical Assessment Option 7 for non-cracked concrete (ETA-07/0211). Suitable for pressure zones, approved by building authorities.

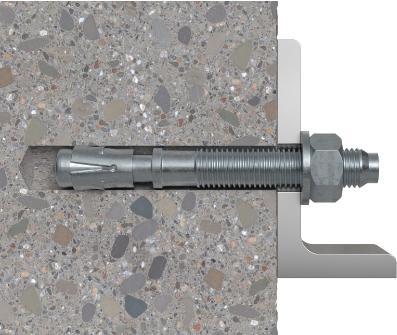

Application: For fixing steel structures, railings, brackets, ladders, cable ladders, machines, stairs, gates, façades, window elements, timber structures, etc. The value td refers to push-through installation with standard clamping thickness.

Specifications:

  • Drill diameter (mm): 6
  • d1 (mm): 6
  • Shape: FBN II
  • Thread: M 6
  • hef min. anchoring (mm): 30
  • L (mm): 50
  • Material: Steel
  • Surface: Galvanised
  • d min. drill hole depth (mm): 45
  • tfix max. usable length (mm): 5
  • Brand: Fischer
  • Size (mm): 6/5/50
  • Contents (pcs): 100.

Key specifications

borehole diameter
6 mm
Dowel length
5 mm
Items per sales unit
100 pcs.
bolt diameter
6 mm
Documents
Technical data sheet.pdf
Item number
15879428

General information

Manufacturer
Fischer
Category
Wall plugs
Manufacturer no.
469663
Release date
24.5.2021
External links
Manufacturer's site (de)

Colour

Colour
Blue
Exact colour description
galvanised-blue

Material

Material group
Metal
Material
Steel

Dowel Properties

borehole diameter
6 mm
Dowel length
5 mm
bolt diameter
6 mm
borehole depth
45 mm
building material surface
Concrete
Material application
Steel, Veneer

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 pcs.

Package dimensions

Length
5 cm
Width
1 cm
Height
1 cm
Weight
10 g
