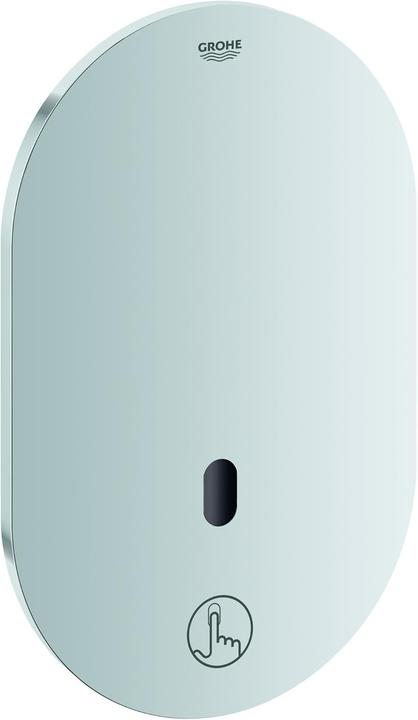

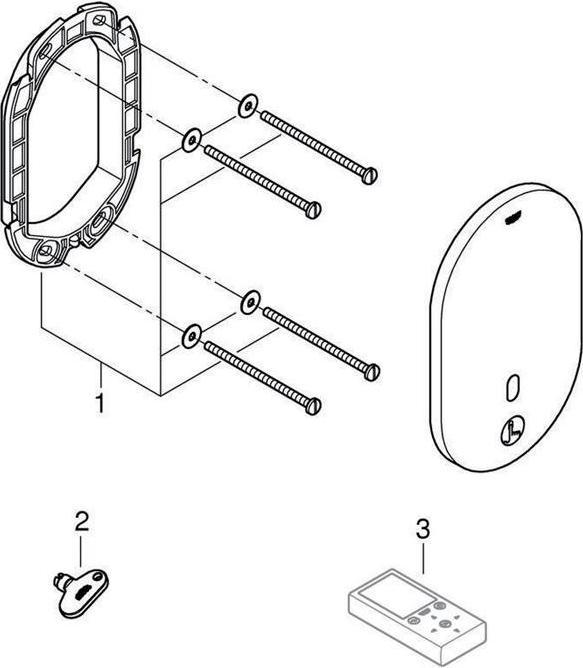

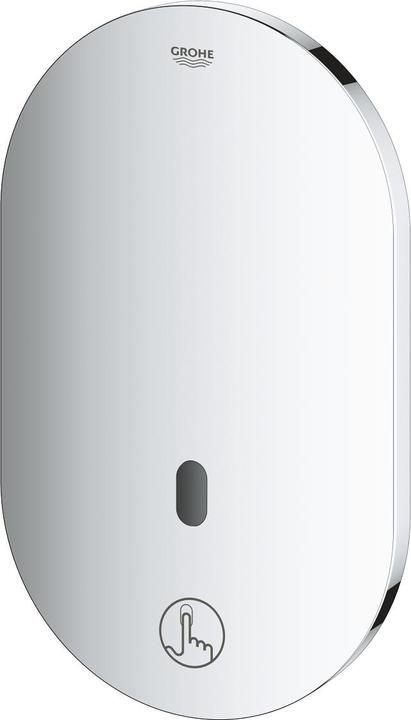

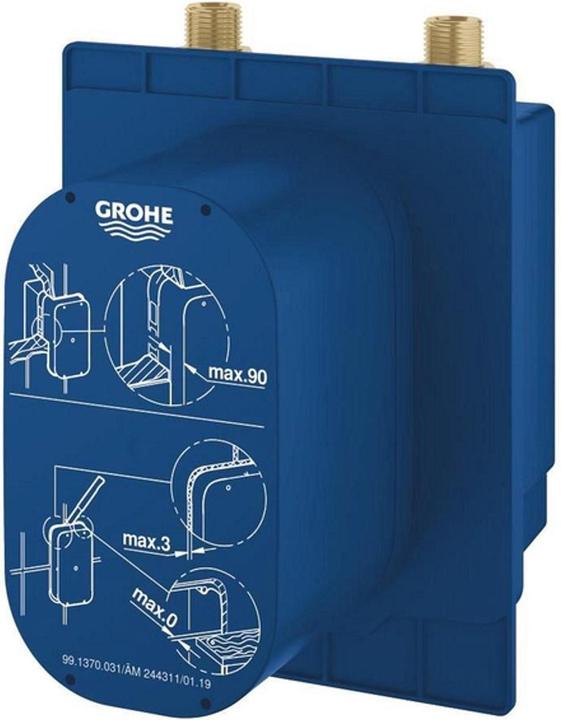

For shower thermostat, wall installation, with infrared sensor for bidirectional communication. Ready-mounted set for concealed installation box 36416001 and 36464000, for concealed, presettable thermostatic mixing device. Features a StarLight surface, 7 preset programmes, automatic flushing, thermal disinfection, and cleaning mode. Additional functions and settings are available with remote control 36407.

Further technical features include:

• Dimensions branching connection: 1/2 inch
• Branching connection: internal thread
• Connection flow: external thread
• Connection dimension supply: 1/2 inch
• Connection voltage: 0V
• Type of control: infrared
• Type of temperature control: thermostatic
• Automatic rinse cycle: Yes
• Width of cover plate: 120mm
• Diameter of cover plate: 0mm
• Frequency of flush cycle: 4h
• Noise class according to DIN 52 218 group I: <=20 dB(A)
• Basic colour: chrome
• Height of cover plate: 11mm
• With backflow protection: Yes
• Voltage type: AC/DC
• Extension set available: No
• Volume flow class: C
• Prepressure: 1bar
• Max. flow capacity (300 kPa): 25l/s
• Max. temperature setting: 100°C.
