Product details

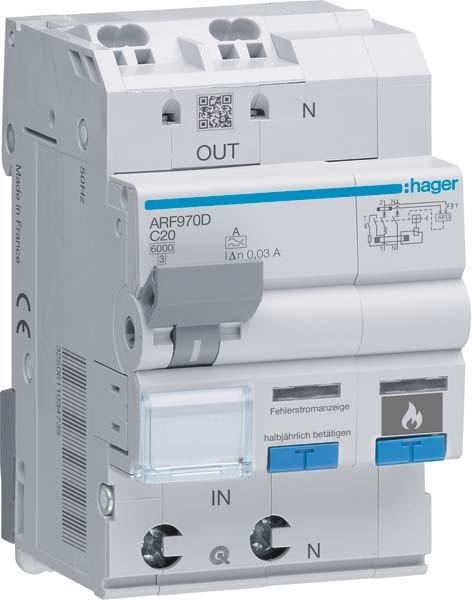

The Hager ARF970D is a combination of an Arc Fault Detection Device (AFDD) and a Residual Current Circuit Breaker (RCCB), specifically designed for use in electrical installations. This device provides comprehensive protection against electrical faults and fire hazards by monitoring both arc faults and residual currents. The ARF970D meets the requirements of relevant standards, including DIN EN 62606 and DIN EN 61009, and is equipped with Type A residual current monitoring, offering a rated residual current of 30 mA. It is mounted on a DIN rail, allowing for easy installation and integration into existing systems. With a type C tripping characteristic and a rated current of 20 A, this device is suitable for a wide range of applications. The Hager ARF970D also features a user-friendly test button for the AFDD and the residual current protection device, facilitating maintenance and functionality checks.
- Combination of AFDD and RCCB for comprehensive protection
- Easy mounting on DIN rail
- Type A residual current monitoring with 30 mA
- Test buttons for easy maintenance
- Suitable for retrofitting additional devices.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 70 mm |
Width | 53.20 mm |
mounting style | Top-hat rail |
number of poles | 1 |
Item number | 31988802 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ARF970D |
Release date | 24.10.2022 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
mounting style | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 20 A |
Rated current | 0.03 A |
Rated voltage | 230 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IPX2 |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 3 Piece |
Length | 70 mm |
Width | 53.20 mm |
Height | 83 mm |
