Hager HAG CEA440D RCD circuit breaker 4P 40A 100mA type A

Price in EUR including VAT
Ratings
Delivered between Tue, 1.7. and Thu, 3.7.
More than 10 items in stock at supplier
free shipping

Product details

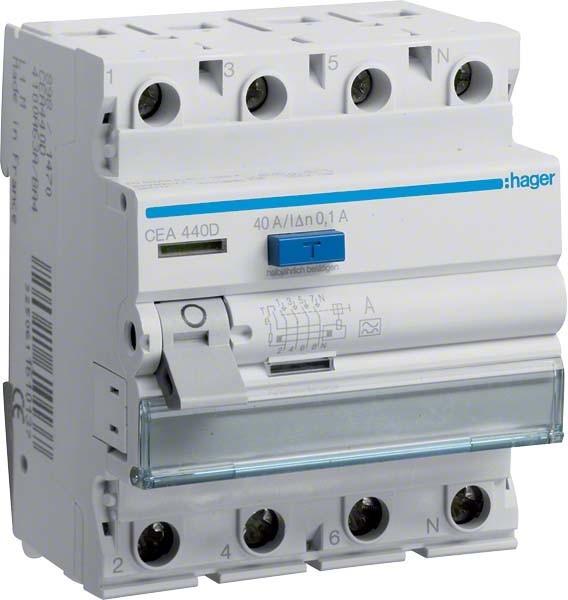

Hager RCD CEA440D

Manufacturer: Hager
Designation: RCD 4P 40A 100mA
Type: CEA440D
Number of Poles: 4
Rated Voltage: 400 V
Rated Current: 40 A
Rated Residual Current: 0.1 A
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Withstand Uimp: 4 kV
Power Loss: 8.1 W
Mounting Type: DIN Rail
Residual Current Type: A
Selective Type: No
Short-Time Delay Type: No
Short-Circuit Strength (Icw): 6 kA
Surge Current Strength: 0.25 kA
Voltage Type: AC
With Locking Device: Yes
Frequency: 50 Hz
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Division Units: 4
Installation Depth: 70 mm
Ambient Temperature During Operation: -25..40 °C
Degree of Pollution: 2
Connectable Conductor Cross-Section Multi-Stranded: 1..16 mm²
Connectable Conductor Cross-Section Single-Stranded: 1..25 mm²
RAL Number (similar): 7005
Explosion-Proof: No

Hager RCD CEA440D: Additional Details
4-pole residual current circuit breaker 6kA 40A 100mA Type A. Residual current circuit breaker (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current display. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling option directly on the device. EAN: 3250611610137.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
70 mm
Width
70 mm
mounting style
Top-hat rail
number of poles
4
Item number
32112187

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
CEA440D
Release date
16.11.2022

Colour

Colour
Grey
Exact colour description
RAL 7005

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
A
Rated current
40 A
Rated current
0.1 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.10 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
70 mm
Height
83 mm

Package dimensions

Length
9 cm
Width
8 cm
Height
8 cm
Weight
320 g
