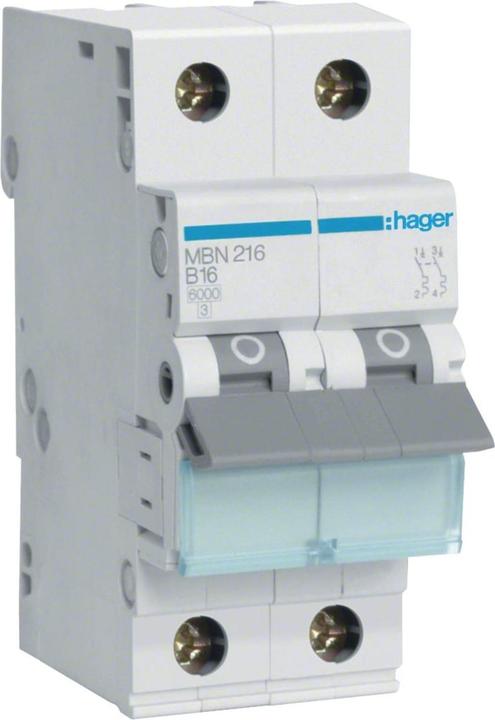

Hager MBN216. Number of poles: 2P. AC input frequency: 50/60 Hz, Nominal current output: 16 A.
More than 10 pieces in stock at supplier
Rated current2
Product details
Hager Circuit Breaker MBN216
Manufacturer: Hager
Designation: 2-pole Circuit Breaker B-16A, 6kA
Type: MBN216
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 2
Number of Protected Poles: 2
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 4.2 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Pollution Degree: 2
Additional Devices Possible: yes
Width in Division Units: 2
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..70 °C
Connectable Conductor Cross-section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-section Solid: 1..35 mm²
Explosion-Proof: no
Hager Circuit Breaker MBN216: additional details
2-pole circuit breaker 6kA B-characteristic 16A 2 modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.
EAN: 3250614310256.
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 2 |
Length | 70 mm |
Width | 35 mm |
Item number | 17820220 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer No. | MBN216 |
Release date | 9.12.2021 |
External links |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 2 |
Tripping characteristic | B |
Rated current | 16 A |
Rated current | 0.1 A |
Rated voltage | 400 V |
voltage type | AC |
Insulation voltage (Ui) | 500 V |
Residual current | 0.10 A |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 20,66 kg |
Climate contribution | EUR 0,51 |
Items per sales unit | 1 pcs. |
Length | 70 mm |
Width | 35 mm |
Height | 83 mm |
Product Safety |
Length | 9 cm |
Width | 8 cm |
Height | 4 cm |
Weight | 180 g |
