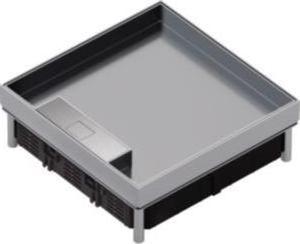

Tehalit Floor Box Group 4 EKQ120LE25

Manufacturer: Tehalit
Designation: Floor Box Group 4 h3+ P250 4P 250A
Type: EKQ120LE25
Nominal Size: 243 mm
Cassette Height: 105 mm
Min. Installation Depth: 105 mm
Leveling Height: 105 - 292 mm
Depth of Floor Covering Cutout: 25 mm
Floor Maintenance: dry
Design: square
Material: stainless steel
Number of Cable Outlets: 1
Cable Outlet Design: swiveling
Cable Outlet Color: gray
Device Carrier for Device Sockets: yes
Installation Length: 244 mm
Installation Width: 244 mm
Number of Installable Devices: 12
Number of Device Sockets: 3

Tehalit Floor Box Group 4 EKQ120LE25: additional details
Leveling stainless steel cassette Q12 with cable outlet for 12x45 mm modules, covering T=25 mm. Leveling cassette with cable outlet, square, consisting of cassette frame, cable outlet cassette cover, seal, and 2 x cable retention clips. Usable for all types of floor constructions in dry indoor spaces with dry-maintained floors. The seal is replaceable to ensure long-term protection class compliance. Designed for the installation of step-down device sockets for up to 12 devices measuring 45 x 45 mm. Tested according to DIN EN 50085-1 and DIN EN 50085-2-2. EAN: 4012740028929.
