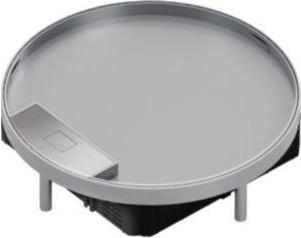

Tehalit Floor Box Construction Group 5 EKR120LE15

Manufacturer: Tehalit
Designation: Floor box construction group 5 for MCCB H3+ P630 3P
Type: EKR120LE15
Nominal size: 305 mm
Cassette height: 95 mm
Min. installation depth: 95 mm
Leveling height: 95 to 282 mm
Depth of floor covering recess: 15 mm
Floor maintenance: dry
Design: round
Material: stainless steel
Number of cable outlets: 1
Cable outlet design: swivel
Cable outlet color: gray
Device carrier for accommodating device boxes: yes
Installation diameter: 306 mm
Number of installable devices: 12
Number of device boxes: 3

Tehalit Floor Box Construction Group 5 EKR120LE15: additional details
Leveling stainless steel cassette R12 with cable outlet for 12x45 modules, covering T=15 mm. Leveling cassette with cable outlet, round, consisting of cassette frame, cable outlet cassette cover, seal, 2 x cable retention clips. Usable for all types of floor constructions in dry indoor spaces with dry-maintained floors. The seal is replaceable to ensure long-term protection class compliance. Designed for the installation of step-down device boxes for up to 12 devices measuring 45 x 45 mm. Tested according to DIN EN 50085-1 and DIN EN 50085-2-2.
