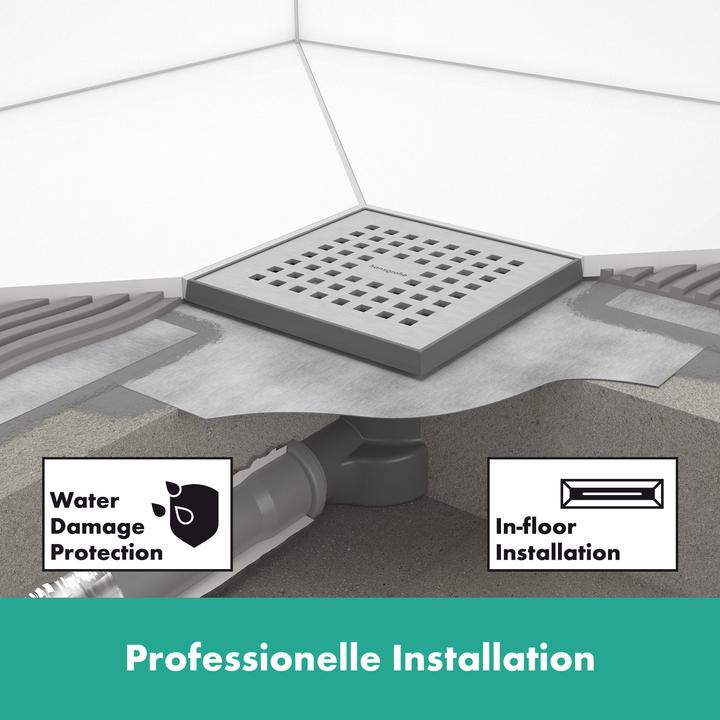

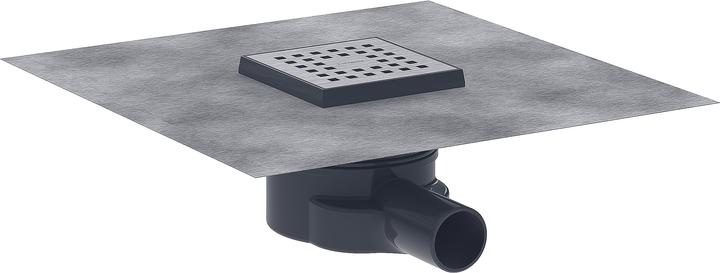

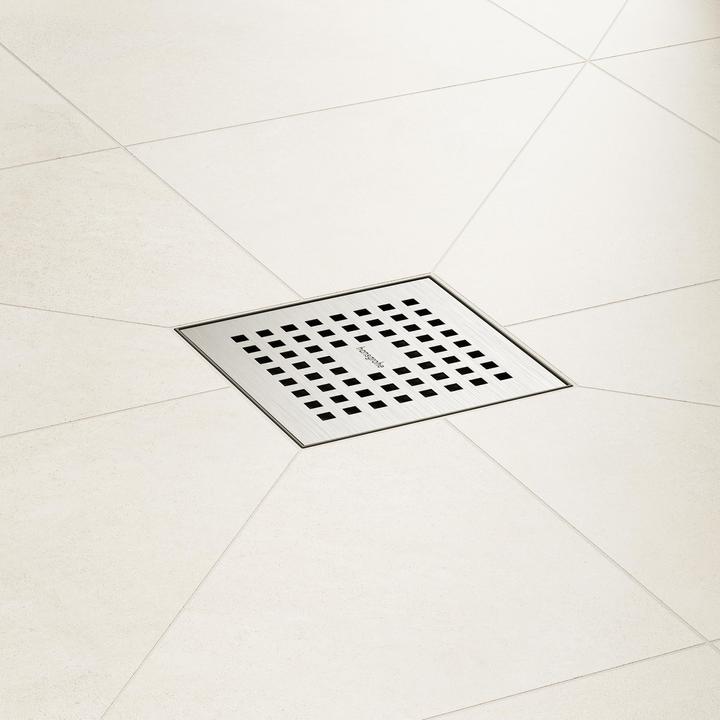

Hansgrohe RainDrain Point Complete Set Point Drain 100/100, brushed stainless steel: consists of point drain, installation set, main body, factory pre-assembled sealing fleece, siphon, construction protection cap, pre-assembled sealing membrane, water seal height 50 mm, connection DN 40, horizontal outlet, height adjustable by 10 mm, removable odor trap, rotatable and adjustable siphon housing, liquid odor trap, minimum installation height 54 mm, height of main body 54 mm, siphon made of plastic, free installation in space, cover made of stainless steel.

Additional technical features: removable water trap: yes, lockable: yes, type of odor sealing: liquid, width: 100 mm, installation depth: 2125 mm, adjustable attachment piece: yes, color of the grid: stainless steel, shape of grid perforation: square, suitable for coated floors: no, suitable for concrete floors: yes, suitable for waterproof applications: yes, suitable for vinyl floors: no, grid for tiles: no, grid for glass: no, gloss level: glossy, height: 102 mm, height of water seal: 50 mm, height adjustable: yes, length: 100 mm, loose edge: no, material of grid: other, material of channel: stainless steel, with fire protection sleeve: no, with grid: yes, with siphon: yes, nominal diameter of connection: DN 40, surface treatment of grid: other, surface protection of grid: untreated, direction of outlet: horizontal, outer diameter of pipe: 40 mm, sound insulating: no, widened sealing flange: yes, material quality of channel: stainless steel 304 (1.4301).
