Length
- 380 mmEUR329,–
- 430 mmEUR303,32
- 480 mmEUR258,57
- 530 mmEUR225,62
- 580 mmEUR330,39
- 630 mmEUR286,44
- 680 mmEUR363,–
- 780 mmEUR313,51
- 800 mmEUR458,65
- 880 mmEUR441,51
- 980 mmEUR472,27
Product details

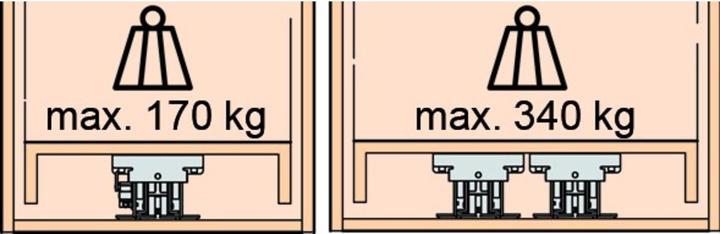

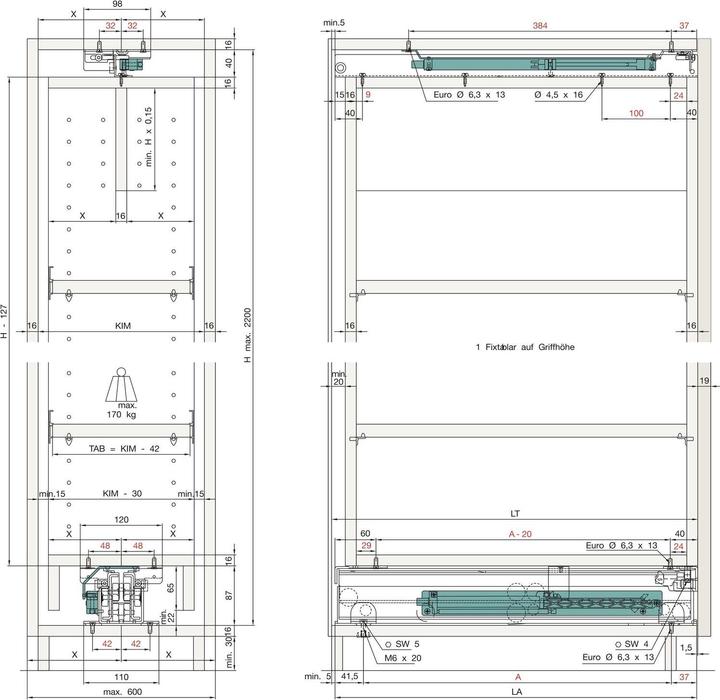

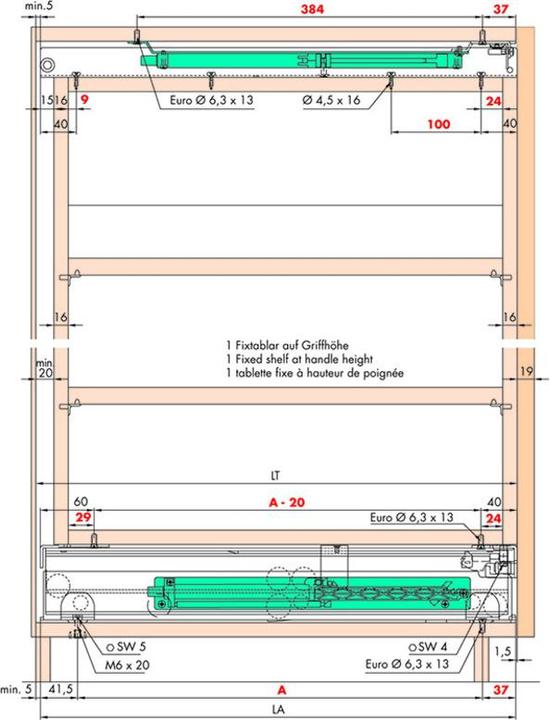

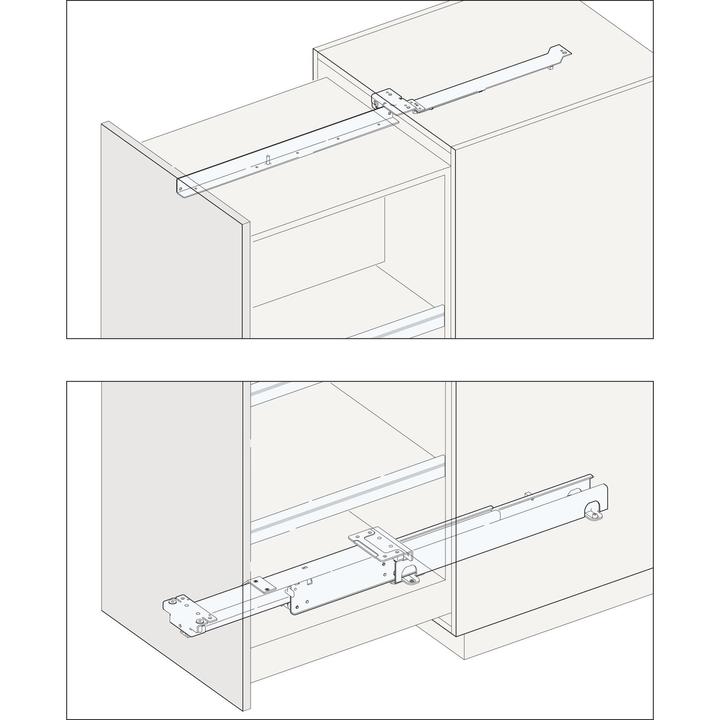

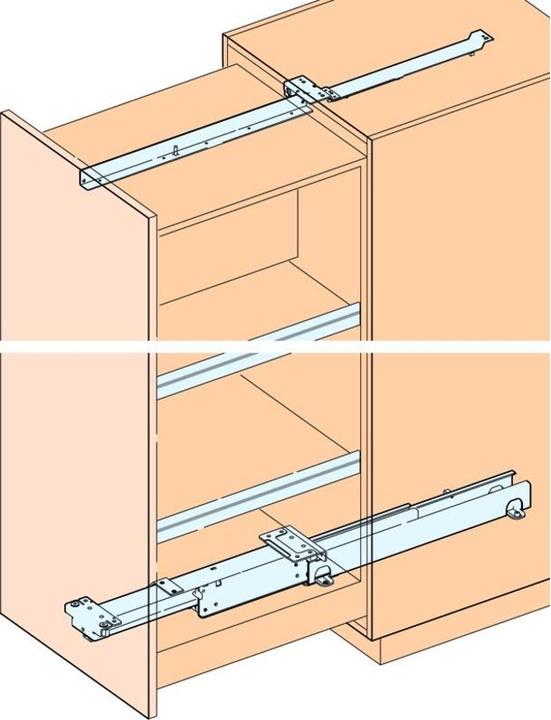

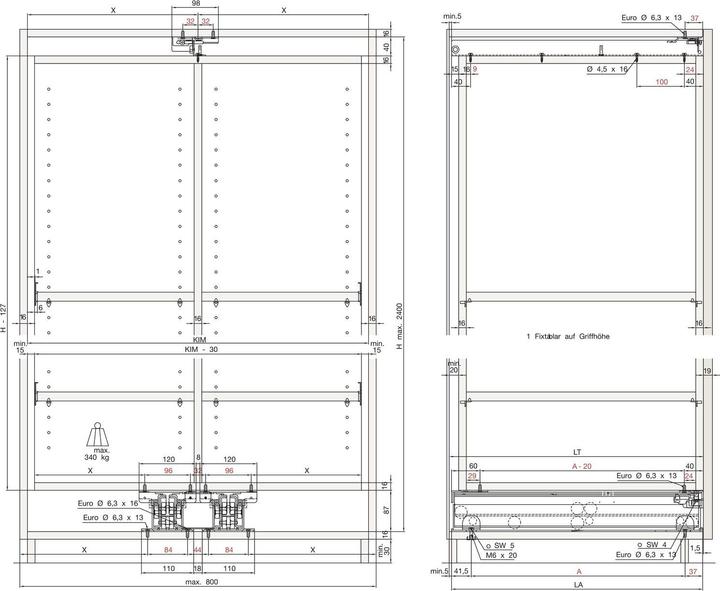

For floor mounting, suitable for the free design of wooden constructions. Maximum element height/width 2200/600 mm (800 mm with 2 extensions). Differential full extension - optionally available with damping. Installation loss at the top 40 mm, at the bottom 87 mm. Maximum load capacity 170 kg (340 kg with 2 extensions and connection set 53.146.48). Color light gray RAL 7035.
Extension type | Full extension |
Max. load | 170 kg |
Items per sales unit | 1 Piece |
Length | 580 mm |
Exact colour description | Grey |
Material | Steel |
Item number | 10862978 |
Manufacturer | HAWA |
Category | Drawer runners |
Manufacturer no. | 061.3072.371 |
Release date | 27.3.2019 |
External links |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Steel |
Extension type | Full extension |
Closing function | Steamed |
Max. load | 170 kg |
Extract path | 552 mm |
mounting style | Floor mounting |
Min. installation depth | 585 mm |
Country of origin | Switzerland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 580 mm |
Width | 800 mm |
Specifications may include unverified machine translations.
