Length
- 380 mmEUR329,–
- 430 mmEUR311,65
- 480 mmEUR265,66
- 530 mmEUR248,06
- 580 mmEUR339,55
- 630 mmEUR356,79
- 680 mmEUR380,67
- 780 mmEUR411,36
- 800 mmEUR503,96
- 880 mmEUR448,53
- 980 mmEUR441,79
Product details

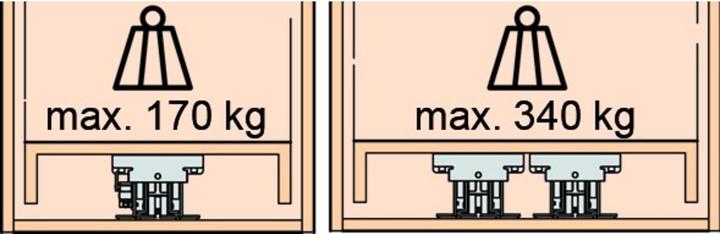

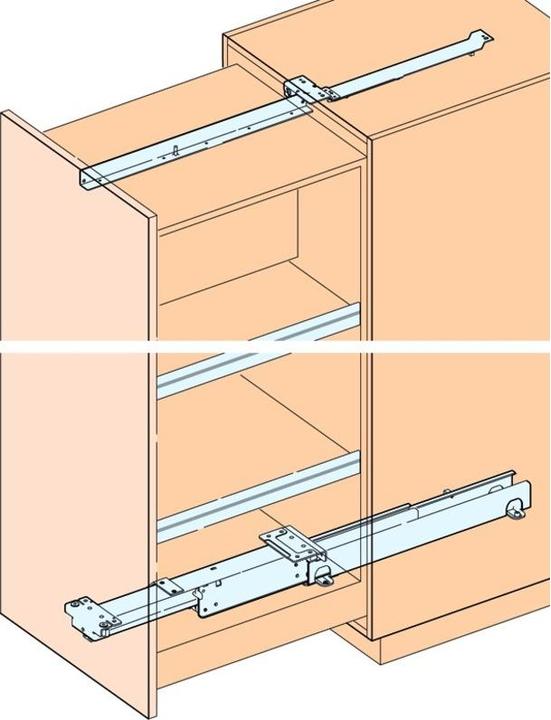

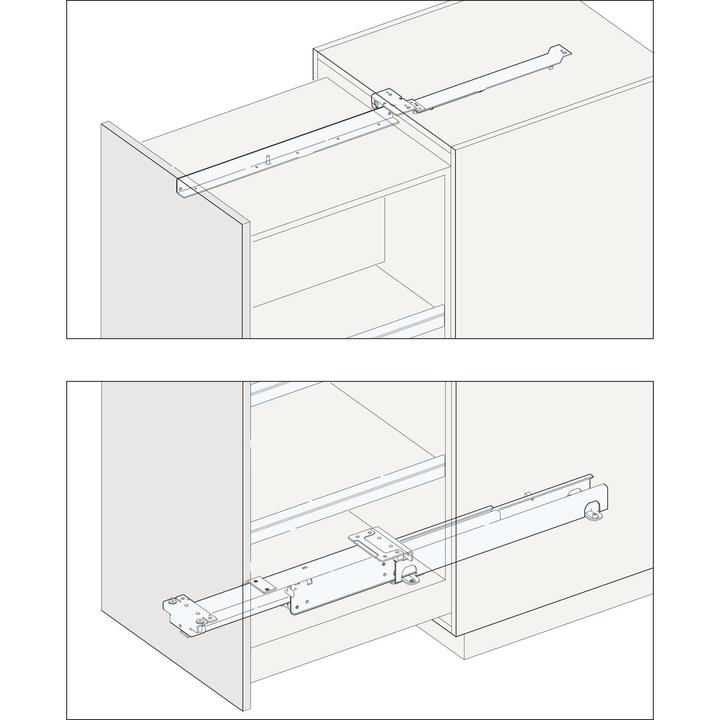

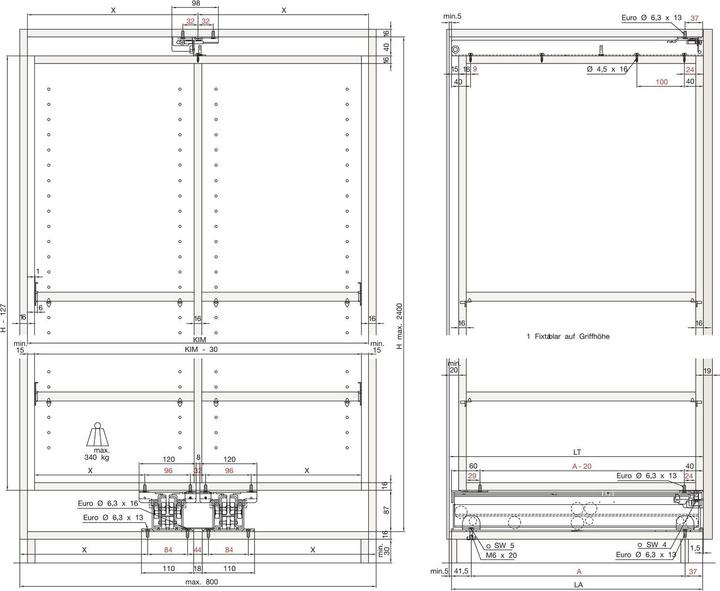

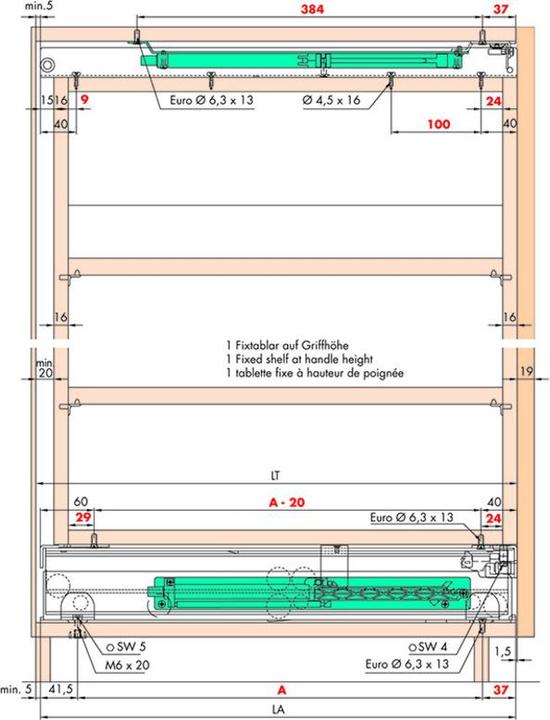

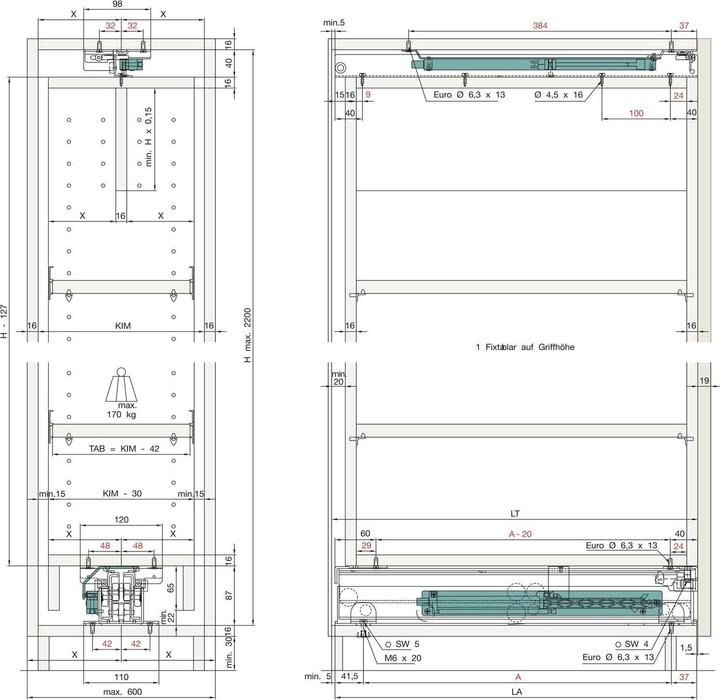

For floor mounting, suitable for the free design of wooden constructions. Maximum element height/width 2200/600 mm (800 mm with 2 extensions). Differential full extension - optionally available with damping. Installation loss at the top 40 mm, at the bottom 87 mm. Maximum load capacity 170 kg (340 kg with 2 extensions and connection set 53.146.48). Color light gray RAL 7035.
Extension type | Differential full extension |
Max. load | 170 kg |
Items per sales unit | 1 Piece |
Length | 880 mm |
Exact colour description | Grey |
Material | Steel |
Item number | 10877707 |
Manufacturer | HAWA |
Category | Drawer runners |
Manufacturer no. | 061.3076.371 |
Release date | 28.3.2019 |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Steel |
Extension type | Differential full extension |
Closing function | Steamed |
Max. load | 170 kg |
Extract path | 852 mm |
mounting style | Floor mounting |
Min. installation depth | 885 mm |
Country of origin | Switzerland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 880 mm |
Width | 885 mm |
Height | 885 mm |
Product Safety |
