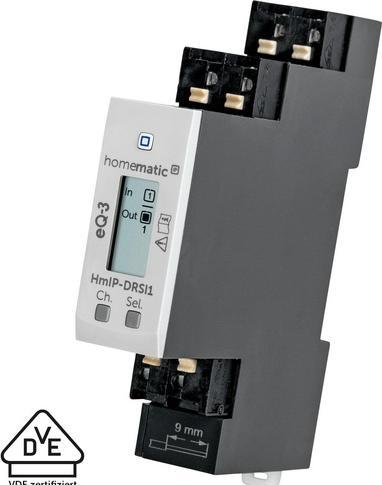

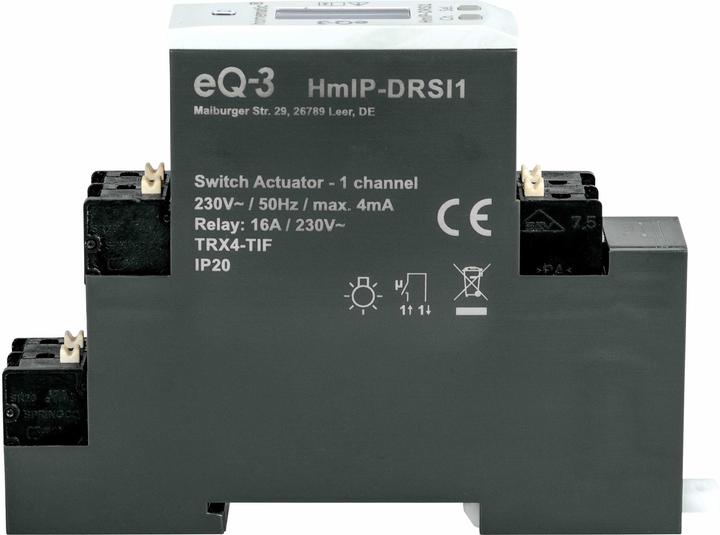

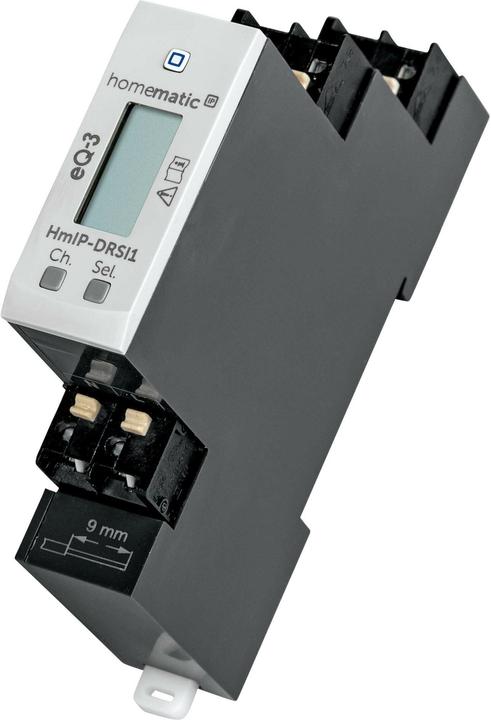

Homematic IP Switch actuator for top hat rail mounting
Switch actuatorMore than 10 pieces in stock at third-party supplier
Number of switching outputs2
Product details
The particularly narrow switching actuator, with a width of only 1 TE, can be easily installed on a DIN rail to switch a channel from the distribution cabinet. This makes the device ideal for replacing pulse switches. Control is done directly via standard 230 V push buttons, wirelessly via Homematic IP buttons or remote controls, and even at any time through the smartphone app. The switching actuator not only allows for the convenient switching on and off of a connected light via an independent channel but also serves as a replacement for a conventional pulse switch. Installation on standard DIN rails is made particularly easy with spring-loaded terminals. Even without programming, the function and wiring can be checked directly on the device during installation thanks to the illuminated display and device buttons. The connected light can be flexibly controlled via wireless buttons or remote controls, as well as at any time through the Homematic IP app. Alternatively, manual operation via conventional wired buttons is also possible. It is suitable for both new installations and retrofitting. It can be easily installed in the distribution cabinet and takes up little space due to its compact housing. No intervention in the room-level installation is necessary. Existing switches and buttons can simply continue to be used.
Actuator type | Switch actuator |
Operating voltage | 230 V |
Mounting type | Top-hat rail |
Smart Home Systems | Homematic IP |
communicating | Wireless |
Items per sales unit | 1x |
Item number | 14146878 |
Manufacturer | Homematic IP |
Category | Actuator |
Manufacturer no. | HmIP-DRSI1 |
Release date | 6.11.2020 |
Colour | Grey |
Exact colour description | Grey |
Actuator type | Switch actuator |
Max. Switching capacity | 1500 W |
rated current | 10 A |
Operating voltage | 230 V |
Number of switching outputs | 1x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart home | Compatible |
Smart Home Systems | Homematic IP |
communicating | Wireless |
Radio frequency | 868600000 Hz |
Requires Smart Home Hub | Yes |
Country of origin | China |
CO₂ emissions | 22,11 kg |
Climate contribution | EUR 0,55 |
Items per sales unit | 1x |
Length | 69 mm |
Width | 18 mm |
Height | 90 mm |
Weight | 81 g |
Product Safety |
Length | 12.40 cm |
Width | 4.80 cm |
Height | 11.30 cm |
Weight | 180 g |
