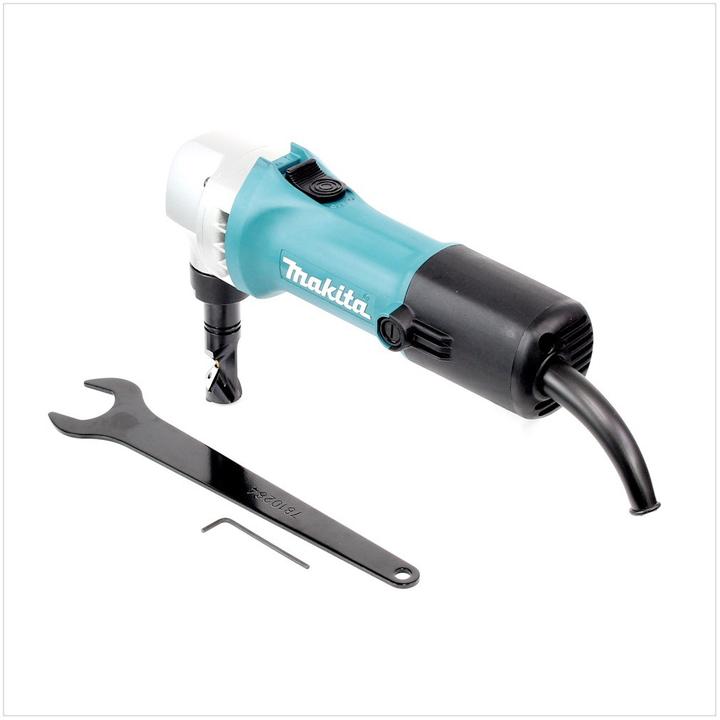

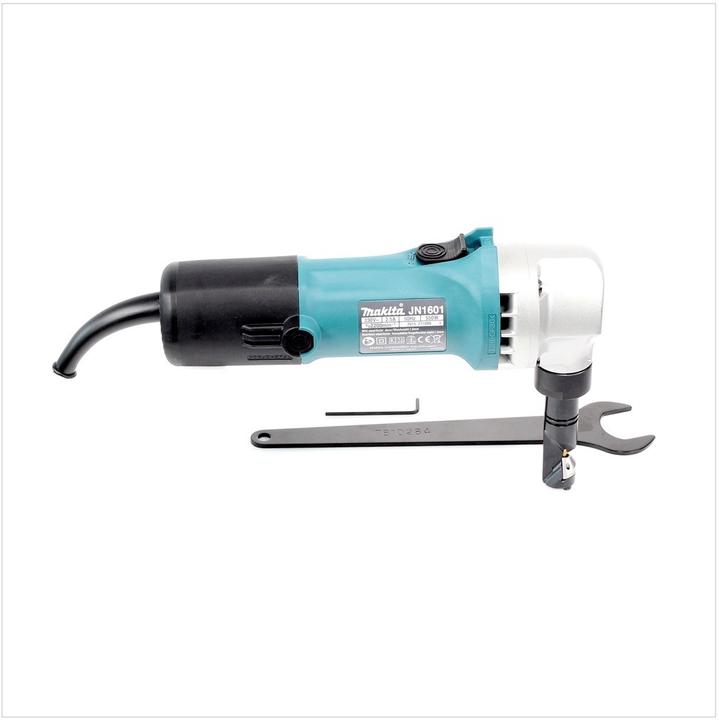

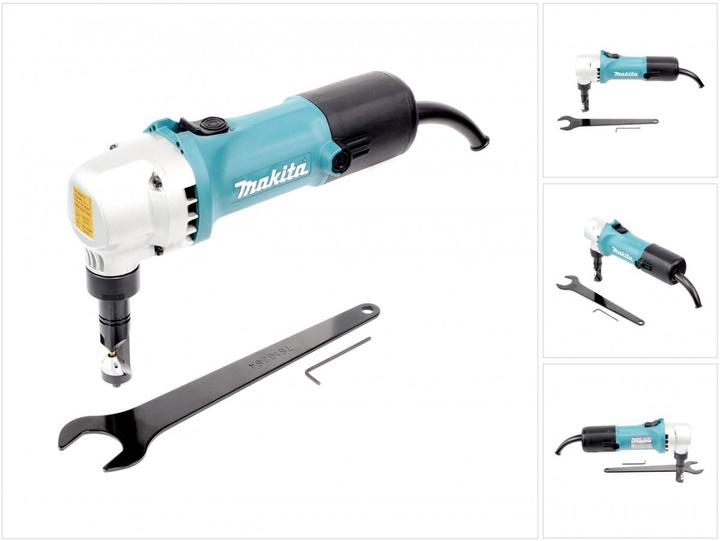

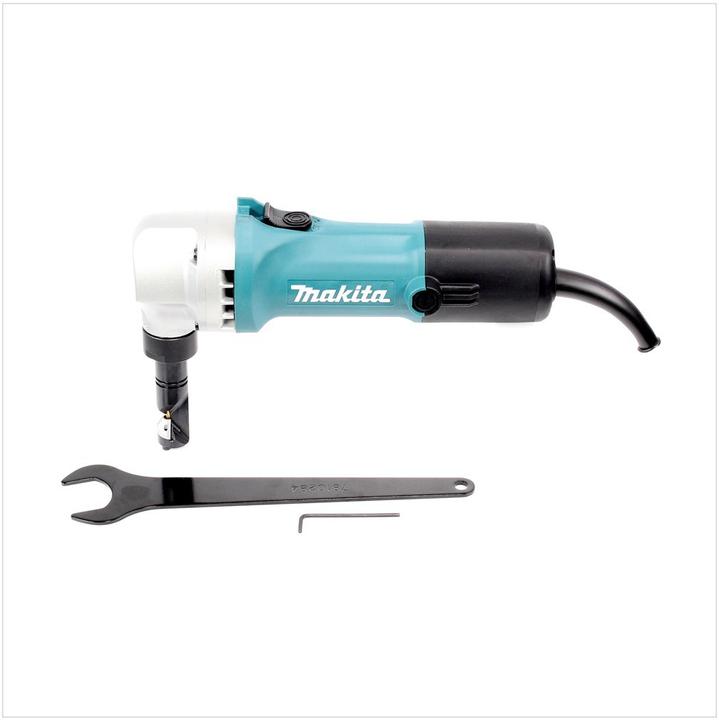

Delivery includes:

• 1x Makita JN 1601 nibbler
• 1x 6-point Allen key 2.5mm
• 1x Open-end wrench SW

Product description:

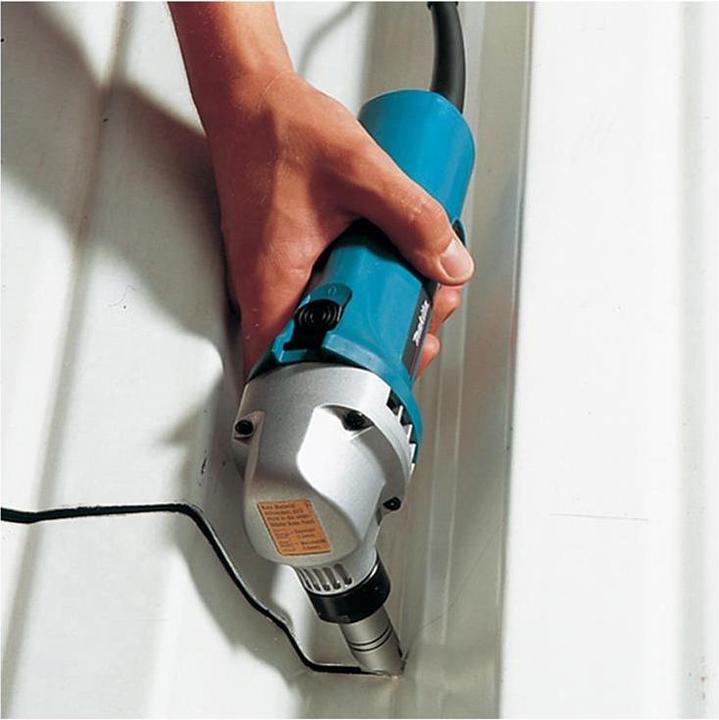

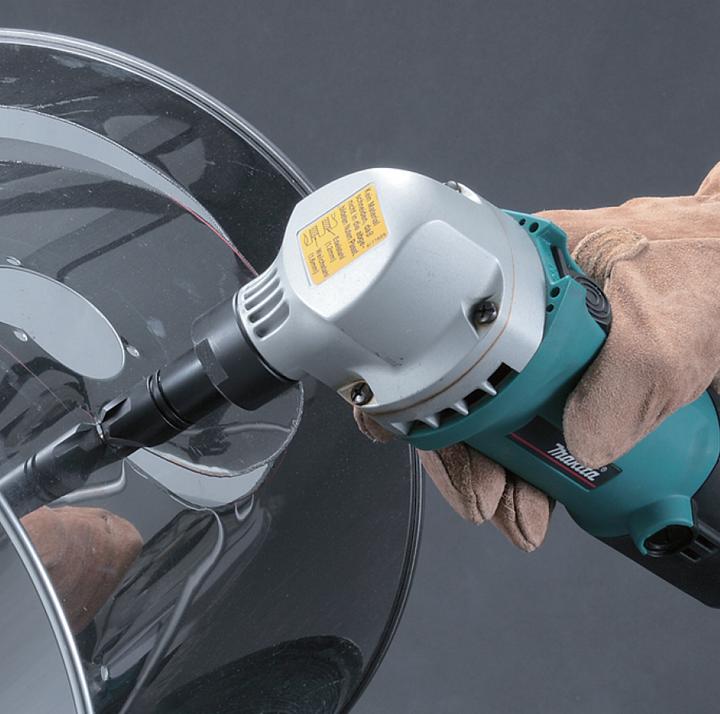

This tool is designed for cutting sheet steel and stainless steel sheet. The powerful and robust nibbler is perfect for working with sheet metal, corrugated, and trapezoidal sheets. Noteworthy is the infinitely adjustable and rotatable die that can be turned 360° with a 90° lock. The very slim design, measuring only 75 mm, is also striking, with a stroke height of a reasonable 7 mm, and a measuring groove for checking sheet thickness completes the device. The nibbler allows for clean and precise cutting of metal and other sheets.

Technical specifications:

Power consumption: 550 watts
No-load stroke rate: 2200 min-1
Cutting diameter: 22 mm
Cutting width: 5 mm
Smallest cutting radius: 45 mm
Cutting capacity at 200 N/mm²: 2.5 mm
Cutting capacity at 400 N/mm²: 1.6 mm
Cutting capacity at 600 N/mm²: 1.2 mm
Cutting capacity at 800 N/mm²: 0.8 mm
Dimensions (LxWxH): 261x75x177.5 mm
Weight: 1.6 kg
Sound pressure level: 83 dB (A)
Sound power level: 94 dB (A)
Uncertainty (K): 3 dB (A)
Vibration emission (cutting sheets): 7.0 m/s²
Uncertainty (K): 1.5 m/s²

For commercial use, please observe the building regulations.
