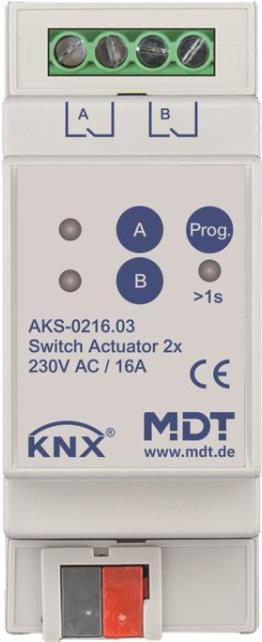

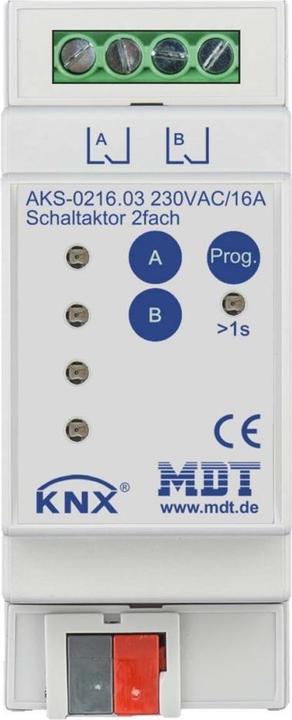

MDT technologies switch actuator 2-fold 2TE AKS-0216.03

Manufacturer: MDT technologies
Designation: Switch actuator 2-fold 2TE REG, 16A, 230VAC
Type: AKS-0216.03
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: REG
Width in subdivision units: 2
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 2500 W
Suitable for C load: Yes
Max. number of switching outputs: 2
Number of switching outputs: 2
Max. rated current: 16 A
Rated operating voltage: 230 V
Different phases can be connected: Yes
With bus coupling: Yes
Bus module can be removed: No
Modular expansion option: No
Protection class (IP): IP20

Further details:
Switch actuator 2-fold, 2TE, REG, 16A, 230VAC, C-load, standard, 140 MicroF. Standard version with bistable relay. Current max. 16A, capacitive load max. 140 MicroF. Extensive application. Manual operation lockable and LED indication per channel. Normally open and normally closed operation. Status indication for manual operation. Time functions (on/off delay, staircase lighting function). Extended logic and scene functions per channel. Extended status functions (inverted, cyclical, with lock). Threshold switch (byte/2byte/2byte float). Operating hours counter for switching. Priority/forced guidance with automatic release time. All L-connections separated. Supply voltage via KNX bus. Fast application download (long frame support for ETS5).
EAN: 4251916130299.
