Metabo KGS 18 LTX BL 305
Product details

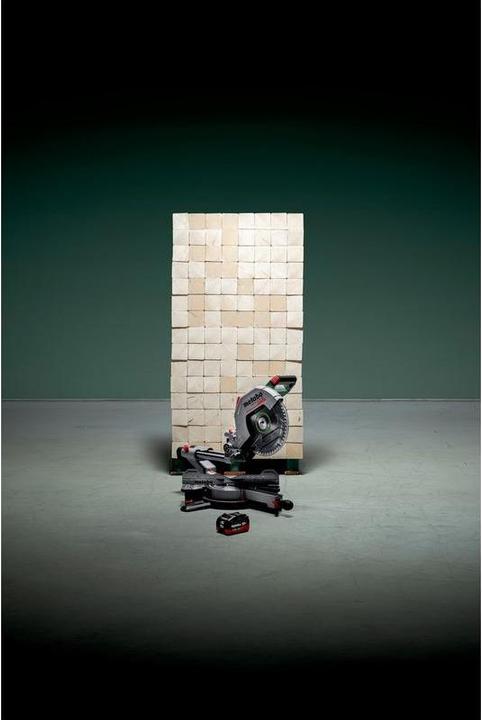

The largest battery-operated miter saw in the mobile M-class - lightweight, precise, user-friendly. Powerful brushless motor for powerful cutting like a corded machine. Up to 120 cuts in softwood 100 x 100 mm per battery charge (LiHD 10 Ah). Precise Cut Line (PCL): exact shadow cut line without readjustment thanks to cleverly placed LED. Large cutting depth through sliding function for wide workpieces. Rotating table with quick, precise adjustment of common angles via locking points. Saw blade tilt on both sides up to 47° for maximum flexibility. Robust construction from die-cast aluminum for the highest demands. Effective chip extraction via integrated chip collection funnel. Soft start and overload protection for long motor and gearbox life. Extendable table extensions, also removable, to support extremely long workpieces. Quick clamping device for secure fixation of the workpiece from above or from the front. Depth stop for easy groove production. All scales and controls are visible from the working position and intuitively operable. Ergonomic grip areas for transport with one or both hands. Many brands, one battery system: This product can be combined with all 18V battery packs and chargers from CAS brands.
Scope of delivery: Saw blade "Battery Cut Wood - Classic" 305x30 Z56, 2 integrated table extensions, miter cut stop, material clamp, tool for saw blade change, chip collection bag, 2 LiHD battery packs (18 V/8.0 Ah), fast charger ASC 145 "AIR COOLED".
Nominal diameter | 305 mm |
Max. depth of cut at 90° | 110 mm |
Battery voltage | 18 V |
Item number | 32522095 |
Manufacturer | Metabo |
Category | Chop saw + mitre saw |
Manufacturer No. | 614305810 |
Release date | 19.4.2024 |
Colour | Green |
Exact colour description | green / silver |
Suitable for | Wood |
Max. tilt adjustment | 47° |
Mounting hole | 30 mm |
Nominal diameter | 305 mm |
Number of teeth | 56 |
Max. depth of cut at 90° | 110 mm |
Max. Depth of cut at 45 | 67 mm |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Capacity | 8 Ah |
Battery voltage | 18 V |
Power capacity | 144 Wh |
Number of batteries | 2x |
Battery system | Cordless Alliance System 18V |
Battery equipment | 2 batteries supplied |
Charger equipment | Charger supplied |
Max. Idle speed | 3700 rpm |
Max. noise level | 98 dB |
Sound power level (LWA) | 107 dB |
Sound pressure level (LpA) | 98 dB |
Material group | Metal |
Material | Aluminium |
Country of origin | China |
Scope of delivery | Saw blade |
Length | 780 mm |
Width | 502 mm |
Height | 657 mm |
Weight | 17.40 kg |
Product Safety |
Length | 94 cm |
Width | 59.50 cm |
Height | 40.50 cm |
Weight | 25.08 kg |
