Largest cordless mitre saw in the mobile M-Class - light, precise, user-friendly. Powerful brushless motor for powerful sawing like with a mains machine. Up to 120 cuts in softwood 100 x 100 mm per battery charge (LiHD 10 Ah). Precision Cut Line (PCL): exact shadow cutting line without readjustment thanks to cleverly placed LED. Large cutting capacity thanks to pull function for wide workpieces. Turntable with fast, precise adjustment of common angles via locking points. Saw blade inclination up to 47° on both sides for maximum flexibility. Robust die-cast aluminium construction for the toughest demands. Effective chip extraction via integrated chip collection funnel. Soft start and overload protection for long motor and gearbox service life. Extendable table extensions, also removable for placing extremely long workpieces underneath. Quick-clamping clamp for secure fixing of the workpiece from above or from the front. Depth stop for easy production of grooves. All scales and controls can be seen from the working position and are intuitive to operate. Ergonomic grip areas for carrying with one or both hands. Many brands, one battery system: This product can be combined with all 18 V battery packs and chargers from the CAS brands. Scope of delivery: Saw blade "Cordless cut wood - classic" 305x30 Z56, 2 integrated table extensions, crosscut fence, material clamp, tool for changing the saw blade, chip bag, without battery pack, without charger.
Nominal diameter | 305 mm |
Max. depth of cut at 90° | 110 mm |
Battery voltage | 18 V |
Item number | 32522096 |
Manufacturer | Metabo |
Category | Chop saw + mitre saw |
Manufacturer no. | 614305850 |
Release date | 19.4.2024 |
External links |
Colour | Green, Silver |
Exact colour description | green / silver |
Suitable for | Wood |
Max. tilt adjustment | 47° |
Mounting hole | 30 mm |
Nominal diameter | 305 mm |
Number of teeth | 56 |
Max. depth of cut at 90° | 110 mm |
Max. Depth of cut at 45 | 67 mm |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Battery voltage | 18 V |
Battery system | CAS Cordless Alliance System 18V |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Max. Idle speed | 3700 rpm |
Max. noise level | 98 dB |
Sound power level (LWA) | 107 dB |
Sound pressure level (LpA) | 98 dB |
Material group | Metal |
Material | Aluminium |
Country of origin | China, Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 integrated table extensions, Chip collection bag, Cut-to-length stop, Material clamp, Saw blade "Cordless cut wood - classic" 305x30 Z56, Tool for changing the saw blade |

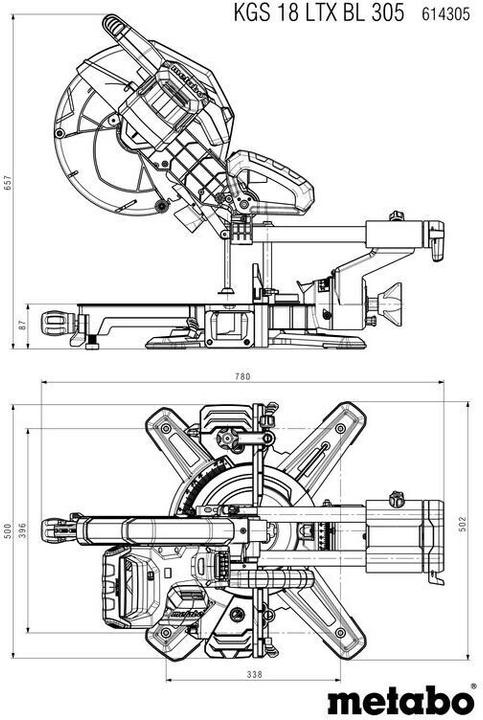

Length | 780 mm |
Width | 780 mm |
Height | 657 mm |
Weight | 17.40 kg |
Length | 91.10 cm |
Width | 59.10 cm |
Height | 38.10 cm |
Weight | 22.26 kg |
