Comfortable core drilling machine with guide rail. Time is money on construction sites, and accordingly, the demands on the machines used are high. The core drilling device from MSW provides generous power reserves for core drilling up to a diameter of 260 mm at 4,000 W and up to 750 RPM. It can work with a variety of diamond drills. The core drilling machine with stand handles drilling in concrete as well as in reinforced concrete, cement, masonry, asphalt, and natural stone. Drilling is possible in both horizontal and vertical directions. Thanks to a water connection, both wet and dry drilling are possible.

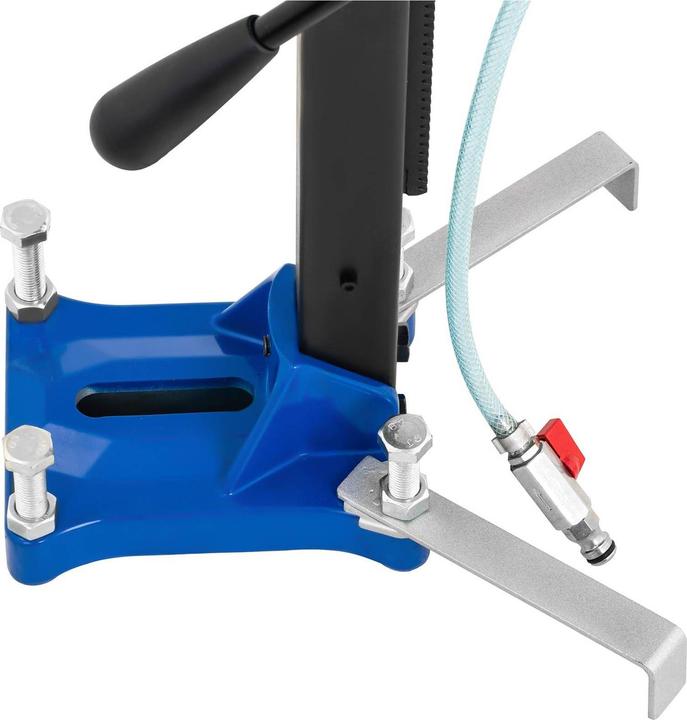

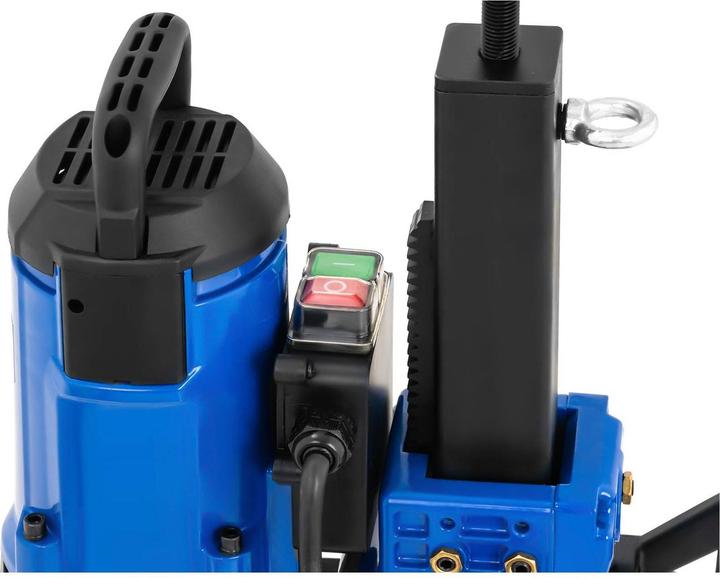

Material-appropriate drilling is enabled by the precise guide rail of the stand. The stroke height of 26 cm allows for deep drilling in various materials. The drilling machine is guided by a movable T-handle, which allows for precise control of the force applied to the spindle and diamond drill. This robust and compact powerhouse is reliably controlled via an intuitive on/off switch on the control panel. User safety and protection against damage to the core drilling machine are provided by the integrated residual current device in the cable.

Technical details:
Voltage: 230 V
Power: 4,000 W
Maximum drilling diameter: 260 mm
Core drill shank diameter: 1 ¼" UNC 7
Maximum speed: 750 RPM
Stroke height guide system: 0 - 260 mm
Water connection diameter: 13 mm
Wet drilling/Dry drilling: Yes / Yes
Residual current device in the cable: Yes
Cable length: 2.3 m

Delivery includes:
Core drilling machine MSW-DDM260, hex key, carbon brush, operating manual.
