Conductor cross-section: 0.2 mm²
AWG: 24 AWG
Stranding: 1/0.5 mm
Insulation material: PUR
Outer diameter: 0.56 mm
Length: 286 m
Wire type: EN 60317/20
Maximum operating temperature: +155°C
Cable type: Single-core

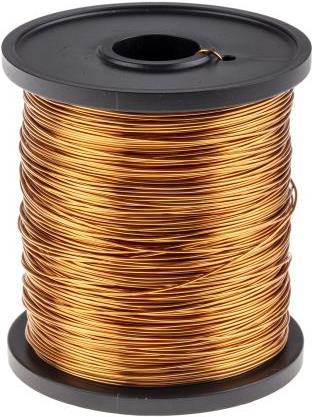

The insulated copper cable from RS Pro is a series of insulated copper wires delivered on practical plastic spools. The single-core copper wire has a thin layer of enamel that acts as excellent insulation, preventing short circuits and providing good chemical and thermal resistance. Insulated copper wires are particularly useful for manufacturing transformer windings, inductors, motors, relay windings, and other applications where tight windings are required. The copper wire from RS Pro is available in various diameters and AWG (American conductor size).

Features and benefits:

• Excellent insulation properties
• Copper provides good chemical and corrosion protection
• Self-extinguishing, coated with polyurethane
• Max. continuous temperature: +155°C

Applications:
Insulated single-core copper wires are used in a variety of applications in electronics manufacturing. The most common areas or applications include:

• Manufacturing of motor windings
• Transformer windings
• Inductors for electronics
• Relay windings
• Speaker windings
• Potentiometers.
