Conductor cross-section: 0.13 mm²
AWG: 26 AWG
Stranded wire: 1/0.4 mm
Insulation material: PUR
Outer diameter: 0.45 mm
Length: 400 m
Wire type: EN 60317/20
Max. operating temperature: +155°C
Standards: BASEC

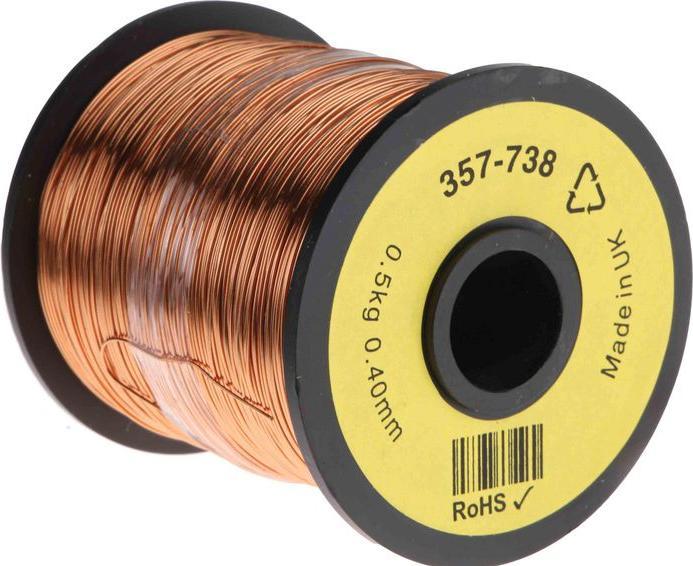

Insulated copper cable from RS Pro is a series of insulated copper wire supplied on convenient plastic spools. The single core copper wire has a thin enamel coating that acts as an excellent insulator, preventing short circuits and providing good chemical and thermal resistance. Insulated copper wire is particularly useful for making transformer windings, inductors, motors, relay coils, and other applications where tight coil windings are required. RS Pro copper wire is available in a variety of diameters and AWG (American conductor size).

Features and benefits:

• Excellent insulating properties
• Copper exhibits good chemical and corrosion protection
• Self-fluxing, polyurethane coated
• Max. continuous temperature: +155 °C

Applications:
Insulated single copper strands are used in a wide range of applications in electronics manufacturing. The most common areas or applications include:

• Manufacturing of motor windings
• Transformer windings
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers.
