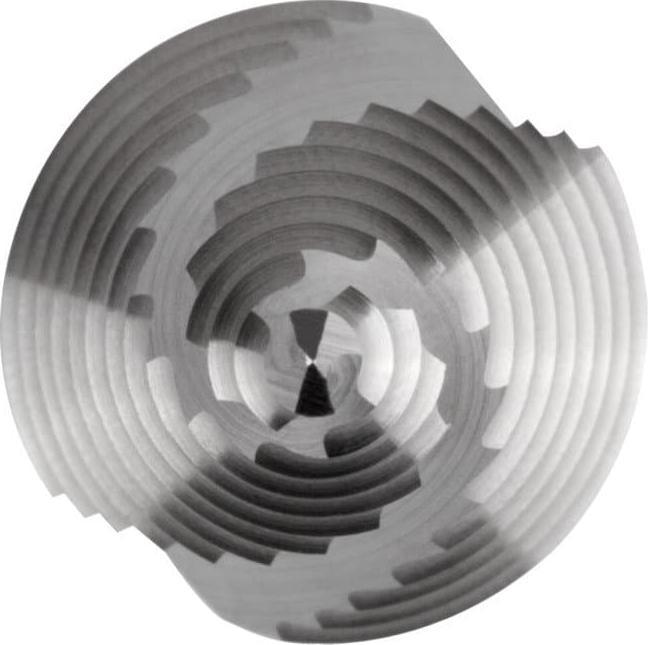

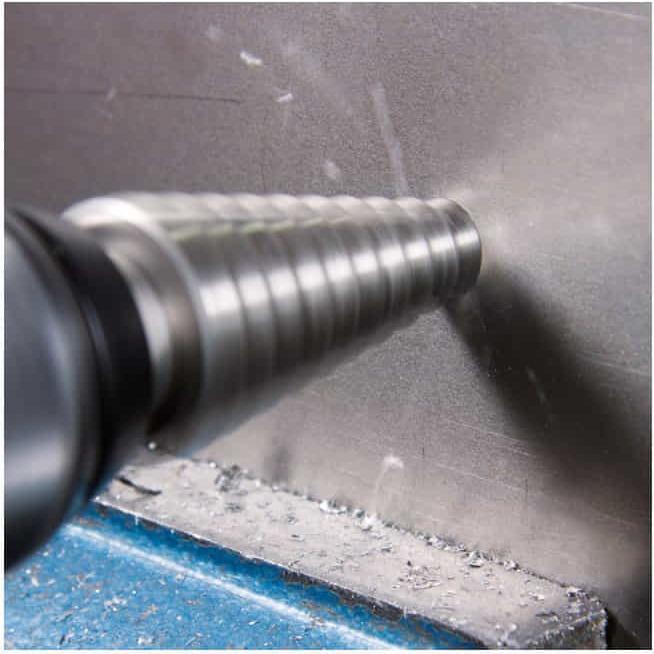

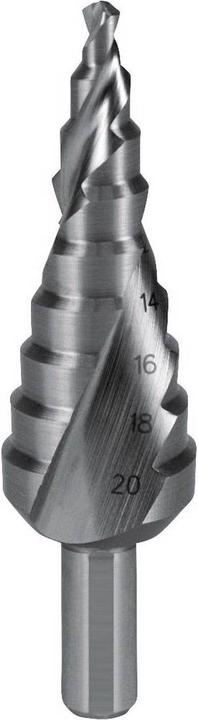

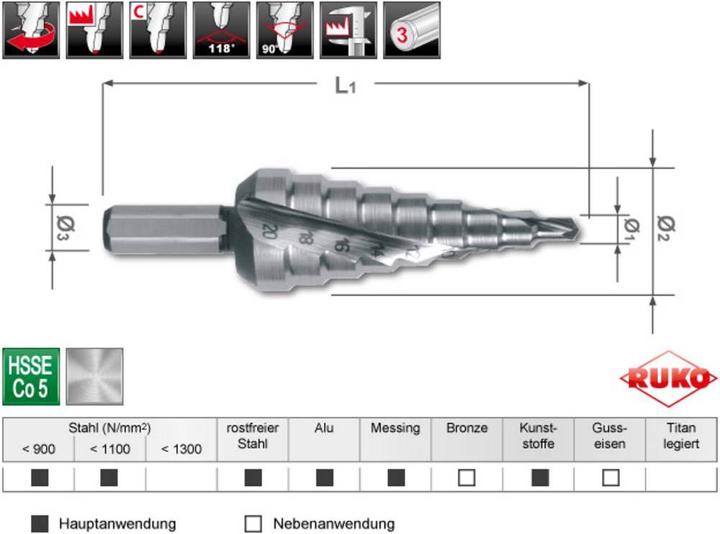

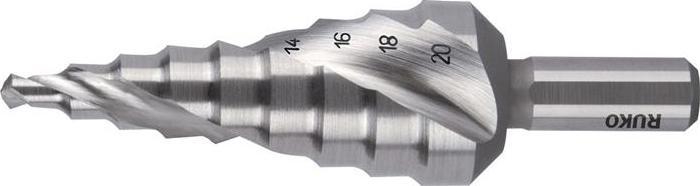

Drilling range 4.0 - 20.0 mm. Next generation - With this robust tool, sheets can be centered, pre-drilled, drilled, and deburred in a single operation. The deeply ground and spiral-shaped chip groove ensures absolute smooth operation and high cutting performance. In particular, non-breaking chips are transported away cleanly, similar to a spiral drill. This reduces the formation of built-up edges and cold welds on the cutting edges. The cone shape facilitates retraction when drilling through sheets. HSS Co 5: High-performance high-speed steel with a 5% cobalt content. High toughness and heat resistance, suitable for drilling in difficult-to-machine materials with a strength of up to 1100 N/mm².
| Material application | Aluminium, Brass, Plastic, Steel |
| Length | 10.20 cm |
| Drill diameter | 4 - 20 |
| Metal type | Steel |
| Item number | 14619330 |
| Manufacturer | Ruko |
| Category | Drill bit insert |
| Manufacturer no. | 101051E |
| Release date | 13.1.2021 |
| Sales rank in Category Drill bit insert | 30 of 25565 |
| Metal type | Steel |
| Material group | Metal |
| Material | HSS-Co 5 |
| Drill Type | Step drills |
| Material application | Aluminium, Brass, Plastic, Steel |
| surface finish | Coated |
| Suitable for | Aluminium, Brass, Iron, Plastic |
| Suitable for | Aluminium, Brass, Iron, Plastic |
| borehole size | 20 mm |
| Point angle | 118° |
| Country of origin | Germany |
| CO₂-Emission | |
| Climate contribution |
| Scope of delivery | 1 piece |
| Items per sales unit | 1 x |
| Drill diameter | 4 - 20 |
| Shaft diameter | 8 millimetres |
| working length | 75 mm |
| Length | 10.20 cm |
| Width | 2.40 cm |
| Height | 2.40 cm |
| Weight | 60 g |
| Length | 10.10 cm |
| Width | 2.30 cm |
| Height | 2.60 cm |
| Weight | 65 g |
