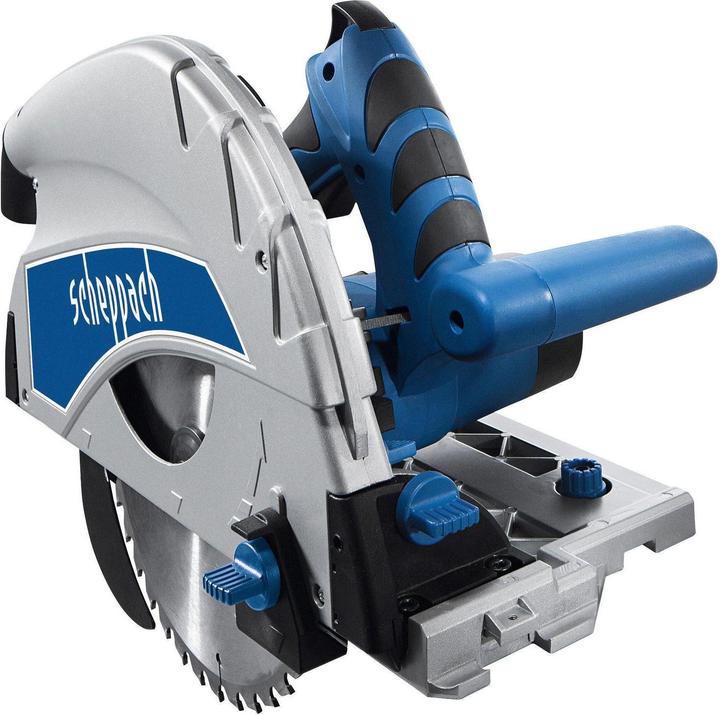

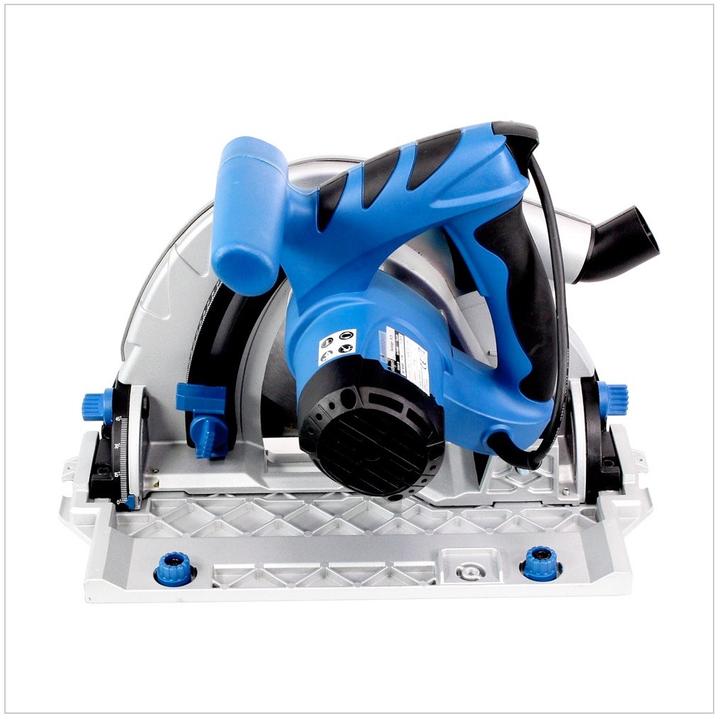

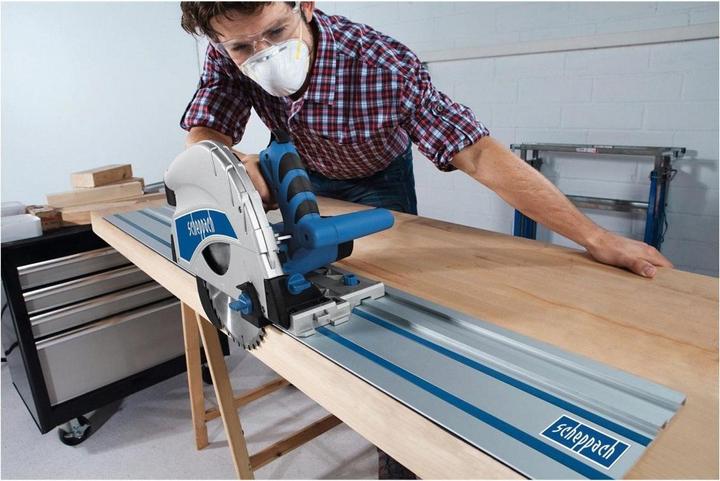

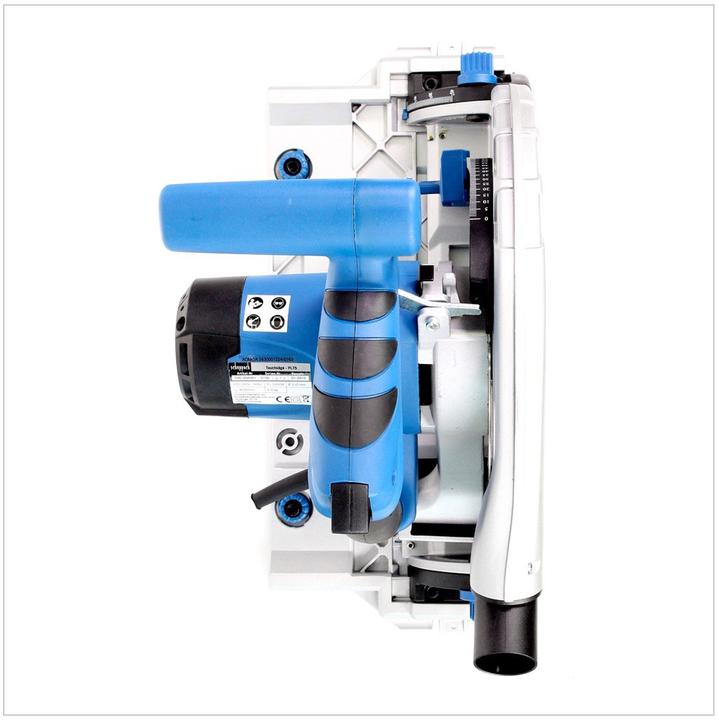

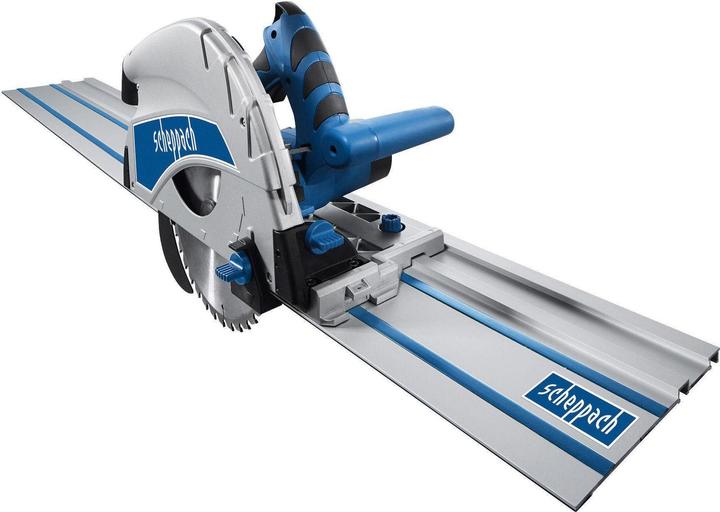

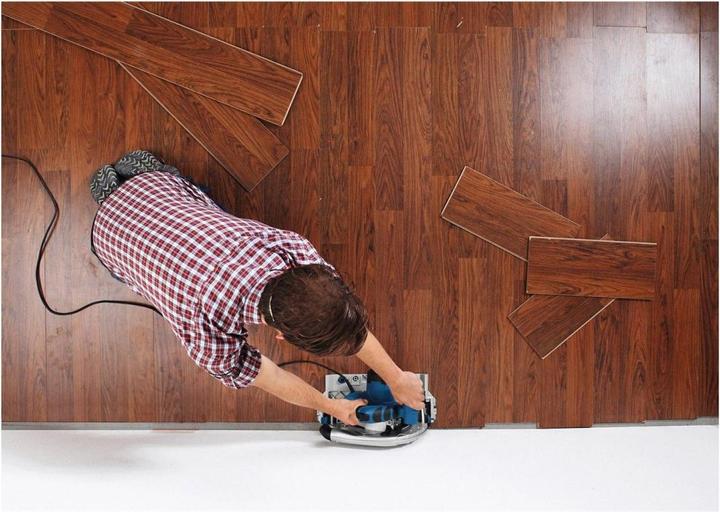

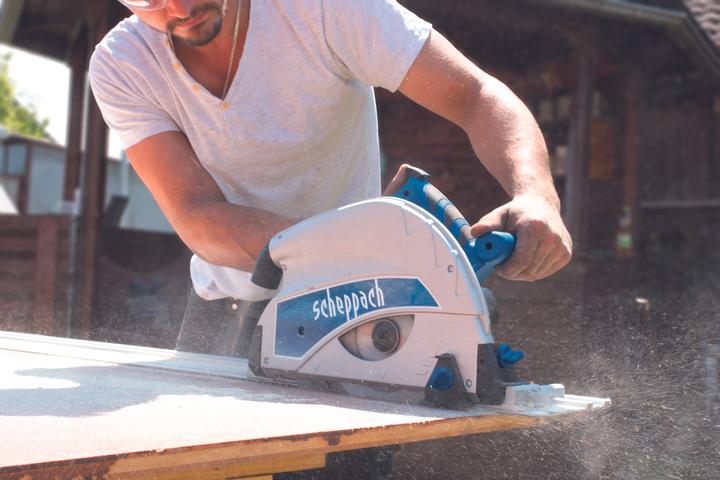

This plunge saw features a 210 mm blade. With this 3-in-1 saw, various precision cutting tasks can be performed that are nearly impossible with a conventional electric saw. This saw functions as a plunge saw, a portable hand saw, and a laminate saw. It is powered by a robust 1600-watt motor. The parallel plunge saw system remains in position at all times, ensuring a smooth finish while cutting.
The standard TCT blade with 36 teeth provides a fine and precise finish and is complemented by a riving knife for unobstructed plunge cutting. An integrated safety system ensures perfect dust extraction. The saw cuts up to 75 mm deep in an upright position, making it ideal for tasks such as cutting doors. At a 45° angle, the saw can cut 55 mm deep. It is suitable for sheet metal and solid wood. The distance between the wall and the saw is only 16 mm. It comes with a 3 m rubber electric cable. Tilt protection is included. The blade has a diameter of 210 mm and a bore size of 30 mm. It is adjustable between 0° and 45°. Ideal for cutting worktops.
Diameter saw blade | 210 mm |
Power supply | Electrical connection |
Weight | 7.60 kg |
Max. depth of cut at 90° | 75 mm |
Max. Depth of cut at 45 | 55 mm |
Max. Idle speed | 4500 rpm |
Documents | |
Item number | 21701078 |
Manufacturer | Scheppach |
Category | Hand-held circular saws |
Manufacturer no. | 4901804903 |
Release date | 15.5.2018 |
Colour | Blue |
Exact colour description | Blue |
Suitable for | Wood |
Mounting hole | 30 mm |
Tool holder | Spindle lock |
Diameter saw blade | 210 mm |
Max. depth of cut at 90° | 75 mm |
Max. Depth of cut at 45 | 55 mm |
Power supply | Electrical connection |
Capacity | 0 Ah |
Battery equipment | No batteries supplied |
Mains voltage | 230 V |
Cable length | 3 m |
Power | 1600 W |
Max. Idle speed | 4500 rpm |
Sound power level (LWA) | 95 dB |
Sound pressure level (LpA) | 95 dB |
Scope of delivery | only device ( without accessories ) |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 42 cm |
Width | 30 cm |
Height | 23.50 cm |
Weight | 7.60 kg |
Length | 41.20 cm |
Width | 29.90 cm |
Height | 27.70 cm |
Weight | 7.65 kg |
How often does a product of this brand in the «Hand-held circular saws» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Hand-held circular saws» category returned?
Source: Galaxus

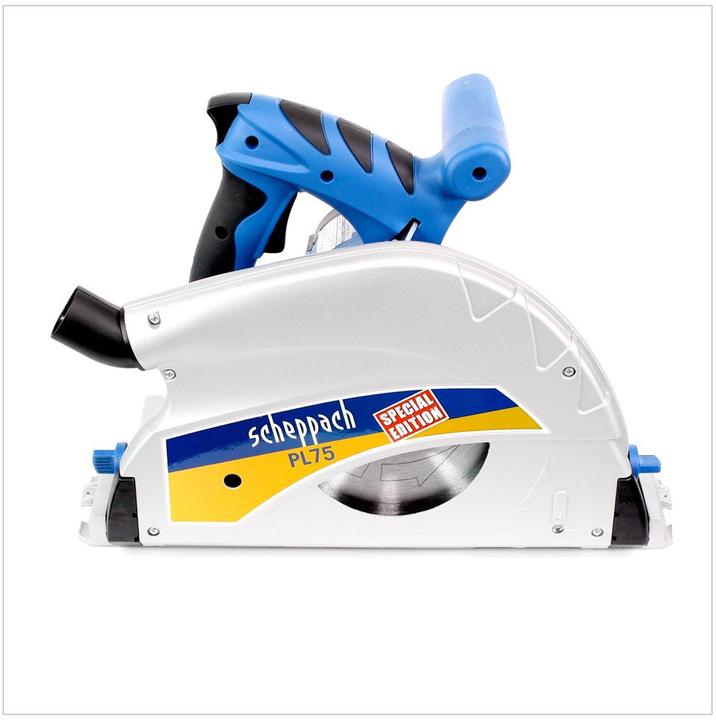

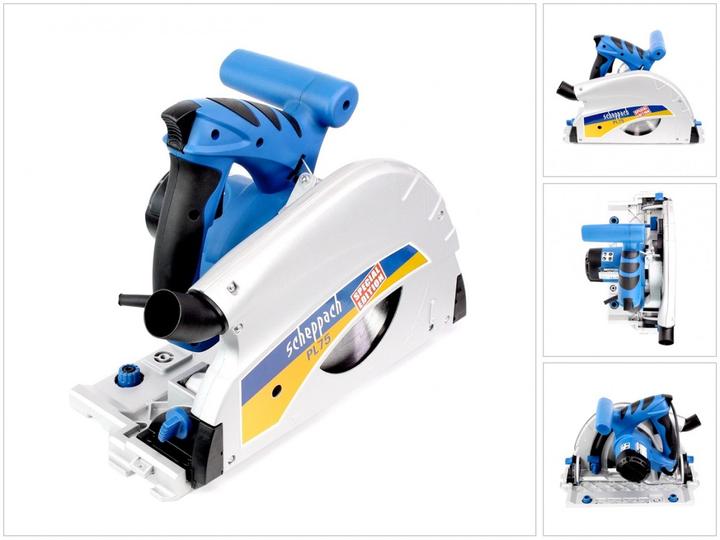

Are you looking for a hand-held circular saw that can also cut thicker material to size? Then you should take a closer look at the PL75 from Scheppach. In addition to a cutting depth of up to 75 mm, the saw is also suitable for plunge cuts and is therefore versatile.
