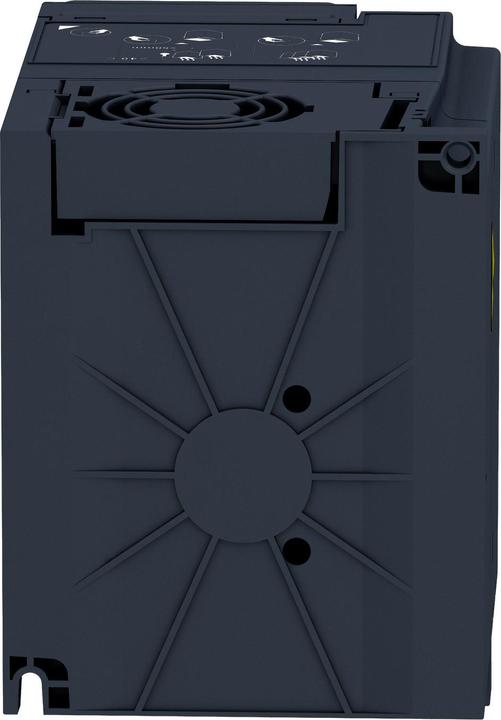

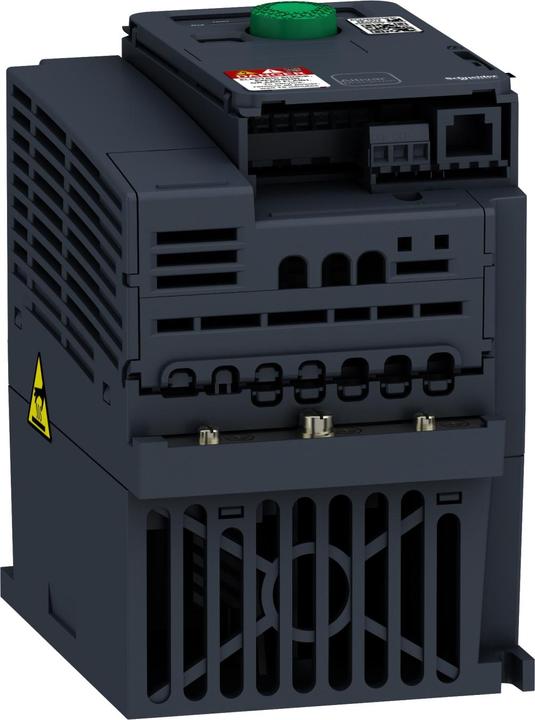

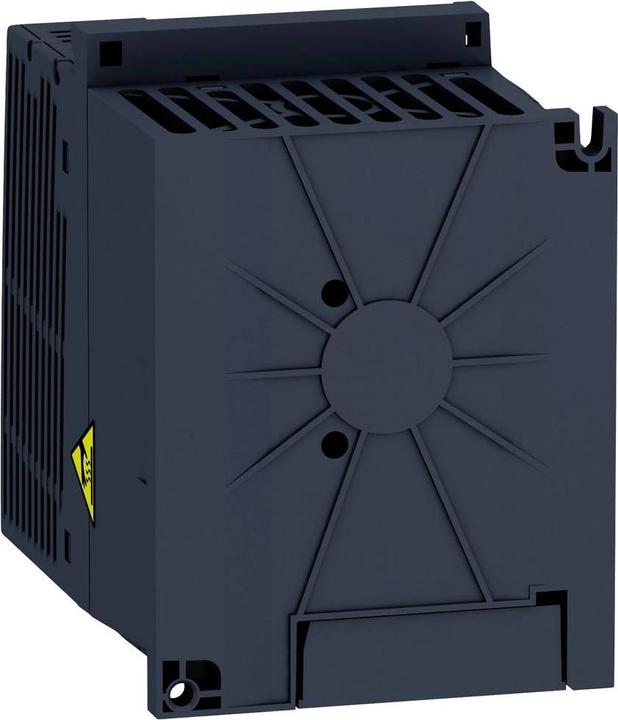

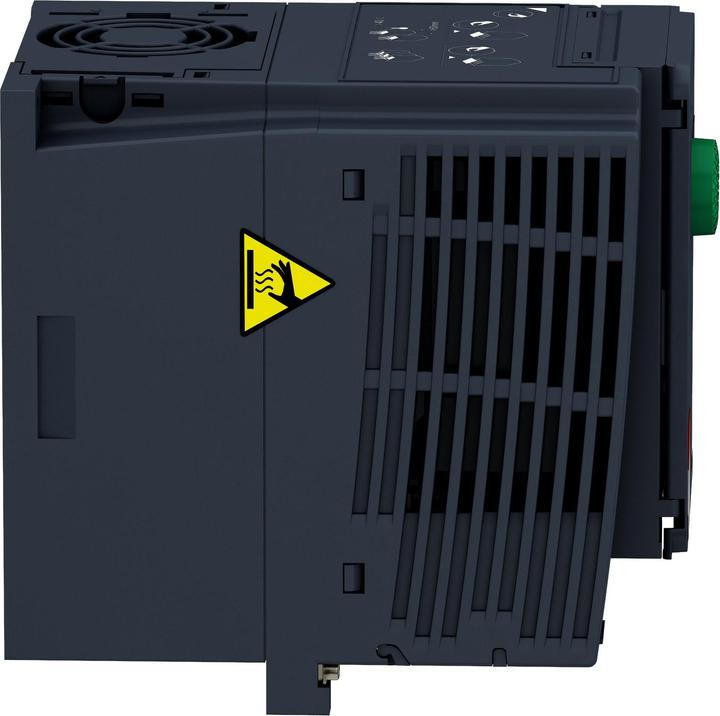

Schneider Electric ATV320 0.37KW 400V 3PH COMPACT VSD

Price in EUR including VAT
Delivered between Wed, 16.7. and Sat, 19.7.
Only 1 piece in stock at supplier
free shipping

Product details

Frequency inverter ATV320, compact. Dimensions 105 x 188 x 158 mm (with EMC plate), power 0.37 kW. Supply voltage 3-phase 380-500 V, 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation.

Description: Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe speed reduction (SLS), safe door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Simplest commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications.

Options for loading, editing, and saving the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated Class A radio interference filter, which can be deactivated. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched to digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.

Key specifications

Mains voltage
380 V
Output frequency
50 - 60 Hz
Power
0.37 kW
Supports protocol
AS-Interface Safety at WorkCAN
Protection type (IP code)
IP20
Item number
9719541

General information

Manufacturer
Schneider Electric
Category
Frequency converters
Manufacturer no.
ATV320U04N4C
Release date
24.9.2018

Colour

Colour
Black
Exact colour description
Black

Frequency inverter properties

Mains voltage
380 V
Input phase number
6 x
Output phase number
3 x
Output frequency
50 - 60 Hz
Electric current output
1.50 A
Power
0.37 kW
Relative symmetrical mains frequency tolerance
5 %
Relative symmetrical mains voltage tolerance
10 %
Type of inverter
U-inverter
Supports protocol
AS-Interface Safety at WorkCAN
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Width
10.50 cm
Depth
15.80 cm
Height
14.20 cm
