Phase: 3
Supply voltage: 110 to 480 V
Rated current: 12 A
Operating voltage: 480 V
Control voltage: 24 V DC, 110 to 240 V AC
Power: 5.5 kW
Protection class: IP20
Total length: 130.7 mm
Total width: 45 mm
Total depth: 145 mm
Operating temperature min: -10°C
Operating temperature max: +40°C
Series: ATS01

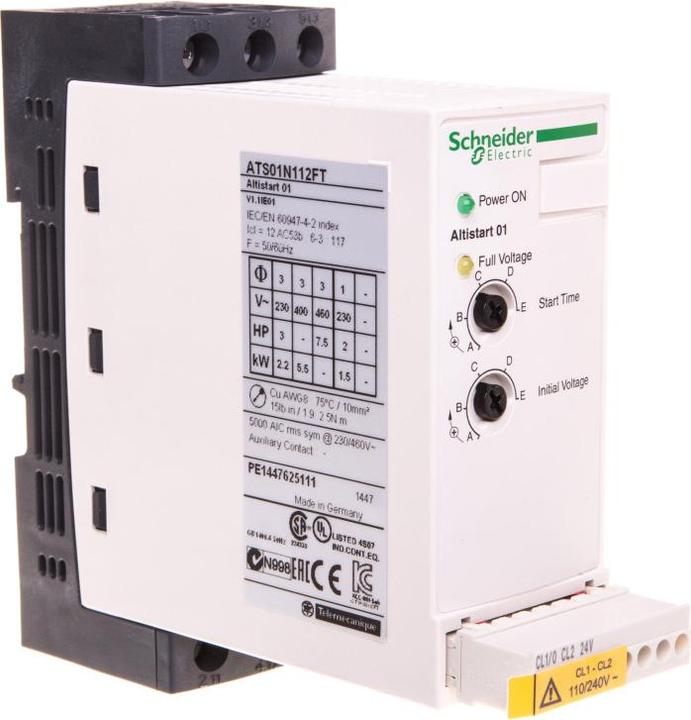

Specified ratings are for 400 V three-phase motors. These units can also be used for lower voltage three-phase motors and single-phase motors. For more information, refer to the technical data sheet. Altistart soft start for single-phase and three-phase motors.
