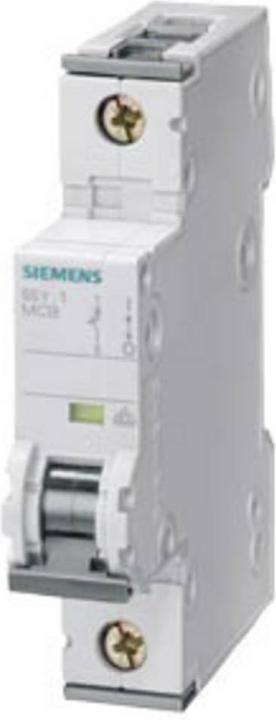

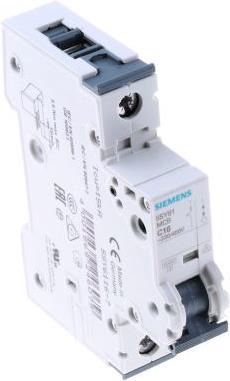

Area: Sentron
Series: 5SY6
Number of Poles: 1
Rated Current: 16 A
Tripping Characteristic: Type C
AC Rated Voltage: 230 V, 400 V
Breaking Capacity: 6 kA
Length: 89.8 mm
Width: 17.6 mm
Depth: 76.4 mm

EN 60898, VDE 0641 Part 11, IEC 60898. Miniature Circuit Breaker Sentron Series 5SY. Siemens miniature circuit breakers offer the highest quality and reliability. With the excellent technical features of the devices, you are always on the safe side. Additionally, you benefit from innovative mounting options that allow for quick and easy installation. Siemens miniature circuit breakers can be combined as needed with a variety of additional components, such as control circuit breakers, fault signal contacts, shunt releases, undervoltage releases, remote control mechanisms, or with RCD units for the protection of persons and against fire.

Features and Benefits:
Enclosure: IP20 device
Automatic disconnection, 1-, 2-, 3-, and 4-pole
DIN rail mounting
For use in industry and in the functional and residential construction sectors
Supports quick and convenient removal from the assembly.

Standards:
IEC 60898 – Relates to low-voltage circuit breakers for use in homes and similar installations. Traditionally known in the UK as miniature circuit breakers.

Q: What are the differences in the tripping characteristics B, C, and D?
A: Characteristic B: Tripping: 3 to 5 times the rated current. Applications: Protection of generators, persons, very long cables. Characteristic C: Tripping: 5 to 10 times the rated current. Applications: Protection of circuits and general applications. Characteristic D: Tripping: 10 to 14 times the rated current. Applications: Protection of high voltage circuits, welders, transformers, and motors.
