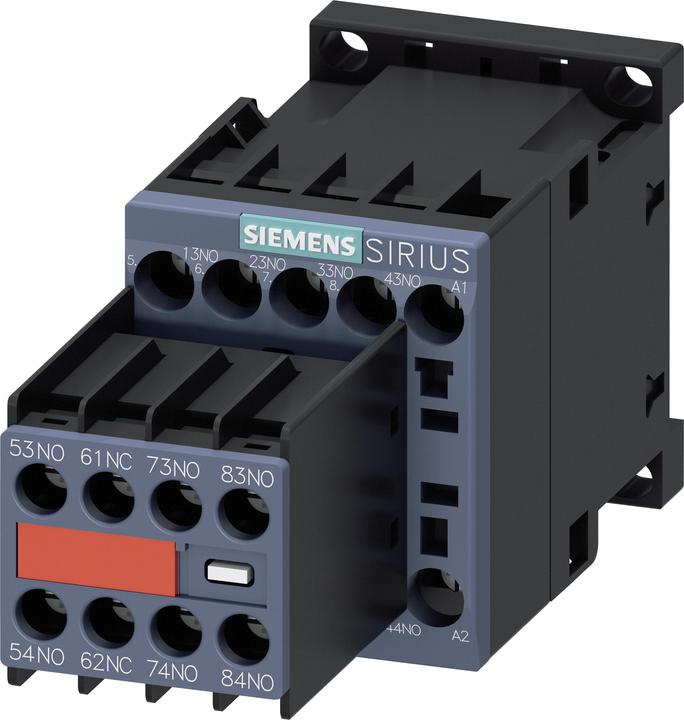

Siemens Dig.Industr. Auxiliary Relay 3RH2271-1BB40

Manufacturer: Siemens Dig.Industr.
Designation: Auxiliary Relay 7S+1OE DC24V
Type: 3RH2271-1BB40
Rated Control Supply Voltage Us at DC: 24 V
Voltage Type for Actuation: DC
Rated Operating Current Ie, 400 V: 3 A
Connection Type Auxiliary Circuit: Screw Connection
Interface: No
Number of Auxiliary Contacts as Normally Open: 1
Number of Auxiliary Contacts as Normally Closed: 7
With LED Indicator: No
Suitable for Manual Operation: No

Siemens Dig.Industr. Auxiliary Relay 3RH2271-1BB40: Additional Details
Auxiliary relay, 7 S + 1 Ö, DC 24 V, size S00, screw connection, auxiliary switch non-removable. SIRIUS 3RH2 auxiliary relay for switching control signals in the control circuit. The SIRIUS 3RH2 auxiliary relays have standardized connection designations and a reliable, time-saving connection technology. Output multiplication allows for simultaneous switching of multiple auxiliary circuits. All contacts are available with forced guidance for safety applications, also as SUVA variants. The auxiliary relays are climate-resistant, have high contact reliability, and are suitable for worldwide use due to appropriate approvals (e.g., IEC and UL/CSA). They are available for AC or DC actuation and come with screw or spring connection technology. The basic version of the auxiliary relays is 4-pole and can be expanded up to 8 poles with snap-on auxiliary switches. The extensive accessories of the 3RT2 relays for sizes S00 to S3 can also be used for the 3RH2 auxiliary relays. The 3RH2 auxiliary relays replace the proven 3RH1 series. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209947443.
