Features

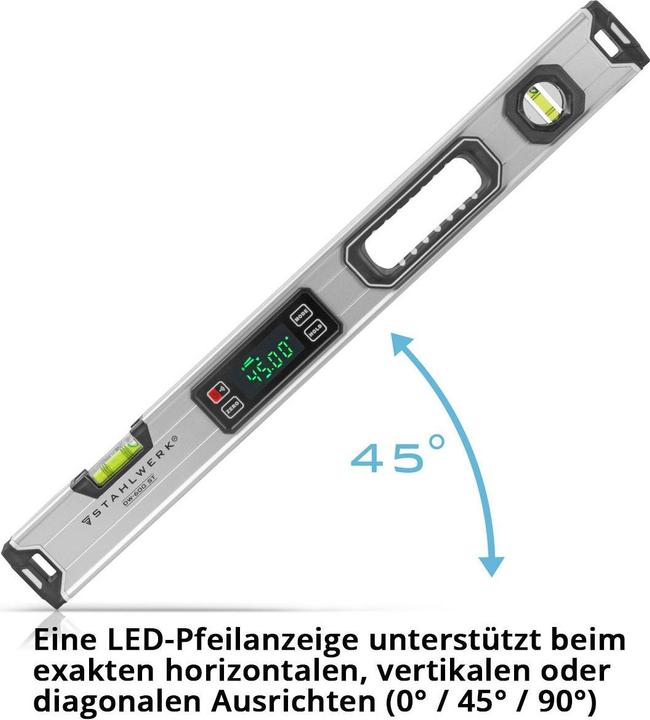

Essential on construction sites, during renovation work, in workshops, or at home - the STAHLWERK Digital Level impresses with its highest precision in measuring. The 600 mm long level features a horizontal and a vertical bubble level, and the measured values can be comfortably read on a clear, illuminated LED display. An LED arrow indicator assists in precisely aligning horizontally, vertically, or diagonally (0° / 45° / 90°). An acoustic signal can be optionally activated. A practical hold function allows the desired angle to be held and reproduced, while the zero button is used for calibrating according to individual requirements on-site. The measured values can be displayed in the units of degrees, percent, mm/m, and IN/FT. For overhead measurements, the display automatically rotates 180° to ensure optimal readability at all times. The inclinometer features an automatic shut-off function, which turns off the device after a few minutes of inactivity.

Technical Data

Model: STAHLWERK Digital Level DW-600 ST
Measuring range of the digital display: 4 x 90°
Resolution of the digital display: 0.05°
Display accuracy: ±0.1° - ±0.2°
Accuracy of the bubble level: 1.0 mm/m
Units: °Degrees | % | mm/m | IN/FT
Battery type: 2 x 1.5 V AAA (batteries not included)
Operating temperature: 0° ~ 40°C
Storage temperature: -10° ~ 50°C
Protection class: IP54

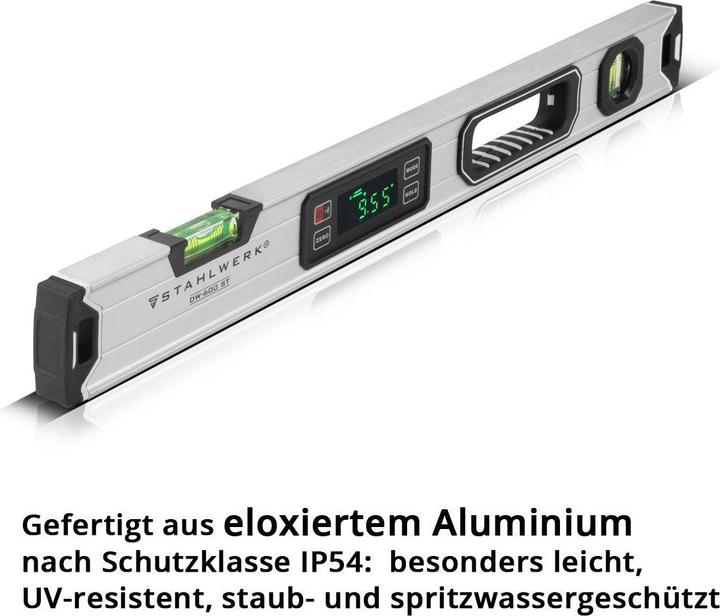

Materials: Anodized aluminum frame / End caps made of thermoplastic rubber

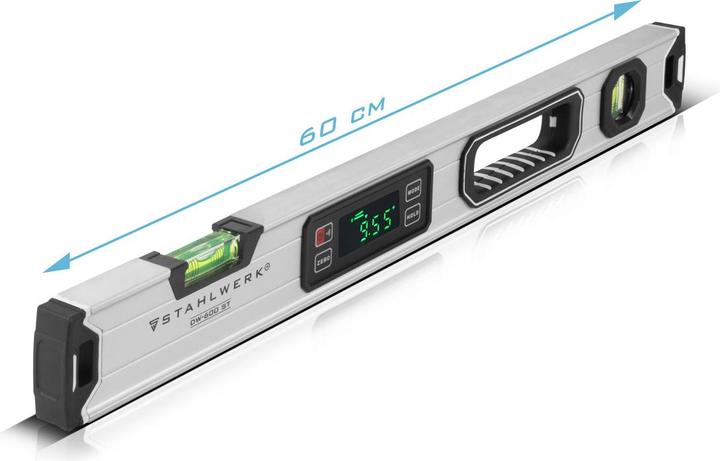

Dimensions (L x W x H): 600 x 28 x 62.5 mm

Scope of delivery

1 x STAHLWERK Digital Level DW-600 ST.
