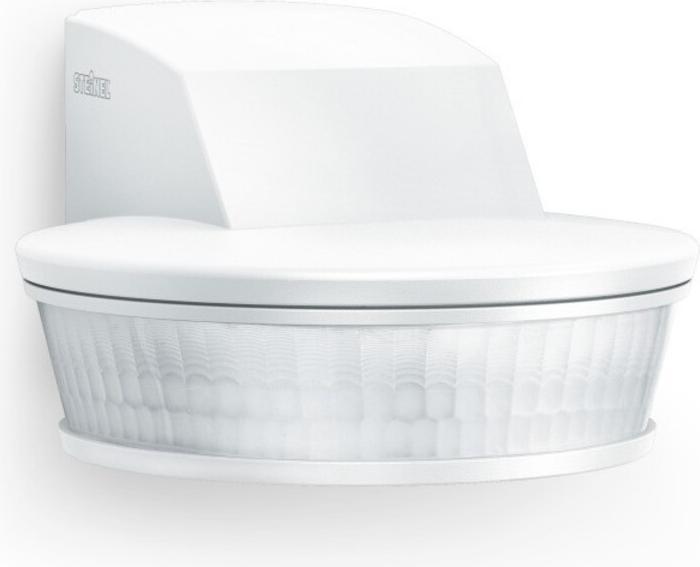

Steinel Motion Detector sensIQ S AP WS KNX

Manufacturer: Steinel
Description: KNX Motion Detector
Type: sensIQ S AP WS KNX
Bus System KNX Radio: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Design: Motion Detector
Mounting Type: Surface-mounted
Suitable for Wall Mounting: yes
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Color: white
RAL Number (similar): 9010
Transparent: no
With Bus Coupling: yes
Secondary Input: yes
Under-Creeping Protection/Backfield Monitoring: yes
Animal Channel: no
Stairwell Monitoring: no
Adjustable Response Brightness: yes
Teach Function for Response Brightness: yes
Optimal Mounting Height: 2 m
Max. Range to One Side: 20 m
Max. Frontal Range: 20 m
Detection Field Diameter on Floor: 8 m
Vertical Detection Angle: 180°
Horizontal Detection Angle: 300°
Number of Channels: 2
Min. On Duration: 60 s
Max. On Duration: 15 min

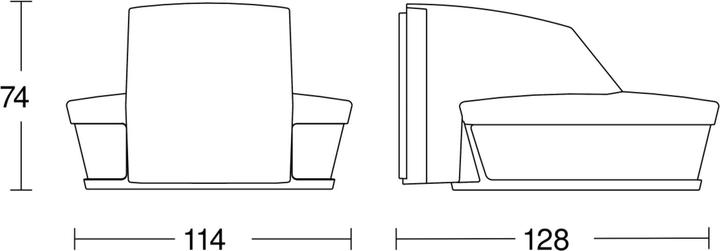

Width: 114 mm
Height: 74 mm

Steinel Motion Detector sensIQ S AP WS KNX: additional details

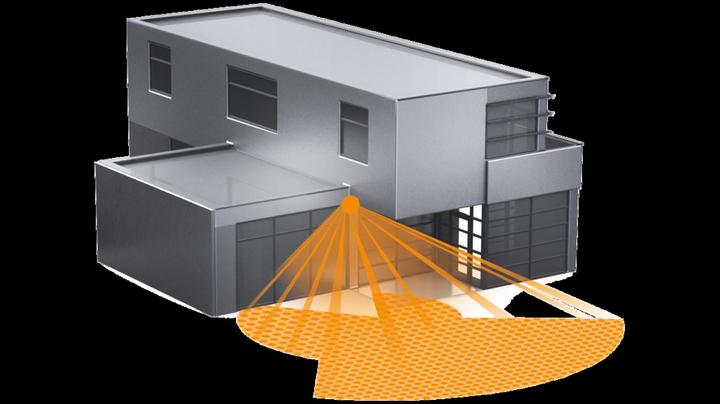

The evolution of perfection. The sensIQ S is as flawless as its larger counterpart. Suitable for both outdoor and indoor use, ideal for house entrances, loading ramps, up to 5 m mounting height, 4-fold sensor system for optimal monitoring within a 3x100° detection angle, 20 m range (tangential), precise range adjustment in 3 independent directions. Remote control and corner wall mount included.
EAN: 4007841059613.
