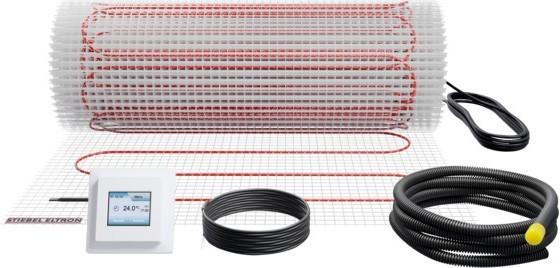

Stiebel Eltron Floor Heating FTM 100/2 Set Plus

Manufacturer: Stiebel Eltron
Description: Floor heating for 2 sqm, 200W/230V
Type: FTM 100/2 Set Plus
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 200 W
Power: 100 W/m²
Heating conductor load: 9 W/m
Resistance: 261 Ohm
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2 m²
Length: 4000 mm
Width: 500 mm
Thickness: 3 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

The thin-bed heating mats with high heating output are used in new buildings and renovations for floor heating, especially in bathrooms. They are installed directly under the floor covering and quickly provide a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as an additional or supplementary heating solution.

Comfort features: Due to the low installation height, the heating mat can be installed directly in the tile adhesive under ceramic coverings. The narrower installation width is particularly suitable for small, angled floor plans. In combination with a water-based underfloor heating system, the comfort of a warm floor can also be enjoyed outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.

Installation: The mat can be installed in the bathroom in conjunction with a residual current protective device. By cutting the carrier fabric, the mats can be easily adapted to individual space conditions.
