Stiebel Eltron Floor Heating FTM 160/5 Set Plus

Manufacturer: Stiebel Eltron
Description: Floor heating for 5 sqm, 800 W/230 V
Type: FTM 160/5 Set Plus
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 800 W
Power: 160 W/m²
Heating conductor load: 14 W/m
Resistance: 67 Ohm
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 5 m²
Length: 10000 mm
Width: 500 mm
Thickness: 3 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

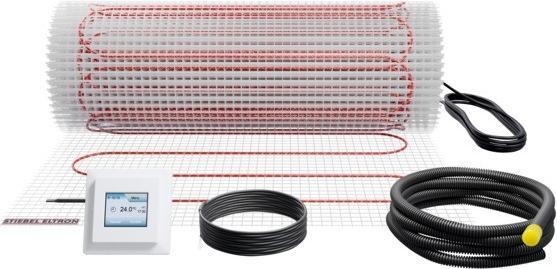

The set consists of the thin-bed heating mat, a controller, and the necessary installation materials. The thin-bed heating mats are used for floor heating in new buildings and renovations. They are installed directly under the floor covering and quickly provide a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as an additional or supplementary heating source.

Comfort features: Due to the low installation height, the heating mat can be installed directly in the tile adhesive under ceramic coverings. Under carpets and other floor coverings, installation is done in a leveling layer. In combination with a water-based underfloor heating system, the comfort of a warm floor is also achieved outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.

Installation: The mat can be installed in the bathroom in conjunction with a residual current device. By cutting the carrier fabric, the mats can be easily adapted to individual space conditions.

EAN: 4017212056974.
