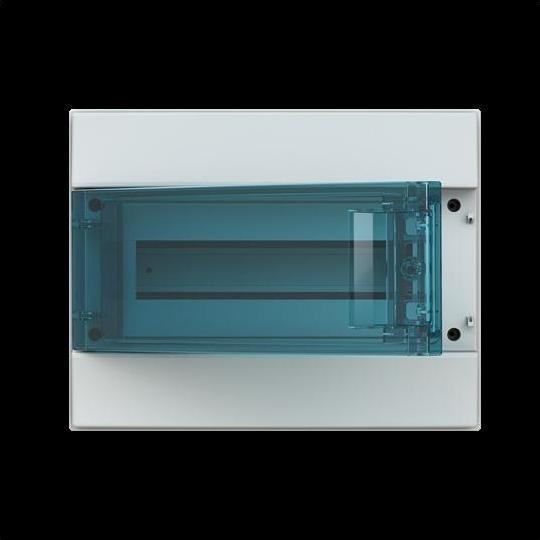

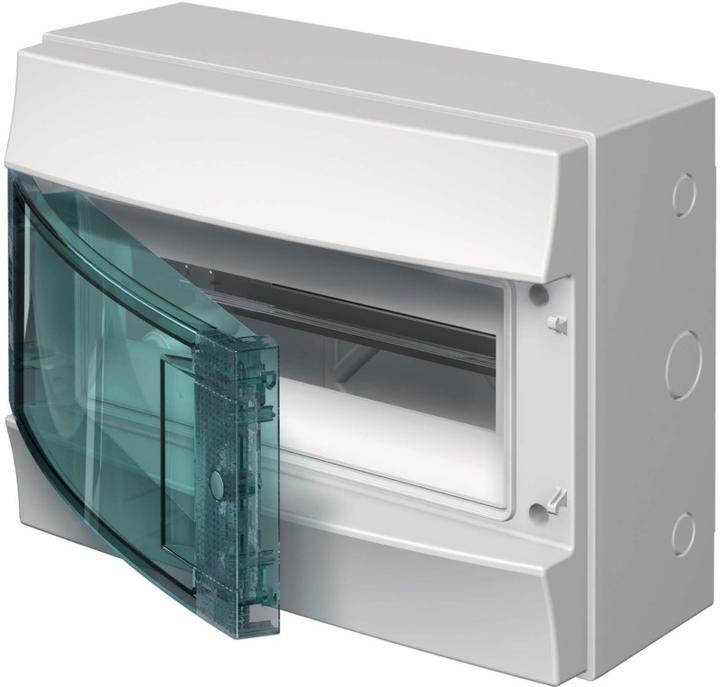

Striebel&John Surface-Mounted Distribution Board M65W112TN2

Manufacturer: Striebel&John
Description: Surface-mounted distribution board IP65 1x12
Type: M65W112TN2
Mounting type: Surface-mounted
Number of rows: 1
Width in division units: 12
Type of cover: Door
Cover design: with cutout
Transparent cover/door: yes
Material of the housing: Plastic
Height: 250 mm
Width: 320 mm
Depth: 155 mm
Installation depth: 84 mm
Internal depth: 98 mm
Ground terminal block: yes
Neutral terminal block: yes
DIN rail: yes
With mounting plate: no
Mounting option: yes
EMC version: no
Color: gray
RAL number: 7035
Protection class (IP): IP65
With lock: yes
Type of locking: other
Signal-passing door: no

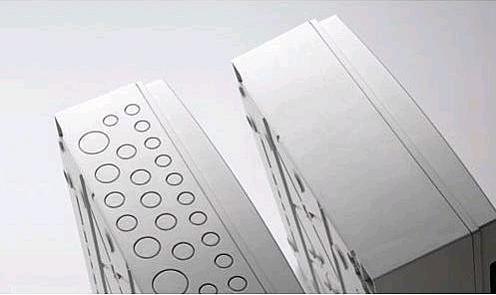

The circuit distribution boards of the Mistral65 series are designed for surface mounting. These boards are used indoors, for example, in industrial applications. The housings are supplied with a door and have upper and lower cable entry options. Furthermore, the housings feature a robust design (IK 09). They meet the protection class IP65 and have a rated current of 63A. Applicable standards are: DIN EN 60670-1, VDE 0606-1, DIN EN 60670-24, VDE 0606-24.
