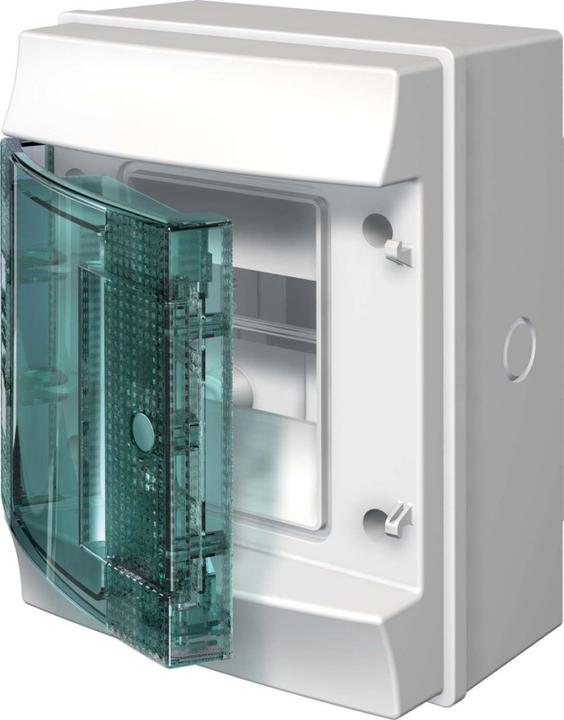

Striebel&John Surface-Mounted Distribution Board M65W104TN1
Manufacturer: Striebel&John
Designation: Surface-Mounted Distribution Board IP65 1x04
Type: M65W104TN1
Mounting Type: Surface-mounted
Number of Rows: 1
Width in Division Units: 4
Type of Cover: Door
Cover Design: Closed
Type of Door: Single
Transparent Cover/Door: Yes
Signal-Passing Door: No
With Lock: Yes
Type of Locking: Other
Material of Housing: Plastic
Installation Depth: 56 mm
Installation Height: 192 mm
Installation Width: 94 mm
Internal Depth: 68 mm
Earth Terminal Block: Yes
Neutral Terminal Block: No
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
UV Resistant: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
Height: 202 mm
Width: 152 mm
Depth: 117 mm

The Mistral65 series circuit distribution boards are designed for surface mounting. These boards are used indoors, for example in industrial applications. The housings are supplied with a door and feature upper and lower cable entry options. Furthermore, the housings have a robust design (IK 09). They meet the protection class IP65 and have a rated current of 63A. Applicable standards are: DIN EN 60670-1, VDE 0606-1, DIN EN 60670-24, VDE 0606-24.
