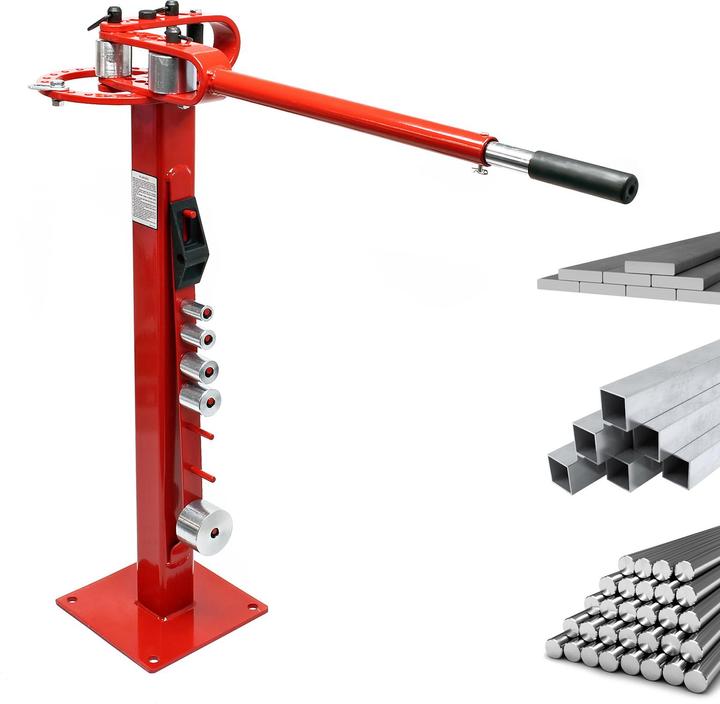

This compact bending machine with foot pedal is the ideal tool for various bending tasks. It is suitable for bending flat steel, construction steel, round steel, and square steel. The bending machine can bend steel in a wide range of thicknesses and widths, and it is even capable of radius bending up to 2000 mm. The machine offers versatile applications for both hobbyists and professionals. The base plate features 4 holes, allowing for secure mounting. Due to its compact size, the device is also perfect for mobile use.

Suitable for:

• Flat steel, construction steel, round steel, and square steel
• Radius bending
• Construction steel bending capacity: 8 mm x 31.75 mm or 6.35 mm x 50.8 mm

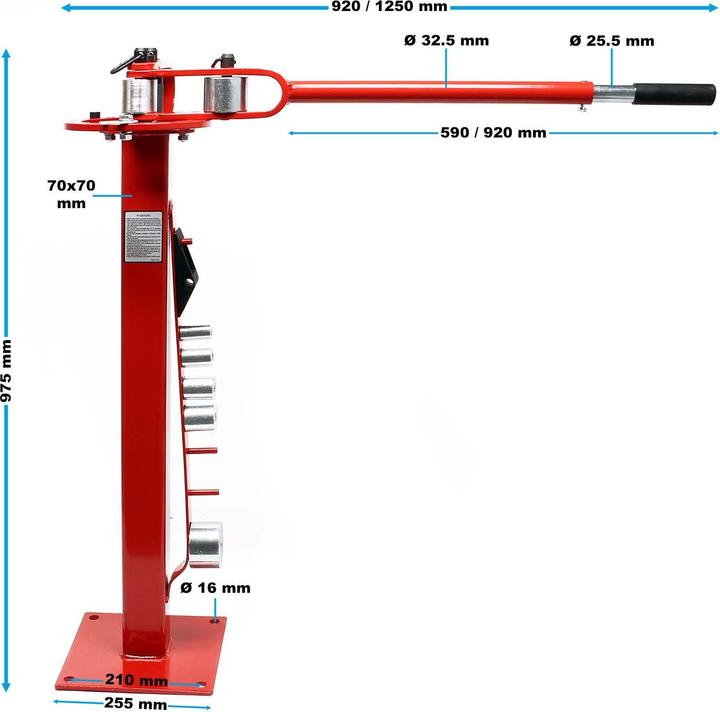

• Height: 38 cm
• Radius bending: 47.6 mm x 31.75 mm or 6.35 mm x 31.75 mm
• Center pin/stamp: 25 mm wide (1 bending form for greater width)
• Round steel: 12.7 mm (3 bending forms)
• Bending forms/dies: 25.4 mm, 31.75 mm, 38.1 mm, 44.45 mm, 50.8 mm, 63.5 mm, 76.2 mm
• Bending radius: 0–2000 mm

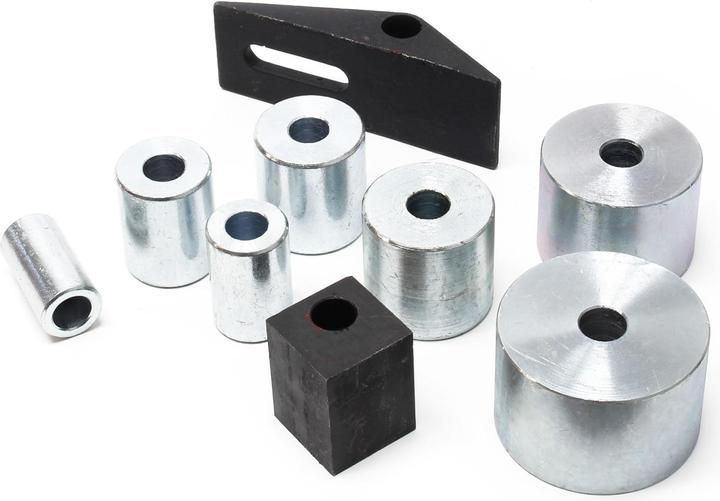

• Dies/bending forms:
• 25.4 mm (D1 ~1″)
• 31.75 mm (D1 ~1¼″)
• 38.1 mm (D1 ~1½″)
• 44.45 mm (D1 ~1¾″)
• 50.8 mm (D2 ~2″)
• 63.5 mm (D1 ~2½″)
• 76.2 mm (D3 ~3″)
• For square steel: 32 x 8 mm (H x T)
• For flat steel (with bending radius): 50 x 6 mm (H x T)
• For flat steel (with sharper bending edge): 50 x 4 mm (H x T).
