Best selling Lock cylinders from Dormakaba
On this page you’ll find a ranking of the best Lock cylinders from Dormakaba. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Dormakaba Hook latch lock for sliding doors SG
The SG hook bolt lock for sliding doors from Dormakaba is a reliable solution for modern sliding door systems. It is specifically designed for door handles without rosettes and offers easy installation with an 8 mm square spindle. The lock is suitable for a lock thickness of 44 mm and comes with a strike plate. The design is prepared for PZ, allowing for flexible use in various applications. Made from silver anodized aluminum, this product combines functionality with an appealing design. It is ideal for use in glass and sliding doors, providing high security and durability. Please note that the handle and cylinder are not included.
- Suitable for door handles without rosettes with 8 mm square spindle
- Includes strike plate for easy installation
- Made from silver anodized aluminum for durability
- Prepared for PZ for flexible application possibilities.
2. Dormakaba Doppelzylinder Kaba OPO 2, M1515/42.5/32
The KABA 8 Type 1515 double cylinder from Dormakaba is a high-quality solution for door security. Made from nickel-plated brass, this locking cylinder offers both durability and an appealing appearance. The matte finish provides an elegant look that harmoniously fits into various door designs. The cylinder is equipped with a mounting screw, allowing for easy installation. With three keys included, the KABA 8 Type 1515 is ideal for use in residential and commercial spaces where security and reliability are of utmost importance. The round shape of the cylinder enhances user-friendliness and ensures optimal functionality. This double cylinder is an excellent choice for anyone who values quality and security.
- Made from high-quality, nickel-plated brass
- Includes three keys for added convenience
- Easy installation with mounting screw M 5x75 mm.

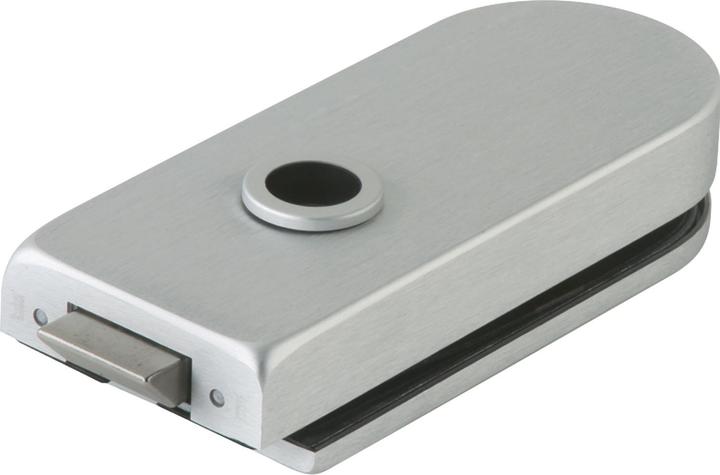

3. Dormakaba Glass door lock STUDIO Rondo Light metal silver anodised UV Handle guide front DIN left / right
With a semi-rounded cap end that points towards the center of the glass, this product is suitable for a glass thickness of 8 mm and a rebate depth of 24 mm, or for a glass thickness of 10 mm and a rebate depth of 26 mm. It can be used for DIN-left or DIN-right applications. Made from aluminum, it is designed for tempered safety glass with a thickness of 8 or 10 mm, with a maximum door leaf weight of 60 kg for OFFICE hinges or 80 kg. The dimensions of the lock case are 159 x 65 x 37 mm, and it complies with DIN 18 251, Class 3, with 200,000 operations of the bolt function and 50,000 operations of the locking bolt, featuring a fixed mounting according to DIN 18 257. It is suitable for 1- or 2-wing systems or systems with a side component and includes a lever handle guide, but without a lever handle.
Additional technical features include:
- Glass thickness: ESG mm
- Material: Lightweight metal
- Glass type: ESG
- Square: 8 mm
The delivery does not include a handle or hinges; please order separately.
Lock cylinders
EUR159,–
Dormakaba Glass door lock STUDIO Rondo Light metal silver anodised UV Handle guide front DIN left / right
4. Dormakaba Junior Office Classic Glass Door Lock
The Junior Office Classic glass door lock from Dormakaba is a high-quality solution for the secure and functional attachment of glass doors. It is specifically designed for glass thicknesses of 8 mm and 10 mm and offers an elegant and modern appearance that seamlessly integrates into various interior designs. The lock is suitable for door handles without rosettes and allows for easy installation. With a robust aluminum construction, it ensures durability and reliability in daily use. The product is delivered without a handle and cylinder and is equipped with two keys, providing additional security. The thoughtful design and the use of high-quality materials make this lock an ideal choice for offices and other commercial applications.
- Suitable for glass thicknesses of 8 mm and 10 mm
- Compatible with door handles without rosettes
- Robust aluminum construction
- Delivered without handle and cylinder, including two keys.

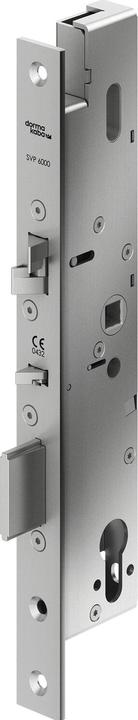

5. Dormakaba DORMA escape door lock SVP 6710, backset 35, forend 24 mm, right
Self-locking panic switch lock with split handle nut, optimized mechanical locking mechanism, and feedback via integrated monitoring contact. Function: compatible with cylinders of all types, including electronic and freewheeling cylinders. With status queries for detecting locked (> 90%), unlocked (< 10% of the bolt travel), door open/closed via control latch, as well as handle activation/panic release and cylinder contact. External handle is disengaged in power-off state (operating current) or engaged (standby current) and cylinder contact. The external handle is engaged or disengaged via control of the magnetic coil (e.g., by access control system). The handle in the escape direction is always engaged. The control of the external handle is generated via GND contact using a potential-free normally closed contact (operating current) or normally open contact (standby current). Permanent engagement of the external handle (e.g., for daytime operation) is possible. Two-point locking through spring pre-tensioning after door closure. Universal control latch (24 mm profile variants usable DIN L/R). Certified according to EN 14846. Panic release via handle according to EN 179 or panic bar according to EN 1125, also suitable for fire and smoke protection doors. Tested with compatible rod handles from BKS and ECO. Change function for unlocking via key from outside or engageable external handle. Steel bolt 20 mm excluding. 9 mm split square nut. Corrosion-protected lock case in DIN dimensions, profile and included strike plate made of stainless steel. Burglary protection up to RC-2 in suitable door systems possible. Power consumption: max. 0.4 A or 0.2 A, contact load: max. 30 V DC, 1.5 W. Universal connection to 12 V DC / 24 V DC (stabilized) without prior adjustment. Uniform connection via the SVP-A 1100 connection cable (to be ordered separately).
- Profile version: Flat profile square
- Case thickness (mm): 20
- Type: 6710
- Profile material: Stainless steel.
6. Dormakaba Zylinder KABA 8, Typ 1158, OPO3
The KABA 8 central locking cylinder, model 1158 from Dormakaba, is a high-quality solution for the security of desk containers, particularly for the HETTICH SYSTEMA TOP 2000. This product offers a reliable locking mechanism designed for use in office environments. The cylinder is made of robust brass and features a matte finish that is not only aesthetically pleasing but also provides high resistance to wear. The central locking cylinder is available without a key, allowing for flexible handling. With a length of 25 millimeters, it is ideal for various applications in office furniture.
- Made from high-quality brass for durability
- Matte finish for an appealing look and resistance
- Suitable for HETTICH SYSTEMA TOP 2000 desk containers.
7. Dormakaba Glass door lock OFFICE Junior light metal silver anodised UV DIN left
With rounded corners that point towards the center of the glass, this product is suitable for a glass thickness of 8 mm and a mounting depth of 24 mm, or for a glass thickness of 10 mm and a mounting depth of 26 mm. Made from aluminum, it is designed for safety glass with a thickness of 8 or 10 mm. The maximum weight of the door leaf is 80 kg. The dimensions of the lock housing are 105 x 175 x 36.5 mm, and it complies with DIN 18 251, Class 3, with 200,000 operations of the bolt function and 50,000 operations of the cylinder lock, equipped with a fixed mounting according to DIN 18 257. It is applicable for single or double-leaf systems or systems with side panels and includes a guide rod for the lever handle, but does not include a lever handle.
Additional technical features are:
- Glass thickness: ESG mm
- Material: Lightweight metal
- Glass type: ESG
- Square: 8 mm
The delivery does not include the handle and hinges; please order separately.
Lock cylinders
EUR115,83
Dormakaba Glass door lock OFFICE Junior light metal silver anodised UV DIN left

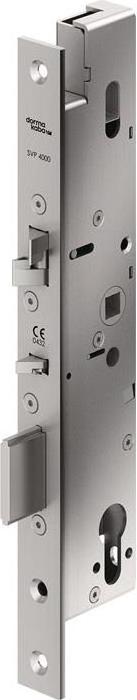

8. Dormakaba SVP 2271 Escape door lock mortise lock forend 20 mm left steel
Self-locking motorized panic lock with optimized mechanical and electrical fail-safe. Operating modes can be controlled directly via analog control, DCW-BUS, or CAN-BUS to TMS, Saferoute, and ED 100 / 250. Duisburg function: compatible with cylinders of all types, including electronic and freewheeling cylinders. Features status queries to detect "locked" (>90%), "unlocked" (<10% of the bolt travel), "door open/closed" via the control latch, as well as "handle operation/panic release" and "cylinder contact." Two-point locking through spring pre-tensioning after door closure. Universal control latch (24 mm bolt variants usable for DIN left and DIN right). Certified according to EN 14846. Panic release via handle according to EN 179 or panic bar according to EN 1125, as well as a change function for unlocking with a key from the outside. Tested with compatible rod handles from BKS and ECO.
Connection to 24 V DC. Burglary protection up to RC-2 in suitable door systems possible. Uniform connection via the SVP-A 1100 connection cable (to be ordered separately).
Scope of delivery: with strike plate
Nut design: one-piece Nut (mm): 9 Number of wings: 1 Bolt length (mm): 235 Bolt design: round Emergency exit function: E Bolt width (mm): 20 Backset (mm): 65 Distance (mm): 72 Box thickness (mm): 16.5 Bolt material: stainless steel Type: 2271 Box width (mm): 98 Box material: galvanized steel Direction: left Box height (mm): 165 Locking type: PZ Tested according to standard: EN 179, EN 1125 Brand: Dormakaba Quantity (ST): 1.
Lock cylinders
−22%
EUR1530,52 was EUR1959,–
Dormakaba SVP 2271 Escape door lock mortise lock forend 20 mm left steel
Mortise lock
9. Dormakaba Glass door lock Studio Classic
The Studio Classic glass door lock from Dormakaba is a high-quality solution for the secure and stylish installation of glass doors. It is specifically designed for glass thicknesses of 8 mm and 10 mm, offering an elegant way to mount doors without rosettes. The lock features an 8 mm square spindle, allowing for easy integration with various door handles. The aluminum construction ensures durability and stability, while the transparent design provides a seamless aesthetic. The glass door lock is suitable for leaf weights of up to 8 kilograms and offers reliable functionality in modern interiors. It is an ideal choice for those who value security and design.
- Suitable for glass thicknesses of 8 mm and 10 mm
- Compatible with door handles without rosettes
- Made from durable aluminum
- Maximum leaf weight of 8 kilograms.
10. Dormakaba Glass door lock OFFICE Junior Light metal Dark Niro UV DIN right
With rounded corners that face the center of the glass, this product is suitable for a glass thickness of 8 mm and a rebate depth of 24 mm or for a glass thickness of 10 mm and a rebate depth of 26 mm. Made from aluminum, it is designed for tempered safety glass with a thickness of 8 or 10 mm. The maximum weight of the door leaf is 80 kg. The dimensions of the lock case are 105 x 175 x 36.5 mm, and it complies with DIN 18 251, Class 3, with 200,000 operations of the bolt function and 50,000 operations of the cylinder lock, equipped with a fixed mounting according to DIN 18 257. It is applicable for single or double-leaf systems or systems with a side panel and includes a lever handle guide, but no lever handle.
Additional technical features include:
- Glass thickness: tempered safety glass (ESG) mm
- Material: lightweight metal
- Glass type: ESG
- Square: 8 mm
The delivery does not include a handle or hinges; please order separately.
