Residual-current device
EUR22,39
Schneider Electric Automatic control unit B 32A 3-pole R9F23332 Resi9
Best selling Residual-current devices from Schneider Electric
This page always stays fresh and updates automatically.
1. Schneider Electric Automatic control unit B 32A 3-pole R9F23332 Resi9
Schneider Electric Circuit Breaker R9F23332
Manufacturer: Schneider Electric
Designation: Circuit Breaker 3P, 32A
Type: R9F23332
Installation Depth: 44 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 32 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 3.2 W
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: no
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature During Operation: -25..60 °C
Connectable Conductor Cross-section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-section Solid: 1..35 mm²
Explosion Protected: no
Schneider Electric Circuit Breaker R9F23332: additional details
Resi9 circuit breaker, 3-pole, 32A, characteristic B. Switching capacity of 6kA according to IEC/EN 60898-1. Dual-function terminal for cables and fork busbar at the bottom of the device. Rear-mounted DIN rail fastening element at the bottom of the device. Spring mechanism for low-wear and user-independent switching of contacts. Color shade RAL 9003.
2. Schneider Electric Acti9 iMX tripping unit 100-415VAC
Range: Acti 9
Series: iMX
Type: Shunt release
Control voltage: 100 to 415 V AC, 110 to 130 V DC
Auxiliary contacts: Auxiliary electrical components are combined with iC60 circuit breakers, iID residual current circuit breakers, iSW-NA remotely tripped disconnect switches, RCA remote controls, and ARA automatic make contacts. They provide trip or remote indication of their position (open/closed/tripped) in the event of a fault.
Tripping auxiliary components:
- iMN: Undervoltage release
- iMNs: Undervoltage release with delay
- iMNx: Undervoltage release, independent of supply voltage
- iMX: Shunt release
- IMX + OF: Shunt release with NC/NO contact
Indicator auxiliary components:
- iOF: Normally closed/normally open contact
- iSD: Fault indication contact
- IOF/SD + OF: Normally closed/normally open contact and switchable OF or SD contact.
Residual-current device
−10%
only 1 piece
EUR15,58 was EUR17,31
Schneider Electric Acti9 iMX tripping unit 100-415VAC

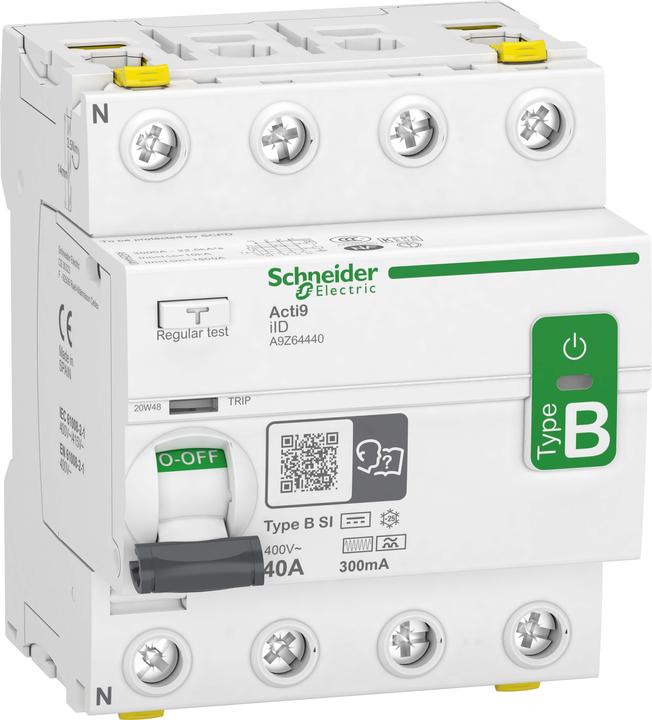

3. Schneider Electric CUTTER ELECT A9Z64440
The Schneider Electric A9Z64440 is an all-current sensitive residual current circuit breaker (RCCB) designed for use in electrical installations. With a rated current of 40 A and a rated residual current of 300 mA, this 4-pole switch provides reliable protection against residual currents that can be caused by various electrical disturbances. The Type B-SI is particularly suitable for applications that exhibit smooth direct current residual currents, such as those generated by frequency converters or inverters. The switch operates at a supply voltage of 400 V AC and is suitable for use in single-phase or three-phase supply networks. Safety features include a mechanical fault indication (VisiTrip) and a safe contact indication (VisiSafe), which provide clear feedback on the device's status. The A9Z64440 meets relevant standards and offers easy installation as well as the option to connect additional auxiliary modules.
- Mechanical fault indication (VisiTrip) to show tripping due to residual current
- Safe contact indication (VisiSafe) to ensure voltage-free status on the outgoing side
- Double connection terminals for connection of cables or busbars from both sides
- Easy removal of the individual device with installed busbar thanks to front-accessible fastening element
- Type B-SI with integrated SI technology for greater resilience against electrical disturbances.

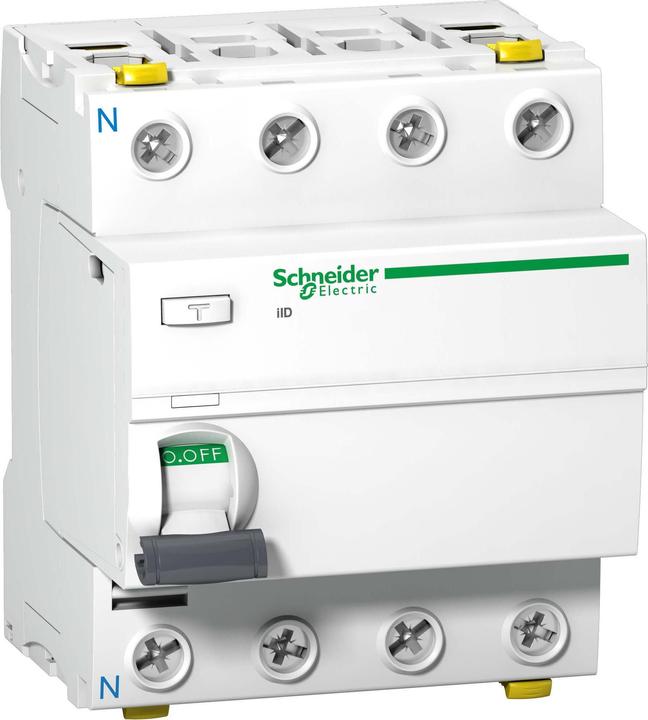

4. Schneider Electric Residual current circuit breaker
The iID residual current circuit-breaker from Schneider Electric is a sophisticated safety device designed for use in electrical installations. With a rated current of 63A and a rated residual current of 300mA, this 4-pole circuit breaker offers reliable protection against residual currents that can be caused by electrical faults or defects. The integrated SI technology enables improved resistance to electrical interference, making it particularly suitable for applications with frequency converters and inverters. The switch is designed for an operating voltage of 400V AC at 50Hz and fulfils the relevant standards to ensure the highest safety standards. The simple mounting on a top-hat rail and the option of stringing together auxiliary modules make it a flexible solution for various installation requirements. With functions such as the mechanical fault indication and the test button for regular function testing, this residual current circuit breaker is a reliable choice for protecting electrical systems. Mechanical fault indication (VisiTrip) to indicate tripping due to residual current. Safe contact indicator (VisiSafe) to ensure the absence of voltage. Double connection terminals for connecting cables or phase busbars on both sides. Easy removal of the individual device when the phase busbar is installed. Optional add-on auxiliary modules for additional functions.
5. Schneider Electric Compact circuit-breaker
Schneider Electric moulded-case circuit-breaker C11H3TM080L
Manufacturer: Schneider Electric
Designation: ComPacT NSXm 80 A moulded-case circuit-breaker
Type: C11H3TM080L
Rated continuous current Iu: 80 A
Rated voltage: 690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz: 70 kA
Overload release current setting: 56...80 A
Setting range of the instantaneous short-circuit release: 1000 A
Integrated earth fault protection: No
Connection type main circuit: Screw connection
Device type: Built-in device
Fixed installation technology
Suitable for top-hat rail mounting: Yes
Top-hat rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of connection for main circuit: Front
Actuator design: Toggle
Complete device with protection unit: Yes
Integrated motor-drive unit: No
Optional motor-drive unit: No
Protection class (IP): IP40
Further details: This is a compact ComPacT NSXm circuit-breaker, 80 A, 70 kA at 415 VAC, for all LV standard applications. It offers new functions such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring-type accessories that are externally visible. ComPacT NSXm is one of the smallest moulded case circuit breakers available on the market, measuring 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with an integrated thermo-magnetic tripping device. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.

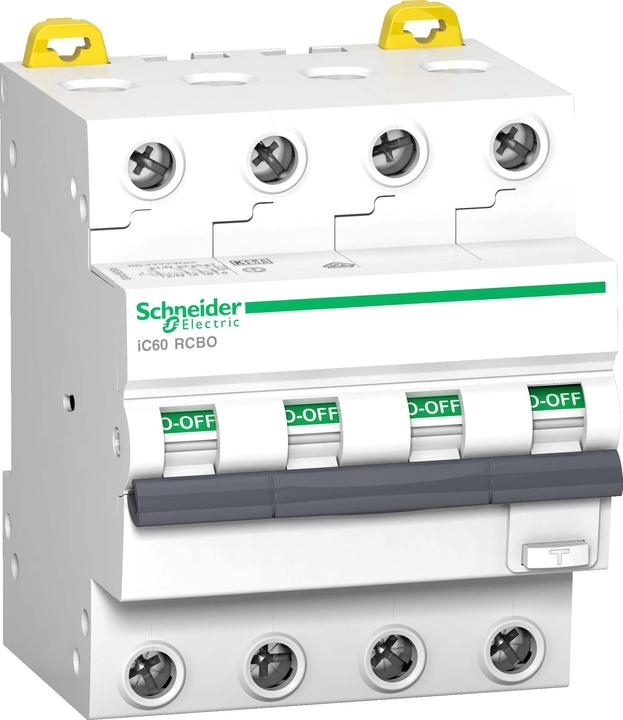

6. Schneider Electric FI/LC switch iC60N
The iC60N RCD/MCB from Schneider Electric is a highly advanced residual current circuit breaker that combines overcurrent protection and residual current protection in a single device. With a rated current of 16A and a ground fault sensitivity of 30mA, this breaker provides comprehensive protection for final circuits. It is designed for use in 4-pole applications and complies with the relevant standards according to IEC/EN 61009-1 and IEC/EN 60947-2. The thermomagnetic tripping unit ensures reliable and rapid response to overcurrents and earth faults. The breaker is equipped with a test button that allows for regular functional testing, and it offers a clear indication of the switching status through a green marking. Installation is tool-free, making it easy to set up. The iC60N RCD/MCB is an ideal solution for applications that require both safety and efficiency.
- Thermomagnetic tripping unit for reliable protection
- Test button for regular functional testing
- Mechanically isolated indication in case of fault tripping
- Tool-free installation for easy setup
- Additional attachable auxiliary modules for extended functions.

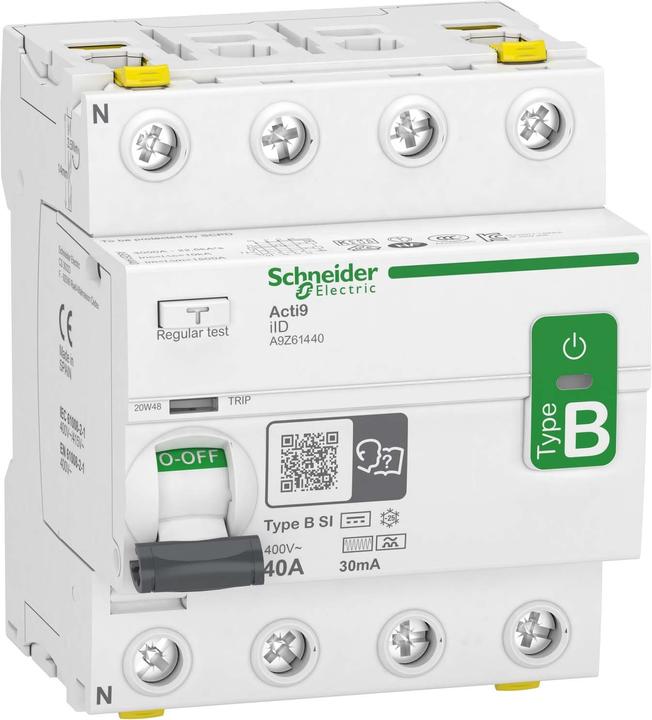

7. Schneider Electric Ground fault circuit interrupter
The residual current circuit breaker from Schneider Electric is a highly advanced residual current protection switch specifically designed for use in electric charging stations. With a rated current of 40 A and a rated residual current of 30 mA, this 4-pole switch provides reliable protection against electrical faults. It is designed for an operating voltage of 400 V and meets the requirements for use in alternating current applications. The switch is equipped with a mechanical fault indication that ensures clear visibility of tripping due to fault currents. Additionally, it features a safe contact indication that signals voltage-free status on the outgoing side. The residual current circuit breaker is suitable for mounting on a DIN rail and is characterized by high short-circuit resistance, making it a robust choice for various applications.
- All-current sensitive residual current protection switch for electric charging stations
- Mechanical fault indication for displaying trippings
- Safe contact indication for voltage-free status
- Suitable for DIN rail mounting
- High short-circuit resistance of 10 kA.

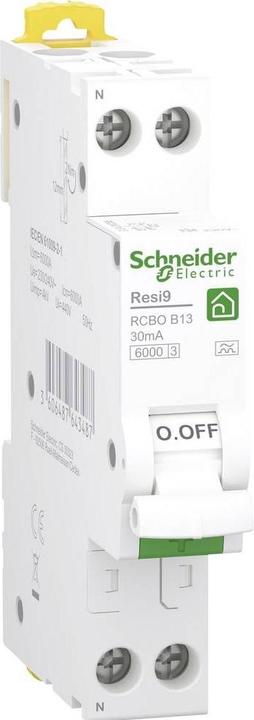

8. Schneider Electric R9DX01613 Fehlerstrom-Schutzschalter 13 A 0.03 A 230 V
Protect and renew your residential construction projects. As an addition to the Resi9 system, the Resi9 FI/LS switch "Compact" in 1 TE helps to protect your devices and electrical installations, making them safer. Its compact design optimizes space utilization, making it the perfect choice for renovation and residential construction projects.
The Resi9 FI/LS switch, Type A – 6,000 A, is a residual current protective switch with an integrated circuit breaker. The FI/LS switches ensure comprehensive protection of final circuits (short-circuit, overload, and fault currents) and are tested according to IEC/EN 61009-1 and IEC/EN 61009-2-1.
The protection includes:
- Protection of persons against direct contact (≤ 30 mA)
- Protection of installations against insulation faults (≤ 300 mA)
- Protection of installations against fire hazards (≤ 300 mA)
- Protection against overload and short-circuit
- Switching and disconnecting circuits.
Type A detects pure sinusoidal as well as pulsating DC fault currents and is required for the protection of circuits or individual household appliances such as washing machines or dryers.
Optimal residual current protection for persons and installations with our new compact Resi9 Type A FI-LS 1P+N 10A from Schneider Electric. This compact FI/LS 1TE (18mm) is used at a network frequency of 50Hz and an operating voltage of 230V AC, with a short-circuit capacity of 6kA at 230V AC according to EN/IEC 61009-2-1 standard.
The rated residual current is 30 mA, Type A, and trips at AC fault currents without saturating up to 6mA DC fault currents. It can be used at an operating temperature of -25°C to 60°C.
A mechanical red indicator shows the tripping of the circuit breaker, as well as a separate mechanical red indicator for the residual current tripping of the FI protective switch on the front of the device. The test button is marked with a "T." Pressing this button allows the functionality of the protective device to be tested.
Residual-current device
New
EUR96,94
Schneider Electric R9DX01613 Fehlerstrom-Schutzschalter 13 A 0.03 A 230 V
9. Schneider Electric SE 19071 Auxiliary switch ÃS+ÃS 220-240VAC 6A
The SE 19071 auxiliary switch from Schneider Electric is a versatile and reliable product specifically designed for use in electrical switchgear. With a rated voltage of 250 volts and a maximum operating current of 6 amperes, this auxiliary switch provides an effective solution for indicating the switching position of NG125 and FI-Block Vigi NG125. The integrable design allows for easy installation through side mounting, while the screw terminals ensure a secure and stable connection. The auxiliary switch is equipped with two changeover contacts, enabling precise control of the switching position. Thanks to its compact dimensions and multi-colored design, the auxiliary switch seamlessly integrates into various installations and meets the requirements of modern electrical systems.
- Two changeover contacts for precise switching position control
- Integrable design for easy installation
- Screw terminals for secure electrical connections
- Versatile use in switchgear and FI-Block Vigi NG125.
10. Schneider Electric SCHN moulded-case circuit-breaker
The ComPacT NSX250H is a complete, space- and tripping-performance optimized, fixed 4P3D compact circuit breaker. It is an optimal choice for all standard and special applications. The short-circuit breaking capacity (Icu) is 70 kA rms at 415 VAC 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. This product includes an electronic MicroLogic 7.2 E Vigi trip unit with a rated current of 160 A and an integrated adjustable residual current protection. The MicroLogic 7.2 E Vigi trip unit offers adjustable long-time, short-time, and instantaneous protection. MicroLogic 7.2 E Vigi features a built-in display for fine-tuning and monitoring energy. This 4-pole version (140 mm x 161 mm x 86 mm) comes with a variety of optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX250H is part of Schneider Electric's EcoStruxure Power architecture.
