Best selling Side-cutting pliers from Cimco
On this page you’ll find a ranking of the best Side-cutting pliers from Cimco. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Cimco VDE Cable cutter plastic 170 mm
1000 V plastic cable cutter made of impact-resistant, glass-fibre reinforced plastic with a two-component handle. The cutting inserts are made of special steel, suitable for flexible aluminum and copper conductors up to 15 mm in diameter. It offers very good cutting performance and a robust design, capable of being used at temperatures down to -40 °C.
Technical data:
- Protective insulation 1000 V: Yes
- VDE tested: Yes
- Design/operation: Mechanical, single-handed
- Suitable for max. cable diameter: 15 mm
- Max. cable cross-section: 50 mm²
- Suitable for stranded conductors: Yes
- Suitable for fine stranded conductors: Yes
- Suitable for solid conductors: Yes
- Suitable for steel wire braiding: No
- Total length: 170 mm
- Replaceable cutting head: No
- Replaceable cutting jaws: No
- With stripping function: No
- Insulated: Yes
- Handle design: 1-component
- With impact protection: No
- Weight: 138 g.
2. Cimco VDE Side cutter with facet
Cimco Tools Side Cutter 100526
Manufacturer: Cimco Tools
Description: Side Cutter
Type: 100526
Shape: Standard
Length: 160 mm
Cutting Length: 7 mm
Head Width: 28.5 mm
Head Height: 6 mm
With Stripping Function: No
Insulated: Yes
Protection Insulated 1000 V: Yes
ESD Tested: No
Handle Cover: Plastic Sleeves
Surface Protection: Chrome Plated
Surface Treatment: Other
VDE Tested: Yes
Cimco Tools Side Cutter 100526: Additional Details
VDE-tested heavy-duty side cutter safety pliers with 1,000 V protection insulation. The pliers from the Diamond Plus series comply with the current standards of IEC900, IEC 60 900, and VDE 0682/Part 201. These strict safety guidelines mandate 10 different quality tests for the insulation protection of the pliers. In addition to type testing, the independent testing body of VDE regularly conducts inspections of production and storage. The pliers are tested in a water bath at a test voltage of 10,000 V AC for breakthrough and flashover. This guarantees piece-tested safety. Optimized lever ratios, smooth operation, and ergonomically designed handles allow for power-saving and ergonomic work. They are made from the best high-alloy tool steels, fully oil-hardened, and all cutting edges are additionally inductively hardened. The surfaces are highly polished and meticulously chrome-plated.
Heavy-duty Side Cutter 160 mm.
3. Cimco Hydr.
Cimco Tools Hydraulic Cable Cutter 103004
Manufacturer: Cimco Tools
Designation: Hydraulic Cable Cutter CIMCUT 32 F
Type: 103004
Nominal Voltage: 18 V
Includes Charger: No
Weight without Battery Pack: 2.4 kg
Blade Diameter: 32 mm
Length: 456 mm
Width: 80 mm
Height: 116 mm
The hydraulic cable cutter is suitable for multi-, fine- and ultra-fine stranded CU/AL/(ACSR) conductors of classes 2/5/6 according to IEC60228 up to 32 mm in diameter. The cable cutter is powered by an 18V Makita battery. With its balanced weight distribution, the tool fits ergonomically in the hand, and the LED work light ensures good visibility of the cutting area.
Included in delivery:
- Hydraulic Cable Cutter CimCut 32 F
- Transport case.
4. Cimco Pipe cutter
CIMCO Pipe Cutter, 6-35
For hard and soft PVC pipes and cable ducts; also suitable for fiber-reinforced plastic and rubber hoses. The stability and cutting geometry of the blade ensure a burr-free and deformation-free, right-angled cut for both round and angular materials.
5. Cimco Side cutters
Cimco Tools Side Cutter 100574
Manufacturer: Cimco Tools
Designation: Side Cutter
Type: 100574
Form: Standard
Length: 160 mm
Cutting Length: 9.5 mm
Head Width: 27 mm
Head Height: 5 mm
With Stripping Function: No
Insulated: Yes
Protection Insulated 1000 V: Yes
ESD Tested: No
Grip Cover: Plastic Coatings
Surface Protection: Painted
Surface Treatment: Sandblasted
VDE Tested: Yes
The VDE-tested side cutter is a safety pliers with 1000 V protective insulation. The pliers from the Diamond Plus series comply with the current standards of IEC900, IEC 60 900, and VDE 0682/Part 201. These strict safety guidelines mandate ten different quality tests for the insulation protection of the pliers. In addition to type testing, the independent testing body of VDE regularly conducts inspections of manufacturing and storage.
The pliers are tested in a water bath at a test voltage of 10,000 V AC for breakthrough and flashover. This guarantees piece-tested safety. Optimized lever ratios, smooth operation, and ergonomically designed grips enable power-saving and ergonomic work. They are made from highly alloyed tool steels, fully oil-hardened, and all cutting edges are additionally inductively hardened. The surfaces are highly polished and intricately chrome-plated.
Length: 160 mm (6 inches)
EAN: 4021103005743.

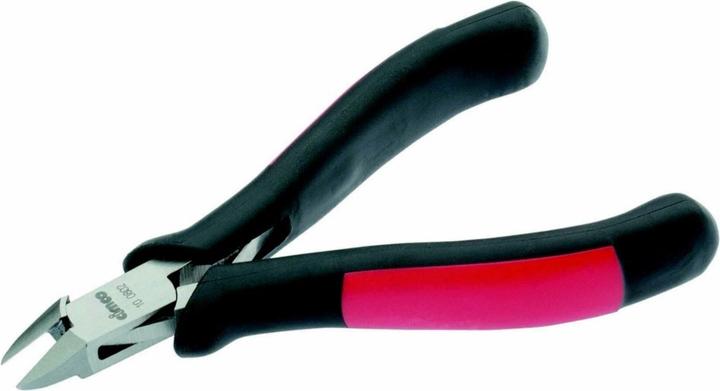

6. Cimco ESD side cutter with facet
Electronic side cutters with a box joint, die-forged high-precision version made of special steel, slightly self-opening due to double leaf springs.

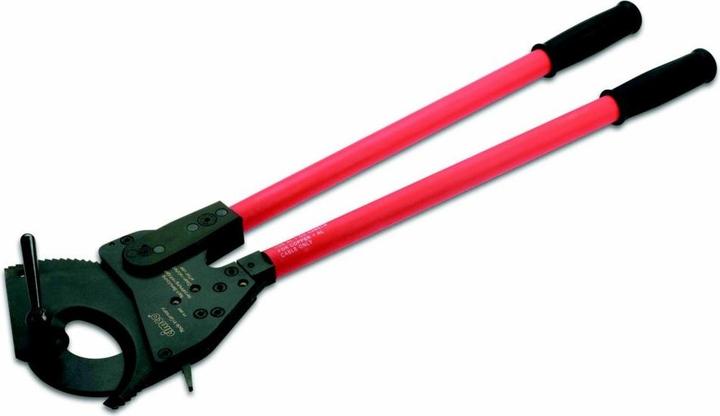

7. Cimco Cable cutter Ratchet Cable diameter up to 100 mm
Cable cutter with maximum cutting power, capable of cutting cables with steel strip reinforcement or lead sheathing. Features a ratchet drive and pawl, with handles designed for hand protection.
Technical data:
- Protective insulation 1000 V: no
- VDE tested: no
- Design/operation: mechanical two-hand
- Suitable for maximum cable diameter: 100
- Maximum cable cross-section: -
- Suitable for stranded conductors: -
- Suitable for fine stranded conductors: -
- Suitable for solid conductors: yes
- Suitable for steel wire braiding: yes
- Total length: -
- Replaceable cutting head: no
- Replaceable cutting jaws: -
- With stripping function: -
- Insulated: yes
- Handle design: 1-component
- With impact protection: -
- Weight: 6.2 kg
Attention: Product image
Item number: CIM120172
Shop number: 122272.
8. Cimco Ratchet cable shears Ø 32 mm
Cable cutter with ratchet drive, designed for single-handed operation due to optimum lever transmission and step-by-step cutting. It features a release option in every cutting position. All parts are made of high-strength special steel, with cutting edges and stressed parts hardened or tempered. The cutter has a burnished surface and ergonomically shaped soft handles, suitable for copper and aluminium cables, including single and multiple conductors up to 32 mm in diameter.
Technical data:
- Protective insulation 1000 V: no
- VDE tested: no
- Design/actuation: mechanical ratchet design
- Suitable for max. cable diameter: 32 mm
- Max. cable cross-section: 150 mm²
- Suitable for stranded conductors: yes
- Suitable for fine stranded conductors: yes
- Suitable for solid conductors: yes
- Suitable for steel wire braiding: no
- Total length: 250 mm
- Replaceable cutting head: no
- Replaceable cutting jaws: no
- With stripping function: no
- Insulated: yes
- Handle design: 1-component
- With impact protection: no
- Weight: 600 g
Attention: Product image
Item number: CIM120180.

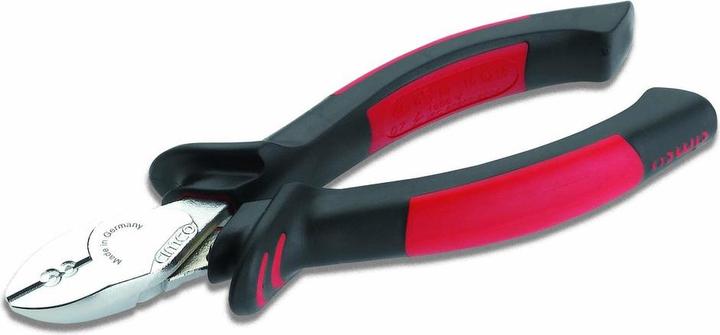

9. Cimco VDE Wire stripper side cutter
Used connection with inductively hardened precision blade (approx. 64 HRC) for hard, medium-hard, and soft wires, additionally equipped with two stripping stations for rigid and flexible conductors of 1.5 mm² and 2.5 mm².
10. Cimco End cutter 200 mm 100402
The Cimco front cutter 200 mm 100402 is a high-quality power front cutter specifically designed for precise cutting tasks. With a cutting hardness of approximately 64 HRC and a robust construction made of electrical steel, this tool offers excellent performance and durability. The front cutter meets the DIN ISO 5748 standard and is suitable for use with various types of wire, including piano wire. The inductively hardened precision cutting edge ensures clean cuts and high efficiency during work. Additionally, the tool is equipped with ESD protection, making it ideal for use in sensitive electronic environments. The chrome-plated surface contributes to corrosion resistance and ensures a long lifespan for the tool.
- Inductively hardened precision cutting edge with 64 HRC for high cutting performance
- Meets DIN ISO 5748 standard for professional applications
- ESD-safe, ideal for use in electronic environments
- Chrome-plated surface for additional corrosion protection.
