Best selling Vices + Clamps from Proxxon
On this page you’ll find a ranking of the best Vices + Clamps from Proxxon. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

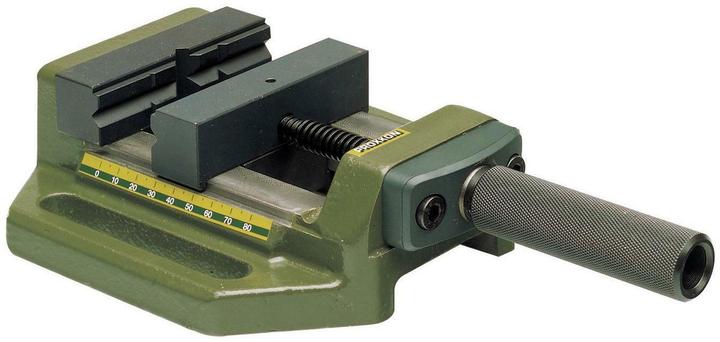

1. Proxxon Machine vice PRIMUS 100
Proxxon Drilling Device BV 2000
Smooth operation with precise jaw guidance.
- Base body made of special cast iron with CNC-machined guides
- Replaceable clamping jaws
- Planed support surface
- Spindles with rolled trapezoidal threads for smooth operation even under high axial loads
Technical Data
- Jaw width 100 mm
- Clamping range 75 mm
- Distance from center of elongated hole to center of elongated hole 135 mm
- Elongated holes 105 x 15 mm
- Weight 5.0 kg
- Article number: 20 402
Proxxon Tools
The company is a leading manufacturer of the Micromot system. The high-quality electric fine tools are designed for model makers, precision engineering companies, mold makers, and many more. All machines for fine work. Precise, quiet, and vibration-free. Suitable for use over hours. Quality that can be seen and felt. For people who are close to technology.
2. Proxxon Universal holder
20 mm system fitting for Micromot drilling and milling machines such as FBS 240/E, FBS 12/EF, IBS/E, LBS/E, MICROMOT 50, 50/E, and 50/EF. Made of zinc die-cast. With a clamp for quick and secure attachment to workbenches and tabletops up to 60 mm thick. Alternatively, it can also be fixed to any workstation with two standard screws. The industrial drill grinder IBS/E is not included in the delivery.
3. Proxxon Machine vice MS 4
The Proxxon MS 4 machine vise is a small and compact holder for workpieces on machine tables. Its compact design makes it particularly suitable for small to very small workpieces. The surfaces made of zinc die-cast are precisely machined, ensuring excellent support for the workpiece and optimal precision. A groove is located on the underside of the vise, allowing it to be easily and quickly fixed to the TBM220 bench drill and the MB 140/S drill stand. For clamping round materials such as small pipes or round bars, a V-groove is milled into the clamping jaw to prevent slipping. The clamping force of the machine vise can be adjusted very precisely using the yellow knob.
4. Proxxon Precision mechanic vice FMZ
Quick and secure attachment to workbenches and tabletops up to a maximum thickness of 60 mm. Alternatively, it can be fixed to any work surface with two standard screws. The clamping ball joint is rotatable and pivotable in all directions (including downwards). The jaws are equipped with a protective coating for delicate workpieces.
5. Proxxon Fms 75
The PROXXON FMS 75 precision mechanic's vise features a strong lever suction foot for quick use on any smooth surface. Thanks to a lockable ball joint, it can be rotated and tilted in all directions (including downwards). The vise has 75 mm jaws with a protective coating for particularly delicate workpieces.
- Clamping range: 70 mm
- Weight: 1.6 kg
- With strong lever suction foot
- Rotatable and tiltable in all directions
- Clamping range: 70 mm.
6. Proxxon Precision vice PM40
This machine vise is particularly suitable for delicate and precise work in conjunction with the micro milling machine MF 70.
7. Proxxon Maschinenschraubstock PM 60
Precision machine clamp PM 60: Jaw width 60 mm, clamping width 42 mm, total length 100 mm.

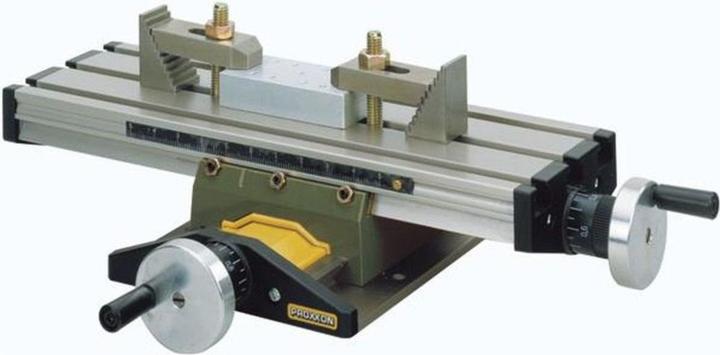

8. Proxxon Cross table KT 230
As described for the fine milling machine FF 230 (without milling head, without column). With a 34 mm bore for the column of the drilling and milling unit PF 230 (the 35 mm column is turned down to 34 mm for final fitting).
