1. Bosch Home & Garden PBD 40

The electronic display in the digital display allows for precise and demand-oriented speed adjustment, while the Bosch Constant Electronic ensures a constant speed. The innovative digital display makes it easy to read the exact drilling depth, allowing for straightforward drilling in line, for example in timber construction. It features a 2-speed gearbox: high power in the first gear and high speed in the second gear. The power consumption is 710 W, with a maximum drilling diameter in steel of 13 mm and a maximum drilling diameter in wood of 40 mm. more

Bench drills

EUR259,65

Bosch Home & Garden PBD 40

164

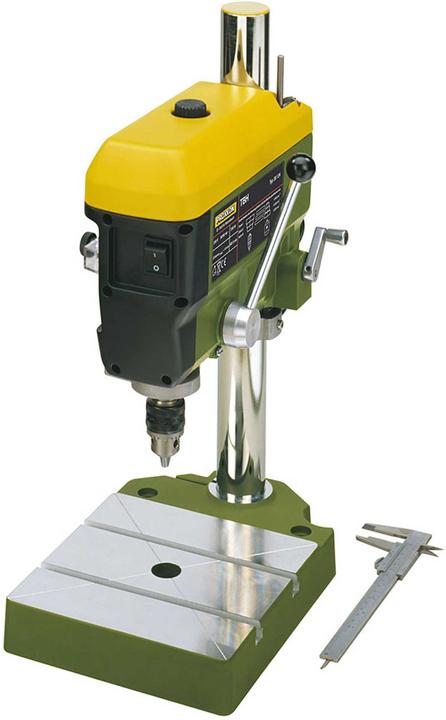

2. Proxxon Bench drill machine

Powerful, long-life DC motor. Spindle drive via a three-fold belt pulley with the advantage of almost six-fold torque in the lower speed range. Practical drilling depth display with adjustable stop. Precision bearing mounted drilling spindle. Spindle head with 1/2" thread for the corresponding gear drill chuck (industrial quality). Spindle with additional holder for steel collets No. 28 200. Also ideal for coordinate drilling with the cross table KT 150. Technical data: 230 volts. Spindle speeds 1,080, 2,400, and 4,500 per minute. Sleeve stroke 63 mm. Height adjustment via crank 70 mm. Projection 140 mm. Usable table surface 200 x 200 mm. Column 45 x 500 mm. Tool holder up to 10 mm. Drilling capacity in steel 10 mm. Weight approximately 10 kg. more

Bench drills

EUR394,26

Proxxon Bench drill machine

18

3. Proxxon Table drilling machine TBM 220

Solid steel column (20 x 340 mm). Boom made of die-cast aluminium with spidered guides and fits. High-quality, VDE-tested electric motor, extremely quiet and very durable. Drive via 3-fold belt pulley. Folding the flat belt results in 3 idle speeds with more than 3 times the torque in the lower speed range. Practical drilling depth indicator with adjustable stop. more

Bench drills

EUR164,99

Proxxon Table drilling machine TBM 220

17

4. Einhell Tc-Bd 350

The Einhell TC-BD 350 pillar drill is a powerful all-rounder for the workshop and home tool needs. Accurate drilling is no longer a problem: the three-arm drill lever ensures perfect pressure control at all times, and the adjustable depth stop allows for precise drilling. The stable base construction provides a secure stand for the device. The Einhell TC-BD 350 operates with a powerful 350 watts and a spindle speed ranging from 580 to 2,650 revolutions per minute, adjustable in five stages. The drill table can be tilted and swiveled up to 45 degrees for a variety of drilling angles. The height of the drill table is infinitely adjustable and tool-free. With a B16 chuck, the pillar drill can handle drill diameters from 1.5 millimeters to 13 millimeters, achieving a drilling depth of up to 50 millimeters in the desired material. A foldable chip guard ensures safe drilling. The on/off switch with a zero-voltage release serves as a restart protection. The ball-bearing drill spindle is designed for long-lasting operation. more

Bench drills

EUR149,–

Einhell Tc-Bd 350

43

5. Holzmann SB162VN

Vario gearbox. Extendable work table. Variable speed with LCD display. Solid base plate for good stability. Aluminium motor according to IP54. Rigid drill column with ground surface. Rotatable drilling table with toothed rack, height adjustable as required. Practical three-arm lever with drilling depth scaling. Fold-away quick-action chuck cover made of Plexiglas. Drilling depth stop. more

Bench drills

EUR359,63

Holzmann SB162VN

11

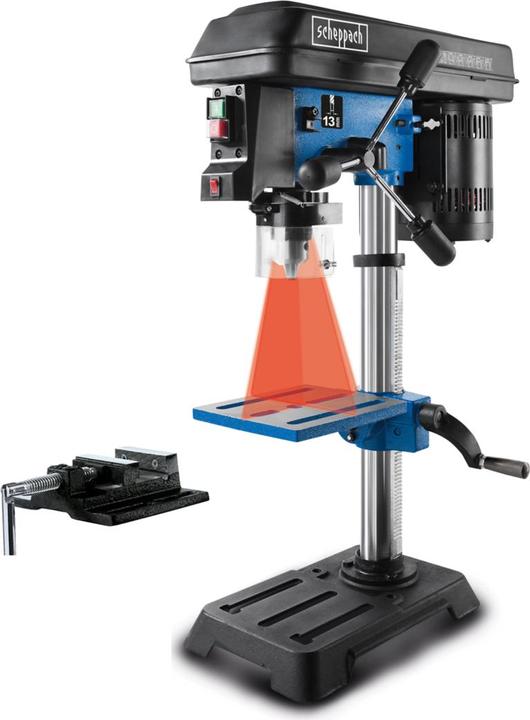

6. Scheppach DP16VLS Drilling machine 230-240V 50Hz 500W

The Scheppach DP16VLS bench drill features a position laser for precise drilling results. Whether in metal, plastics, or hard and soft woods, it offers versatile applications. more

Bench drills

EUR147,39

Scheppach DP16VLS Drilling machine 230-240V 50Hz 500W

33

7. Scheppach DP19Vario

The DP19VARIO bench drill from Scheppach is a versatile all-rounder for workshops and home use. With its tool-free adjustable speed, displayed on a digital speed indicator, the bench drill can be optimally set for various materials. The stepless speed regulation from 440 to 2580 RPM allows for the processing of wood, metal, and common plastics. The standard quick-release drill chuck and the chuck clamping range of 1.5 to 13 mm provide maximum flexibility. The robust cast iron construction ensures stability, while the powerful 550-watt motor can also handle larger workpieces. The table is infinitely adjustable and can be tilted 45 degrees. The quick-release drill chuck allows for easy tool changes without the need for an additional chuck key. The integrated laser assists in the precise alignment of the drill hole, while the foldable shield prevents excessive spreading of drill shavings. Included in the delivery is 1x Scheppach DP19VARIO with laser, including a quick-release drill chuck of 1 to 16 mm. more

Bench drills

EUR337,23

Scheppach DP19Vario

29

8. Einhell TE-BD 550 E

The Einhell column drill TE-BD 550 E is a precision tool designed for high demands. It allows for precise drilling of holes in workpieces made from various materials such as wood or metal, with a maximum drilling depth of up to 60 mm. The user always has a clear view thanks to the LCD display showing the current speed. The stepless speed control can be adjusted without tools. The high-quality quick-change drill chuck easily accommodates the desired drill bit with a diameter of 0-13 mm. A smooth and quiet operation is ensured by the induction motor. The drill table is height-adjustable, tiltable, and rotatable to ensure optimal workflow. For added user safety, there is a foldable chip guard with a microswitch. The depth stop is adjustable to enable precise drilling in series. The ball-bearing drill spindle ensures a long-lasting operation of the column drill. Stepless and tool-free speed regulation, easily adjustable. more

Bench drills

EUR254,14

Einhell TE-BD 550 E

5

9. Scheppach Bench drill DP16SL

Scheppach DP16SL Table Drill 3-16 mm 4906807901 Table drilling machine from Scheppach, including laser. The DP16SL features a laser that further enhances the precision of the drill. Professional results are guaranteed with the DP16SL.

Special features:
- Standard with drill chuck
- Five speeds from 600 to 2600 RPM for wood, metal, and all types of plastics
- Robust welded steel construction for long durability
- Powerful 550-watt motor
- Includes laser for high-precision work

Technical specifications:
- Net weight: 25 kg
- Integrated cooling: No
- Digital hole size display: No
- Digital speed display: No
- Chuck clamping range: 3 - 16 mm
- Height: 732 mm
- Distance spindle - base plate: 405 mm
- Distance spindle - table: 305 mm
- Length: 235 mm
- Length of contact surface: 194 mm
- Cable length: 1.83 m
- Max. drilling diameter: 16 mm
- Nominal power consumption: 550 W
- Rotatable: -45 - 45 °
- Speed: 510 - 2430 RPM
- Continuously adjustable: No
- Suitable for metal: Yes
- Suitable for wood: Yes
- Total height: 732 mm
- Type of table: Drill chuck
- Version: B16
- System type: Quick-release
- Voltage: 230 V
- Width: 482 mm
- Width of contact surface: 165 mm
- Including chassis: No
- With digital display: No

Scope of delivery: Workpiece clamp in the box. more

Bench drills

EUR340,74

Scheppach Bench drill DP16SL

15

10. Einhell TE-BD 750 E

The Einhell column drill TE-BD 750 E is a powerful and precise tool that should not be missing from any workshop. With a maximum power of 750 watts, the spindle speed can be adjusted from 450 to 2,500 revolutions per minute. The speed is infinitely adjustable, without the need for tools. An LCD display provides information about the current speed. The quiet-running and low-noise induction motor ensures comfortable working conditions. The quick-change drill chuck can accommodate drill sizes from 1 to 16 millimeters, compatible with all common drill sizes. Additionally, the Einhell column drill TE-BD 750 E is equipped with an MK2 holder for Morse taper drills. Optimal conditions for all desired drilling operations are provided by the height-adjustable, tiltable, and rotatable drill table, which is equipped with an extension. An LED light ensures optimal illumination of the drill table. The ball-bearing drill spindle guarantees long-lasting operation. Additional safety features include an emergency stop switch and a safety spindle guard. The reach is 152 millimeters, and the maximum drilling depth is 80 millimeters. more

Bench drills

EUR385,–

Einhell TE-BD 750 E

18
