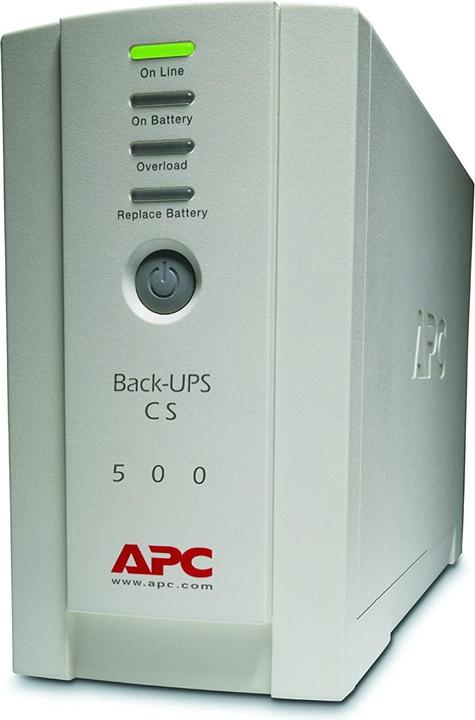

APC Back-UPS 500

500 VA, 300 W, Standby UPS
16Ratings
BrandMore from APC
Currently out of stock
Free shipping starting at 30,–

Product details

Battery-supported and surge-protected outputs, integrated protection for telephone, fax, and modem lines, software for secure system shutdown with advanced power management features, and proactive audio-visual alerts protect office systems and valuable data from surges, voltage spikes, and power outages. The Back-UPS CS 500 can be connected via USB or a serial interface, allowing for quick and convenient installation. Maintenance is also user-friendly, as the battery can be replaced during operation. With these features, the Back-UPS CS 500 offers ideal protection for your office and home office systems.

Key specifications

Model
Desktop
Scope of application
Workplace + home use
Plug type
C13, IEC Jumpers
Battery type
Lead–acid battery
Operating time at full load
2.40 min
Documents
Note.pdf, Technical data sheet.pdf

General information

Item number
206971
Manufacturer
APC
Category
UPS
Manufacturer no.
DUPLIKAT
Release date
10.7.2003

UPS properties

UPS type
Standby UPS
Power output
300 W
Output power capacity
500 VA
Model
Desktop
shaft type
Sine wave

UPS functions

UPS protection functions
Frequency change protection, Overvoltage protection, Protection for Modem/Fax/DSL, Undervoltage protection

Application range

Scope of application
Workplace + home use

Connector plug

Plug type
C13, IEC Jumpers

Connections

USB ports
USB-A

Mains supply properties

Input voltage
180 - 266 V
output voltage
230 V
Max. input current
7 A
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
overvoltage protection
310 J

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0% - 95%
Max. noise level
40 dB
Protection type (IP code)
IP20

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Battery weight per cell
2500 g
Voltage
12 V
Capacity
7 Ah
Charging time
8 h
Operating time at full load
2.40 min
Operating time at half load
13.90 min

Sustainability

Manufacturer commitment
SBTi

Scope of delivery

Scope of delivery
CD-ROM, IEC power cable 1.2m, IEC power cable 1.8m, Manual CD, Telephone wires, USB cable, Warranty card
Items per sales unit
1x

Product dimensions

Height
91 mm
Weight
6.32 kg
Width
165 mm
Length
284 mm

Legal Notice

Product Safety

Package dimensions

Length
41.50 cm
Width
19 cm
Height
24 cm
Weight
6.75 kg
