Schneider Electric (APC) Rail BVS240XDPDR

Manufacturer: Schneider Electric (APC)
Designation: Rail 240VA
Type: BVS240XDPDR
Type of supply voltage: DC

1. Output voltage at AC: 0 V
2. Output voltage at AC: 0 V
3. Output voltage at AC: 0 V
1. Output voltage at DC: 24 V
2. Output voltage at DC: 0 V
3. Output voltage at DC: 0 V

Max. output current 1: 10 A
Max. output current 2: 0 A
Max. output current 3: 0 A
Adjustable output voltage: no
Short-circuit proof: yes
Rated supply voltage at AC 50 Hz: 0 V
Rated supply voltage at AC 60 Hz: 0 V
Rated supply voltage at DC: 24 V
Regulated output voltage: yes
Power consumption: 240 VA
Power output: 240 W
Stabilized: yes
Type of electrical connection: screw connection

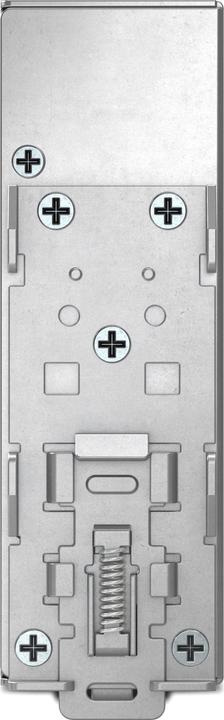

DIN rail mounting possible: yes
Wall mounting possible: no
Suitable for rack mounting: yes
Installation height: 128.5 mm
Direct mounting possible: no
Width: 123.8 mm
Height: 128.5 mm
Depth: 40 mm
Suitable for safety functions: yes
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Protection class (IP): IP20
Protection class (NEMA): other

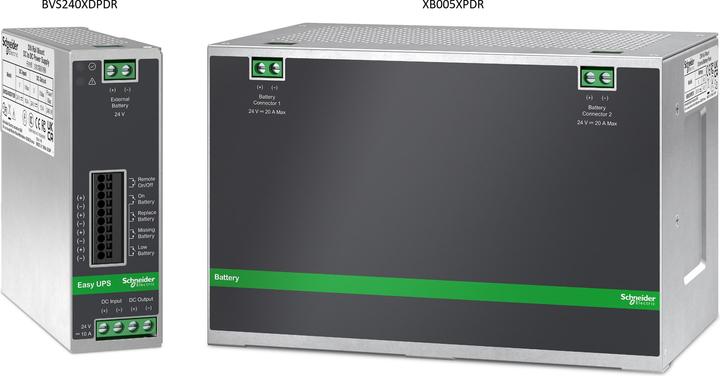

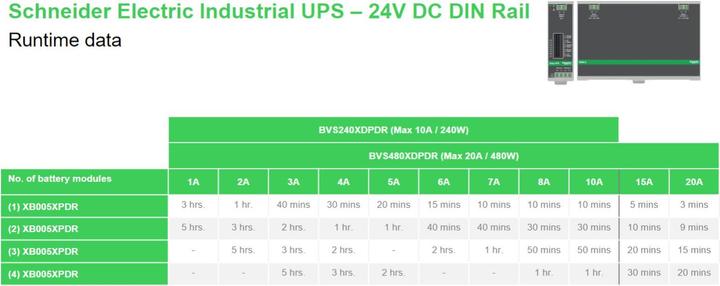

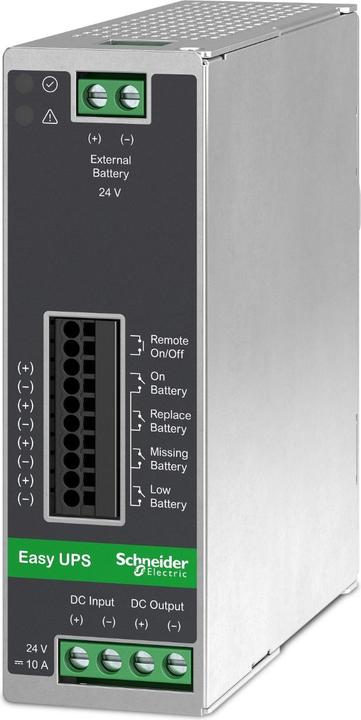

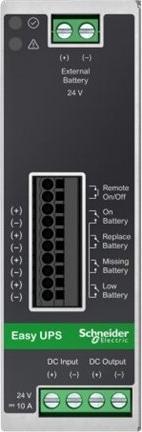

The industrial UPS 24V DC DIN rail is part of Schneider Electric's Easy UPS family. This model is a 240W UPS with DC input and output designed to support industrial systems. It features 0-5V signal relay contacts, support for up to 4 external batteries, LED indicators, and an EPO switch for better control over the industrial control infrastructure.
