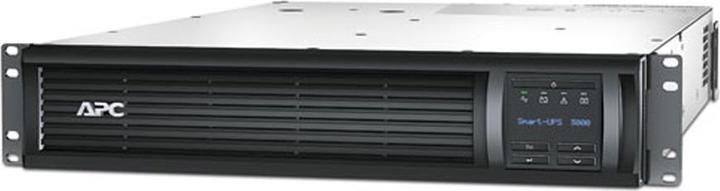

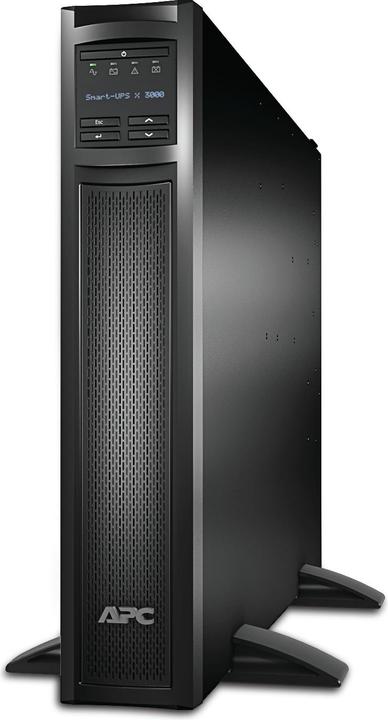

APC Smart-UPS X
3000 VA, 2700 W, Line-interactive UPSOnly 1 item in stock at supplier
Product details
Includes a CD with software, documentation CD, rack mounting brackets, Smart UPS signaling RS-232 cable, USB cable, and user manual. Periodic battery self-test ensures early detection of a battery that needs to be replaced. Automatically starts up the connected equipment upon the return of utility power.
Provides higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). Maximizes battery performance, life, and reliability through intelligent, precision charging. Protects connected loads from surges, spikes, lightning, and other power disturbances. Warns when a battery is not available to provide backup power.
Operating time at full load | 6.30 min |
Model | 19" rack |
Scope of application | Network cabinet, Server room |

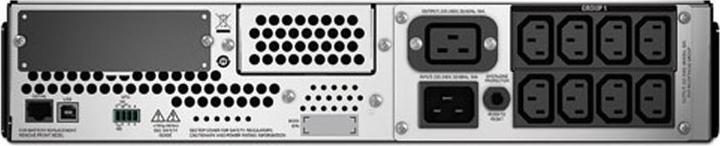

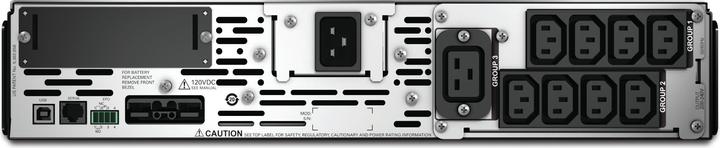

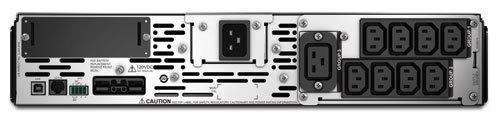

Plug type | C13, C19, IEC Jumpers |
Documents | |
Item number | 454010 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | SMX3000RMHV2U |
Release date | 24.7.2013 |
Sales rank in Category UPS | 41 of 1743 |
External links |
UPS type | Line-interactive UPS |
Power output | 2700 W |
Output power capacity | 3000 VA |
Model | 19" rack |
Rack Unit | 2U |
shaft type | Sine wave |
UPS protection functions | Frequency change protection, Overvoltage protection, Undervoltage protection |
Scope of application | Network cabinet, Server room |
Plug type | C13, C19, IEC Jumpers |
Connections | SmartSlot |
USB ports | USB-A |
Data ports | RS-232 (1x) |
input voltage | 140 - 280 V |
output voltage | 220 - 240 V |
Input frequency | 50 - 60 Hz |
Output frequency | 47 / 63 Hz |
overvoltage protection | 645 J |
Efficiency full load | 98.50 % |
Efficiency battery operation | 98.50 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 55 dB |
Battery category | Device batteries |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Voltage | 240 V |
Capacity | 738 Ah |
Charging time | 3 h |

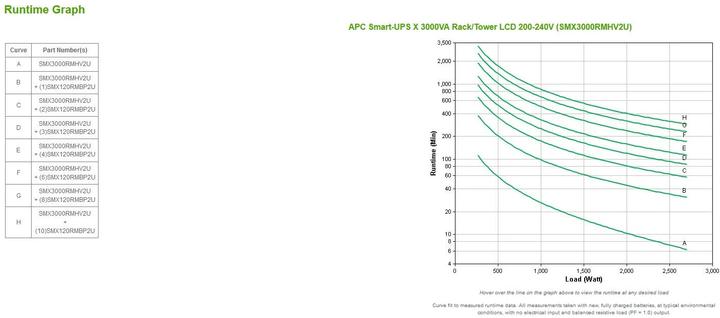

Operating time at full load | 6.30 min |
Operating time at half load | 15.70 min |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | CD-ROM, Intelligent RS-232 cable, Manual, Manual CD, Rack mount kit, USB cable |
Items per sales unit | 1 x |
Height | 85 mm |
Weight | 37.32 kg |
Width | 432 mm |
Length | 667 mm |
Length | 87 cm |
Width | 60.50 cm |
Height | 23.70 cm |
Weight | 46.34 kg |
